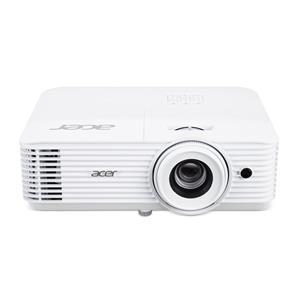

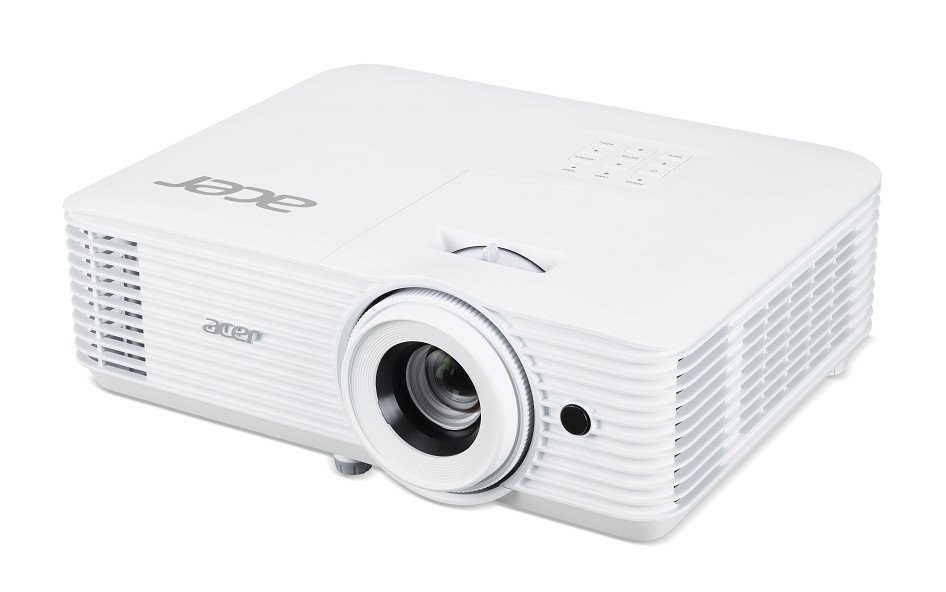

H6815ATV, Android TV, DLP, 4K UHD (3840x2160), 4000 ANSI, 10 000:1, 2x HDMI, Repro 1x10W, 3.1Kg, ColorBoost II+, ColorSafe II, HDR 10 comp., životnost lampy 5000h, SMART ANDROID WiFi DONGLE



Model name H6815ATV

Display panel 0.47" UHD DMD

Resolution 4K UHD (3,840 x 2,160) resolution with TI XPR, 8.3 megapixel on screen

Brightness 4,000 ANSI Lumens (Standard), 3,200 ANSI Lumens (ECO), (Compliant with ISO 21118 standard)

Aspect ratio 16:9 (Native), 4:3 (Supported)

Throw ratio 1.5~1.66 (100"@3.32m)

Zoom ratio 1.1X

Contrast ratio 10,000:1

Lamp life 5,000 Hours (Standard), 10,000 Hours (ECO), 12,000 Hours (ExtremeEco)

Projection lens F =1.98(wide) ~ 2.02(tele), f = 15.843mm ~ 17.44mm, Manual Zoom & Focus

Keystone +/-30° (Vertical, Manual, Auto), +/-30° (Horizontal, Manual), 4-Corner adjustment

Noise Level 26 dBA (ECO)
Audio 10W x 1

Input interface Analog RGB/Component Video (D-sub) x 1, HDMI 2.0 (Video, Audio, HDCP 2.2) x 2, PC Audio (Stereo mini jack) x 1

Output interface PC Audio (Stereo mini jack) x 1, DC Out (5V/1.5A, USB Type A) x 1, SPDIF Audio (Optical) x 1

Control interface USB (Type A, share output port) x 1, RS232 (D-sub) x 1

Smart Specifications Amlogic S905Y2, AndroidTV V10.0, ARM Quad-Core 64-bit Cortex-A53, Mali-G31 MP2 GPU 850MHz, 2G RAM DDR3, 8GB eMMC (Flash), 802.11a/b/g/n/ac 2.4GHz/5GHz

Dimension 313 x 240 x 113.7 mm (w/ feet) (12.3" x 9.4" x 4.4")

Weight 3.1 Kg (6.83 lbs)
