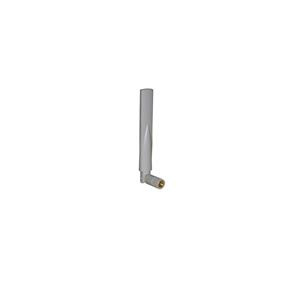

Aruba indoor AP antenna AP-ANT-1W
2.4-2.5GHz/5GHz, 5.0dBi tri-band, omnidirectional antenna
With an articulating mount this antenna provides flexibility in deployment and direct connection to HPE Aruba Networking access points with an onboard RP-SMA connector. These antennas are the preferred choice for multi-purpose service deployment or wireless intrusion prevention (WIP).

FREQUENCY/MAX GAIN • 2.4-2.5 GHz (3.8 dBi) • 4.9-5.875 GHz (5.8 dBi)

POLARIZATION • Linear, vertical. Omnidirectional patterns at all frequencies with increased gain in mid and upper 5 GHz bands

BEAMWIDTH • 2.4-2.5 GHz- E-Plane: 50 degrees- H-Plane: 360 degrees • 4.9-5.875 GHz- E-Plane: 25 degrees- H-Plane 360: degrees

IMPEDANCE • 50 ohms

MAXIMUM INPUT POWER • 2 watts

VSWR (MINIMUM PERFORMANCE) • < 2.0:1

DIMENSIONS (INCHES/CENTIMETERS) • 0.75” (1.9 cm) x 1.54” (3.9 cm) x 5.00” (12.7 cm)

HOUSING • ABS, UV resistant

FLY CABLE LENGTH/CONNECTOR • Articulating mount with built-in RP-SMA

OPERATING/STORAGE TEMPERATURE • -10° C to +55° C (+14° F to +131° F)

INSTALLATION HARDWARE • N/A – antenna mounts directly to an Aruba AP
