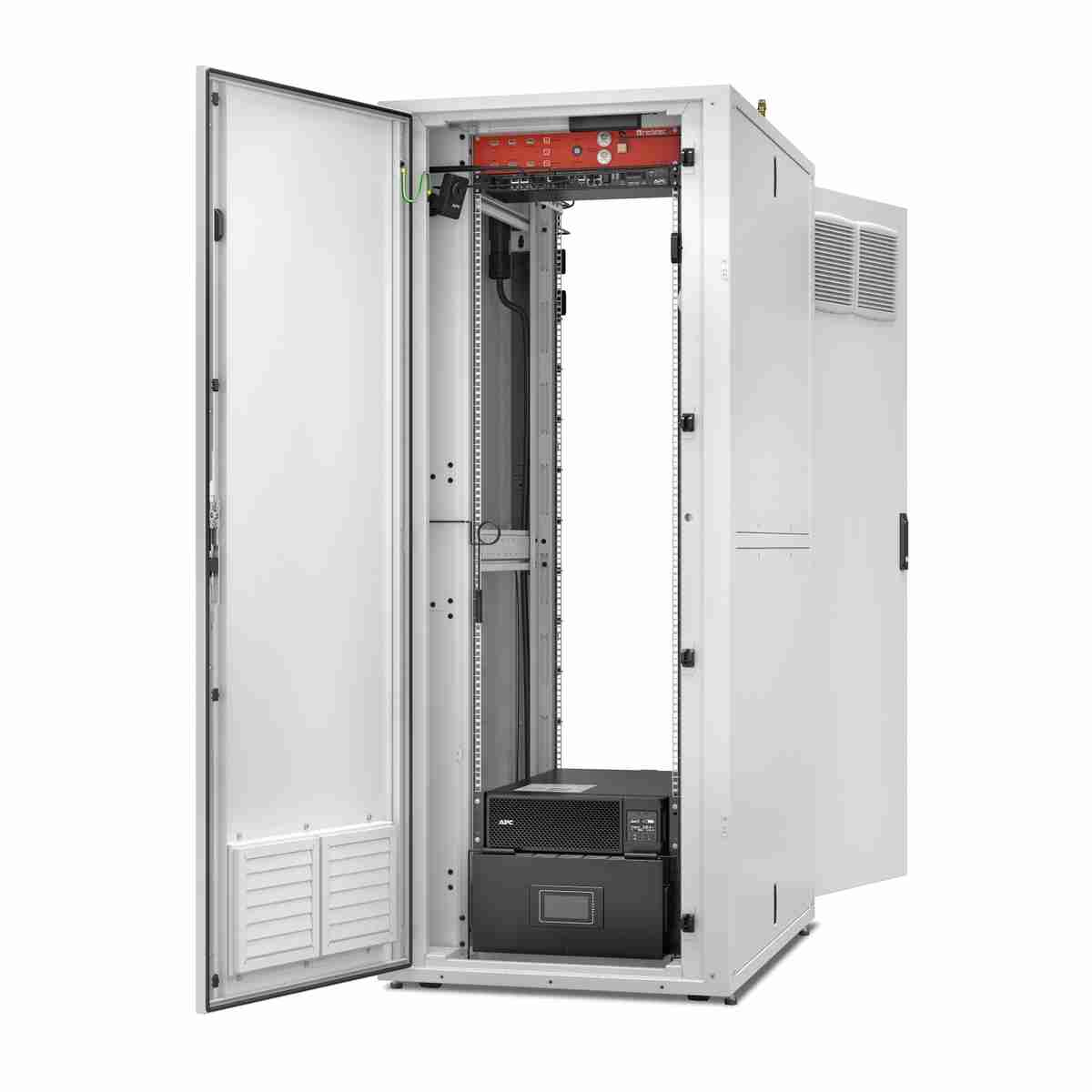

A complete Ecostruxure Micro Data Center solution for the deployment of Industrial Edge applications. Simple-to-deploy, simple-to-manage - fine-tuned for industrial use and commercial applications which require dust and water protection.

výška 2006 mm
šířka 800 mm
hloubka 1220 mm
počet jednotek rámů 42U
available rack space 31
hmotnost přístroje 397 kg


ENCLOSURE AR5340F + Shock Packaging Falcon MDC NEMA 12/IP54 Enclosure, Ventilation

UPS SRT5KRMXLI APC Smart-UPS SRT 5KVA RM 230V

rPDU AP8858 Rack PDU 2G, Metered, ZeroU,16A, 100-240V, (18) C13 & (2) C19
AP9870 Power Cord, C13 to C14, 2.5m
AP9877 Power Cord, C19 to C20, 2.0m

SECURITY NBRK0750 Net Botz 750
NBPD0165 NB Camera Pod 165
AP9335TH APC Temperature & Humidity Sensor
NBES0303 NetBotz Door Switch Sensors (2) for an APC Rack - 12 ft.
NBES0301 NetBotz Spot Fluid Sensor - 15 ft.

COOLING ACRMD4KI-1 3.5kW SPLIT SYSTEM INDOOR UNIT, GRAVITY DRAIN
ACRMD4KI-3 3.5kW SPLIT SYSTEM OUTDOOR UNIT, PRE-CHARGED REFRIGERANT
3rd Party CONDENSATE PUMP
ACAC10054 TOP INSTALLATION PIPING KIT
ACAC10045 USER DISPLAY

MISC. NSYLAMLD Multi-fixing LED lamp without socket
AR7540 Toolless Cable Management Rings (Qty 10)
INNUC0119 Ecostruxure IT Gateway
INNUC0119 EcoStruxure IT Expert 1 Year Digital 5 node Subscription
FS108NA NETGEAR Switch w/ RJ45 Cable

FIRE SUPPRESSION Redetec PN/RED/3.0/IP Redetec with Point detectors: FK-5-1-12** suppression for 3.0m3 w/ IP Module - Remote Monitoring, SMTP, SNMP, Email Alerts (Factory fit)
OP/RED/RD Remote Detection, 2 x Smoke detectors c/w 1.5M leads (Retro fit)
OP/RED/RS Redetec adjustable Rack-Mount Rail System 600-1000
