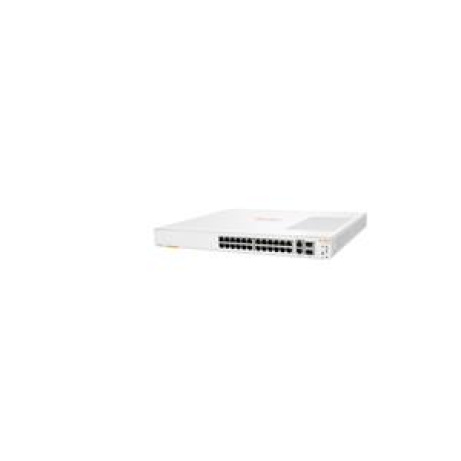

HPE Networking Instant On Switch 24p Gigabit 2p 10GBT 2p SFP+ 1960
Aruba Instant On 1960 Switches are advanced, smart-managed, fixed configuration Gigabit stackable switches designed for small and growing businesses that are easy to deploy and affordable. These switches are designed to scale as business grows, making adding more employees, devices and applications simple. Aruba Instant On 1960 switches are made to handle today’s bandwidth-heavy applications like voice and video conferencing, enabling consistent connectivity to improve user experience and application performance. These switches come with flexible management option: local web GUI or Instant On mobile app and cloud-based web portal.

What's New
Simplify network management by stacking up to (four) 4 Aruba Instant On 1960 switches and managing them through one single IP address. Stacking supported via local and cloud-managed stacking modes.
Smart-managed layer 2+ Ethernet access switch series ready to deploy in 12-port, 24-port, and 48-port for non-PoE and PoE (supports Class 4 and Class 6 PoE) models.
The Aruba 1960 aggregation switch comes with twelve (12) 10GBase-T and four (4) SFP+ ports, providing 10G connectivity to servers, network storage devices and access switches alike.
For environments with heavy bandwidth needs, 10GBase-T and SFP+ uplink ports deliver lightning-fast network speeds and nearly eliminates traffic bottlenecks.
Aruba Instant On mobile app and/or cloud-based web portal for easy network management onsite or remotely.
Limited Lifetime Warranty.

DifferentiatorHigh performance, smart-managed stackable switch designed for small and growing businesses, fast and easy set-up and security you can trust.
Stacks up to four 1960 switches at 1G and 10G speeds and enables management through a single IP address, simplifying network operations, supporting both local and cloud-managed stacking.
Using either local web GUI, Instant On mobile app or cloud-based
web portal, you can quickly set up, monitor and manage the
switches from anywhere at anytime.

Power consumptionMaximum:
100-127V: 60W
200-220V: 80W
Idle:
100-127V: 30W
200-220V: 40W

Input voltage100 - 240 VAC

Ports24 RJ-45 10/100/1000 ports, 2 SFP+ 10GbE ports, 2 10GBASE-T ports

Switching capacity128 Gbps

Stacking capabilities4H height

Throughput95 Mpps

Memory and processorSingle Core ARMv7 Cortex-A9 @800MHz

Operating temperature0-40°C, 0-10,000 ft

Management featuresAruba Instant On Cloud; Web browser; SNMP Manager

WarrantyLimited Lifetime Warranty with 24x7 phone support for 90 days and chat support for the entire warranty duration.

Weight3.9 kg (8.7 lb)

Dimensions35.05 x 44.25 x 4.4 cm (13.80 x 17.42 x 1.73 in)
