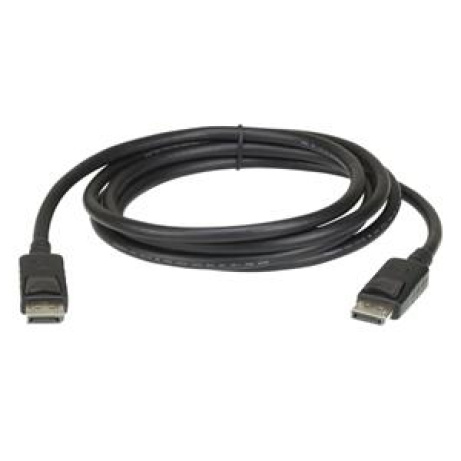

The ATEN DisplayPort rev.1.4 Cable supports 32.4 Gbps data rate with high-definition connectivity and advanced auxiliary channeling. It is a professional connection of your DisplayPort supported (gaming) PC, use in conjunction with ATEN DisplayPort solutions, laptop to an ultra high resolution monitor, or other DisplayPort interface devices. Our DisplayPort rev.1.4 Cable allows for up to 8K Dynamic HDR with 32 channels for high quality video and audio experience. Each connector features latches that provide a secure connection with a release button.

Max. Video Resolution Up to 7680x4320@60Hz
Physical Properties
Cable Length 3M
Cable Color Black
Cable Outer Dimension 8.0 ± 0.2mm
Conductor Gauge 26AWG
Conductor Material Tinned Copper
Connector Plating Nickel
Connector Type DisplayPort (20 pin) Male to Male
Cable Shield Type Aluminum Magnesium Alloy
Cable Jacket Type PVC
Environmental
Operating Temperature 80?
Rating UL VW-1 (Flame rate), CSA

Crystal-clear video up to 8K (7680 x 4320 @ 60Hz), backward compatible with 5K (5120 x 2880 @ 60Hz) and 4K (4096 x 2160 @ 120Hz) and previous generations of DP
High Bit Rate 3 (HBR3) bandwidth of 32.4 Gbps
Multi-Stream Transport (MST) for daisy-chaining multiple monitors
Forward Error Correction
Display Stream Compression (DSC)
32 uncompressed digital audio channels
RoHS compliant

Package Contents
1x 2L-7D03DP-1 3 m DisplayPort rev.1.4 Cable
