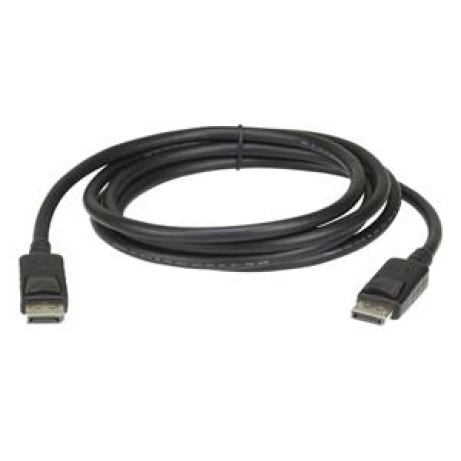

The ATEN DisplayPort rev.1.2 Cable provides high-definition connectivity and advanced auxiliary channeling. Our DisplayPort cables support long distance connections by safeguarding transmission quality and image clarity. We offer DisplayPort cables at lengths of 3 and 4.6 meters supporting resolutions up to 4K UHD (3840 x 2160 @ 60Hz).

Max. Video Resolution 3840x2160@60Hz
Physical Properties
Cable Length 4.6M
Cable Color Black
Cable Outer Dimension 8.0 ± 0.2mm
Conductor Gauge 26AWG
Conductor Material Tinned Copper
Connector Plating Nickel
Connector Type DisplayPort (20 pin) Male to Male
Cable Shield Type Aluminum Magnesium Alloy
Cable Jacket Type PVC
Environmental
Operating Temperature 80?
Rating UL VW-1 (Flame rate), CSA

Crystal-clear video up to 4K UHD (3840 x 2160 @ 60Hz)
Multi-Stream Transport (MST) support
Supports bandwidth up to 21.6 Gbps
Supports dual monitors in mirror and extended mode
Multiple strands of tinned copper wire to enhance EMI protection
RoHS compliant

Package Contents
1x 2L-7D04DP 4.6 m DisplayPort rev.1.2 Cable
