The ATEN VE44PB is a 4-port power injector for remote power supply for up to four compatible ATEN PoH-powered or PoE-powered devices via Cat 5e/6/6a cables. Deploying the VE44PB in your Pro AV facilities eliminates the need for local power supplies of the connected devices. It supplies up to 15.4W of power per PSE port. Featuring HDBaseT connectivity, the VE44PB can extend HDMI connection over a long distance via Cat 6/6a cables; meanwhile, still ensures unaffected video and image quality. Besides, the status LEDs on its front panel indicates an at-a-glance overview of the connected devices, allowing you to perform real-time monitoring and trouble shooting in the case of emergency. With its compact and rack mountable design, the VE44PB can be flexibly installed anywhere between the transmitter and receiver that require remote PoH / PoE powering.

Video
Max. Data Rate 10.2Gbps per port (Support HDBaseT POH PD ready models)

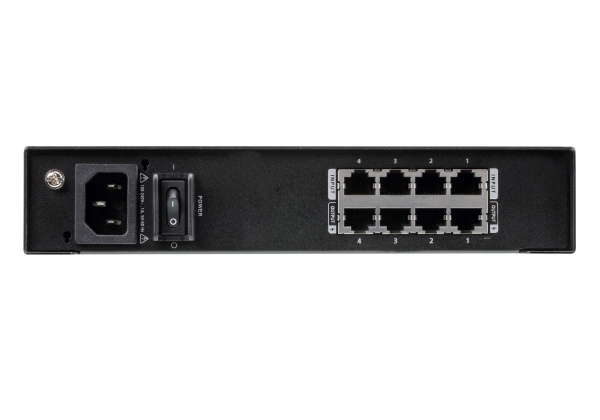

Connectors
Input 4 x RJ-45 Female
Output 4 x RJ-45 Female (with POH/POE PSE)
Power 1 x 3-Prong AC Socket
Switches
Power 1 x On/Off Switch
Power
Maximum Input Power Rating 100-240 VAC; 50-60 Hz
Power Consumption AC110V:1.2W:294BTU
AC220V:1.1W:293BTU
Environmental
Operating Temperature 0 - 40°C
Storage Temperature -20 - 60°C
Humidity 0 - 80% RH, Non-Condensing
Physical Properties
Housing Metal
Weight 1.23 kg ( 2.71 lb )
Dimensions (L x W x H) 21.50 x 16.12 x 4.18 cm
(8.46 x 6.35 x 1.65 in.)
Note For some of rack mount products, please note that the standard physical dimensions of WxDxH are expressed using a LxWxH format.

Supplies power for up to four ATEN Power-over-HDBaseT (PoH) /Power-over-Ethernet (PoE) compatible products over Cat 5e/6/6a cables
HDBaseT connectivity – extends HDMI connection over a long distance via Cat 6/6a cable
Offers a data rate up to 10.2Gbps which is compatible with ATEN HDBaseT PoH PD products
• Compatible ATEN PoH-powered/PoE-powered models:
VE2812AT, VE2812AEUT, VE2812AUST, VE1812R, VE802R, VK108US, VK112EU, VK224, VK236, VK248, KE8952, or future ATEN PoH-powered/PoE-powered products which follow IEEE 802.3 af standard
Built-in 8KV/15KV ESD protection
Plug-and-play without additional settings
Rack-mountable
Supplies up to 15.4W of power per PSE port

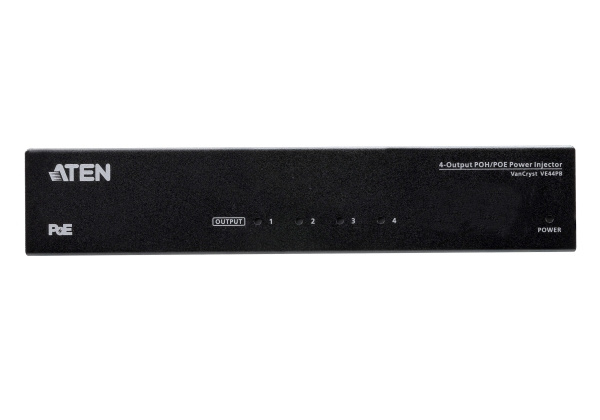

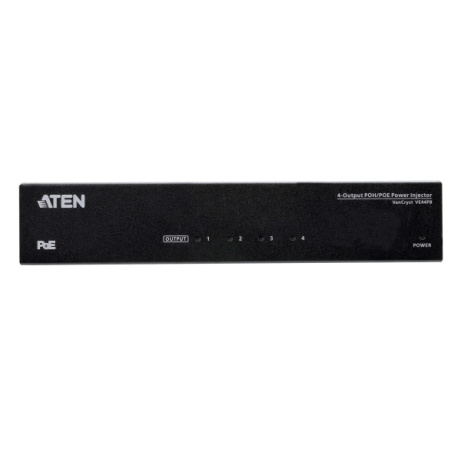

Status LEDs to provide an at-a-glance overview of device status, improving real-time monitoring and troubleshooting
Assured signal quality – usage of the VE44PB power injector does not affect the signal quality of the video, audio, bi-directional RS-232, and Ethernet transmission*
*The transmission distance maybe reduced to 80% of the original distance.

Package Contents
1x 4-Output POH/POE Power Injector
1x Mounting Kit
1x Power Cord Cable
1x User Instructions
