16-Port PS/2-USB VGA LCD KVM Switch with Daisy-Chain Port and USB Peripheral Support
CL5716

CL5716FM: 17" LCD with fingerprint reader

The CL5716 Slideaway™ LCD KVM Switch is a control unit that allows access to multiple computers from a single PS/2 or USB KVM (keyboard, video, and mouse) console. A single CL5716 can control up to 16 computers. As many as 31 additional KVM switches can be daisy-chained to the CL5716, so that up to 512 computers can all be controlled from a single KVM console.

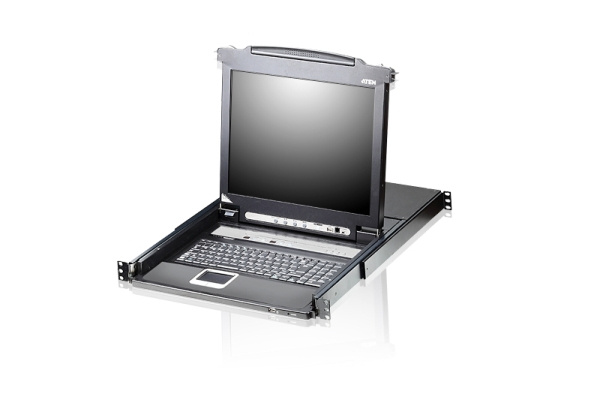

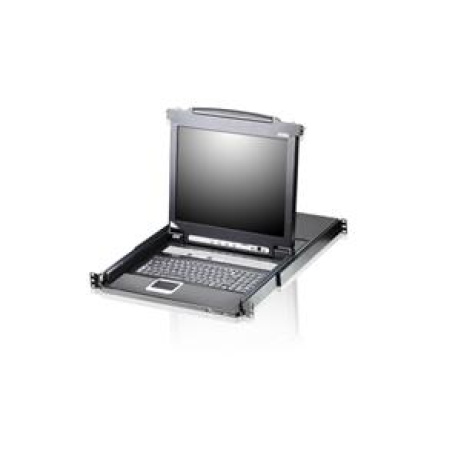

The CL5716 offers a space-saving, streamlined approach to KVM switch technology by integrating a keyboard, 17" LED-backlit LCD monitor, and touchpad in a 1U rack-mountable sliding housing.

Features:

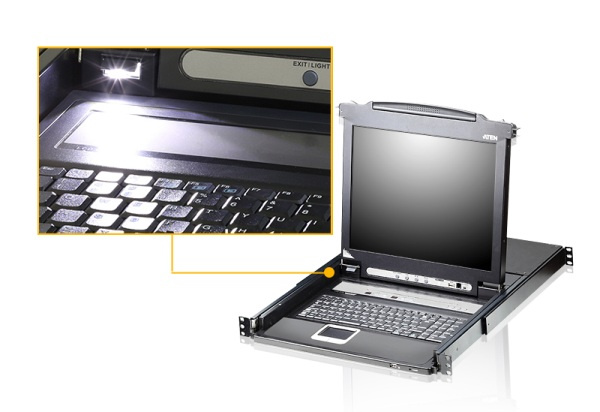

Exclusive LED illumination light - designed by ATEN to illuminate the keyboard and touchpad to allow visibility in low-light conditions
Integrated KVM console with 17" LED-backlit LCD monitor in a Slideaway™ housing
Available with or without Fingerprint Identification Reader**
Space saving technology - up to two consoles (one bus) control up to 16 computers
Daisy-chain up to 31 additional units - control up to 512 computers from a single console (With compatible KVM Swithces: ACS1208A, ACS1216A, CS1708A,CS1716A)
Dual Interface - supports computers and console with PS/2 or USB keyboards and mice
LCD module USB port allows each computer to access USB peripherals*
LCD module rotates up to 115 degrees for a more comfortable viewing angle
Multiplatform support – Windows, Linux, Mac, and Sun
Supports multimedia USB keyboards for PC, Mac and Sun
Auto PS/2 and USB interface detection
Keyboard and mouse emulation (PS/2 and USB) for smooth switching and simultaneous booting of multiple computers even when the console focus is elsewhere
Supports external USB mouse
Superior video quality - supports resolutions up to 1280 x 1024 @ 75 Hz
No software required - convenient computer selection via front panel pushbuttons, hotkeys and multilingual on-screen display (OSD) menus
Auto-senses station's position on daisy-chained installations; no need for manual dip switch setting; front panel led indicates station's position
Port names automatically reconfigured when station sequence is changed
Two level password security - only authorized users can view and control computers
Supports one administrator and four user accounts with separate profiles
Auto Scan mode enables continuous monitoring of user-selected computers
Broadcast support - commands from the keyboard can be broadcast to all available computers on the installation
Hot pluggable - add or remove computers without having to power down the switch
Beeper on/off via hotkey and OSD
Firmware upgrades to all the chained KVM switches at the same time via the daisy-chain cable
Keyboard Language support: English (US), English (UK), French, German, German (Swiss), Greek, Hungarian, Italian, Japanese, Korean, Russian, Spanish, Swedish and Traditional Chinese

**The fingerprint reader can be used as an alternate means of logging in to the switch. From 1 to 4 fingers can be scanned for each user and the administrator, with any one of the recorded fingerprints used to log in.

Package Contents

1 x CL5716 LCD KVM Switch with standard Rack Mount Kit
1 x 2L-5202P KVM Cable PS/2 (1,8m)
1 x 2L-5202U KVM Cable USB (1,8m)
1 x LIN5-27X6-U21G 5-in-1 USB / PS/2 Console Cable
1 x LIN5-04A2-J11G Firmware Upgrade Cable
1 x LIN2-418K-E12G Power Cord (AC Power Models)
1 x User Instructions
