Exclusive LED illumination light
Integrated LCD KVM console with an 18.5'' LED-backlit widescreen LCD monitor in a single rail housing with top and bottom clearance for smooth operation in a 1U high system rack
Cascade up to 2 levels – CL3108 controls up to 128 computers or CL3116 controls up to 256 computers from a single console
Keyboard and mouse emulation (PS/2 and USB) for smooth switching and simultaneously booting multiple computers even when the console focus is elsewhere

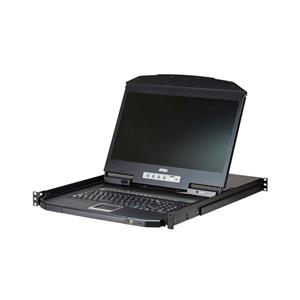

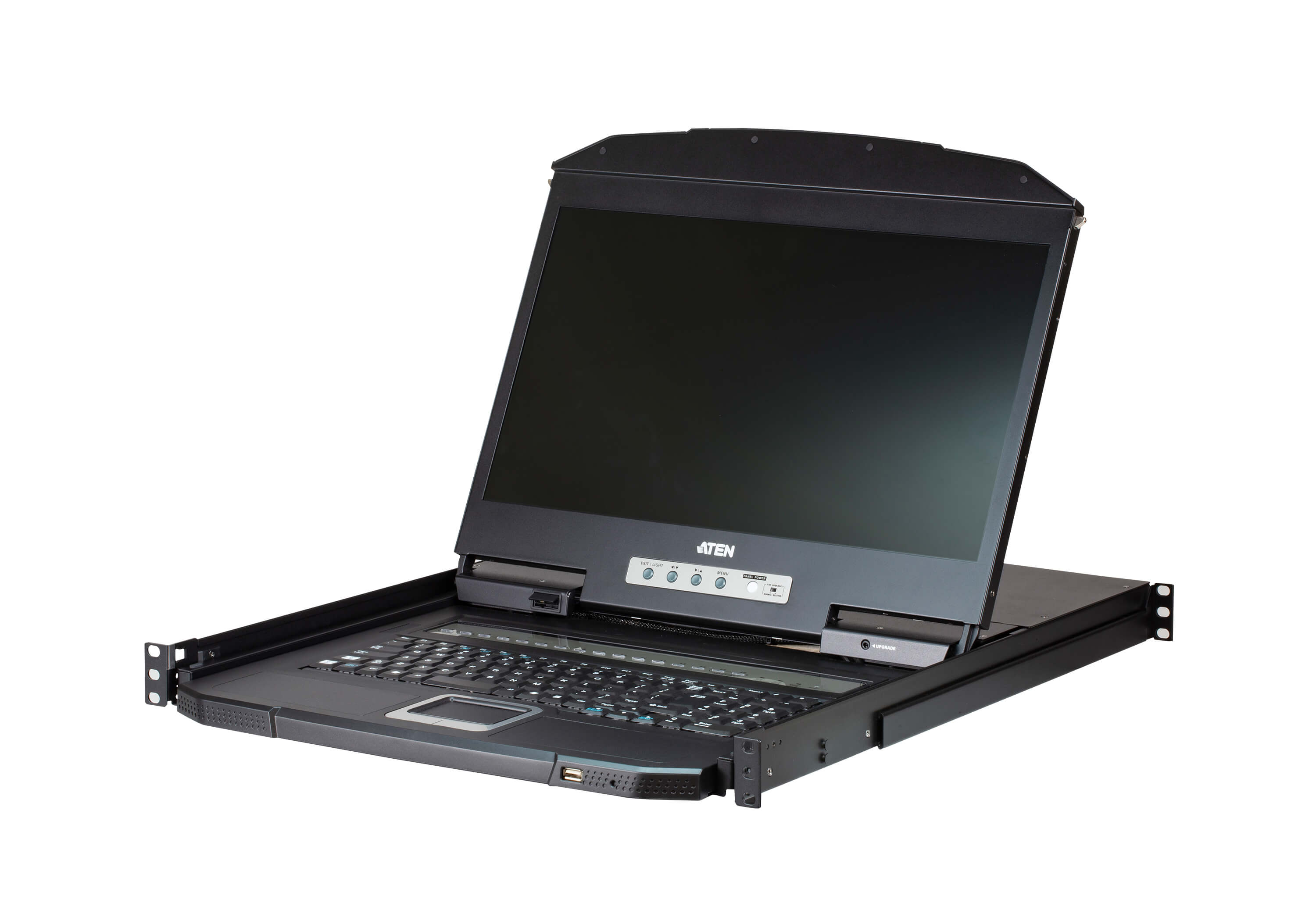

The ATEN CL3108 LCD KVM Switch offers a space-saving, streamlined approach to KVM switch technology by integrating a keyboard, 18.5" LED-backlit LCD monitor, and a touchpad in a 1U rack-mountable sliding housing. The short-depth design maximizes space utility for equipping rack-mounting devices in narrow spaces. In addition, its exclusive LED illumination light provides users with proper visibility when working in low-light conditions.
The CL3108 can control up to 8 computers; when 8 additional KVM switches are cascaded, a single CL3108 LCD KVM Switch can control up to 128 computers. To achieve greater operational efficiency, the CL3108 offers Broadcast mode, which the console spreads out the commands to all computers to perform operations simultaneously. Besides, the Auto scan mode fulfills the needs for continuous monitoring a specific group of computers, and establishing a reliable working environment for users.

To enhance information safety, the CL3108 provides two-level password security which restricts unauthorized users from viewing and controlling the computers. For added convenience, the CL3108 comes with an additional hot-pluggable USB mouse port that only supports HID device for keyboard and mouse.

As a feature-rich LCD KVM Switch, the CL3108 is aimed not just to achieve but exceed the requirements for space utility optimization, superior video quality, adaptive deployment, and operational versatility, and thus is ideal for control rooms with limited space in any industry.

Space Utility Optimization
Exclusive LED illumination light – designed by ATEN to illuminate the keyboard and touchpad to allow visibility in low-light conditions
Integrated LCD KVM console with an 18.5'' LED-backlit widescreen LCD monitor in a single rail housing with top and bottom clearance for smooth operation in a 1U high system rack
Short-depth design allows you to work with your rack-mounting equipment in narrow spaces
Console lock – enables the console drawer to remain securely locked away in position when not in use


Reliability and Operational Versatility
Superior video quality - up to 1366 x 768 @60Hz; DDC2B
Cascade up to 2 levels – CL3108 controls up to 128 computers from a single console (With compatible KVM Switches: CS1308/CS1316)
Dual Interface – supports computers with PS/2 or USB keyboards and mice
Auto PS/2 and USB interface detection
Keyboard and mouse emulation (PS/2 and USB) for smooth switching and simultaneously booting multiple computers even when the console focus is elsewhere
Computer selection via pushbuttons, hotkeys, and multilingual on-screen display (OSD)
Broadcast mode – allows you to send commands from the console to all computers to perform operations simultaneously
Two level password security – only authorized users can view and control computers
Auto Scan mode – enables continuous monitoring of user-selected computers
Keyboard Language supports: English (UK), English (US), German (GER.), German (SWISS.), French, Hungarian, Italian, Japanese, Korean, Russian, Spanish, Swedish and Traditional Chinese
Additional hot-pluggable USB mouse port on front panel that supports HID device for keyboard and mouse


Installation Flexibility
Standard rack mount kit included
Optional Easy Installation Rack Mounting Kit available*
No software required
Firmware upgradable
Supports hot-plugging

*The Easy Installation Rack Mounting Kit is sold separately. Contact your ATEN dealer for product information.

Package Contents
1x CL3108 LCD KVM Switch with Standard Rack Mounting Kit
2x LIN5-15X3-U12G Custom KVM Cables (VGA, USB; 1.8m/6ft)
1x LIN5-04A2-J15G Firmware Upgrade Cable
1x LIN2-418K-E12G Power Cord
1x User Instructions

Computer Connections
Direct
8
Maximum
128 (via Cascade)
Port Selection
OSD, Hotkeys, Pushbuttons
Connectors
KVM Ports
8 x SPHD-18 Female (Yellow)
Firmware Upgrade
1 x 3.5mm Audio Jack Female (Black)
Power
1 x IEC60320/C14
External Mouse Port
1 x USB Type A Female (Front)
Switches
Port Selection
8 x Pushbutton
Reset
1 x Semi-recessed Pushbutton
Power
1 x Rocker Switch
Firmware Upgrade
1 x Slide Switch
LCD Control
4 x Pushbutton
LCD Power
1 x LED Pushbutton
LEDs
Online
8 (Orange)
Selected
8 (Green)
Power
1 x KVM Console (Dark Green)
1 x LCD (Orange)
Lock
1 x Num Lock (Green)
1 x Caps Lock (Green)
1 x Scroll Lock (Green)
LED Illumination Light
1 x LED Illumination Light
Panel Spec
LCD Module
18.5" TFT-LCD
Resolution
1366 x 768 @ 60 Hz
Response time
5 ms
Viewing Angle
170° (H), 160° (V)
Pixel Pitch
0.3 mm x 0.3 mm
Support Color
16.7M colors
Contrast Ratio
1000 : 1
Luminance
250 cd/m˛
Video
Input Video Resolution
1920 x 1200 @ 60 Hz
Scan Interval
1-255 seconds
Emulation
Keyboard / Mouse
PS/2, USB
Maximum Input Power Rating
100–240 V AC, 50-60 Hz, 1 A
Power Consumption
AC110V:14.1W:70BTU
AC220V:14.9W:74BTU
Environmental
Operating Temperature
0-40°C
Storage Temperature
-20-60°C
Humidity
0 - 80% RH, Non-condensing
Physical Properties
Housing
Metal + Plastic
Rail Type
Single Rail
Weight
10.50 kg ( 23.13 lb )
Dimensions (L x W x H)
48.06 x 63.17 x 4.28 cm
(18.92 x 24.87 x 1.69 in.)
Body Dimensions(L x W x H)
44.92 x 58.4 x 4.28 cm
(17.69 x 22.99 x 1.69 in.)
Note
Body Dimensions exclude I/O ports, handles, and mounting brackets.
Note
For some of rack mount products, please note that the standard physical dimensions of WxDxH are expressed using a LxWxH format.
