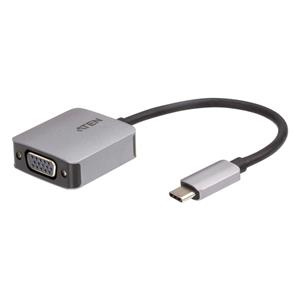

ATEN USB-C to VGA Adapter
Výrobce:ATEN
Kód produktu:i26_449014
Part number:UC3002A-AT
Záruka:24 měsíců
Dostupnost:
na dotaz
ZBOŽÍ NENÍ AKTUÁLNĚ SKLADEM. O SKLADOVÉ DOSTUPNOSTI SE INFORMUJTE NA EMAILU, NEBO SI NASTAVTE NÍŽE " SLEDOVAT CENU "
Popis
Parametry produktu
The UC3002A is a USB-C to VGA adapter that allows you to transfer the video of your USB-C equipped laptop, tablet, computer or smartphone to a VGA display or projector. The UC3002A supports high video resolutions up to 1920 x 1200 @ 60 Hz so that you can conveniently scale your display output to a bigger monitor or do presentations from a projector.
Video Input
Interfaces 1 x USB-C Male (Black)
Video Output
Interfaces 1 x HDB-15 Female (Black)
Video
Max. Pixel Clock 148.5 MHZ
Max. Resolution 1920 x 1200@60Hz
Compliance USB3.1 Type-C with DP Alt Mode (Thunderbolt™ 3 Compatible)
USB Billboard Device Class
HDCP 1.3
System Requirements Windows 10 and above, USB-C enabled computer with DP Alt Mode*
* With Intel 7th-Generation Core Processor (Kaby-Lake) and above. More info about CPU generation, please ?nd: https://www.intel.com/content/www/us/en/processors/processor-numbers.html
Mac OS X 10.12 and above, USB-C enabled computer
Android 8.0 and later, USB-C enabled Smartphone with DP Alt Mode
iOS 12.1 and above, iPad Pro 3rd generation (2018)
Environmental
Operating Temperature 0 - 40 oC
Storage Temperature -20 - 60 oC
Humidity 0 - 80% RH, Non-Condensing
Physical Properties
Housing Aluminum
Weight 0.02 kg ( 0.06 lb )
Dimensions (L x W x H) 3.95 x 1.40 x 9.60 cm
(1.56 x 0.55 x 3.78 in.)
Note For some of rack mount products, please note that the standard physical dimensions of WxDxH are expressed using a LxWxH format.

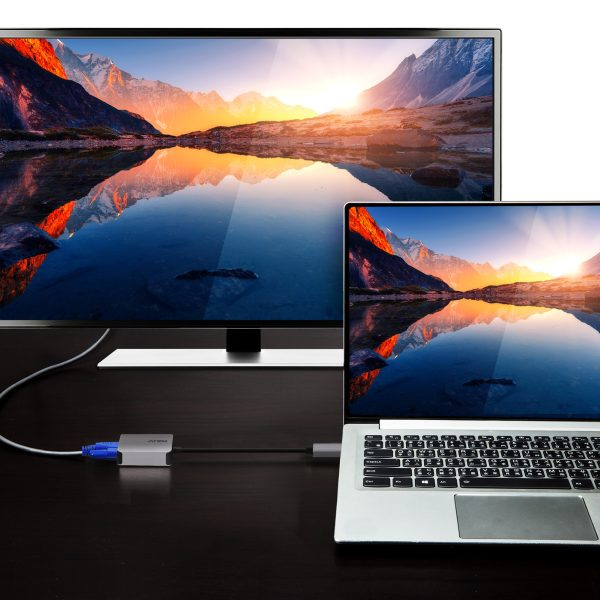

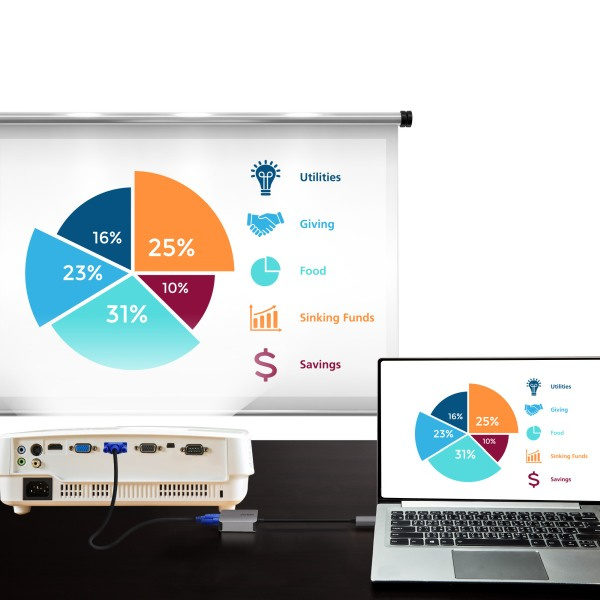

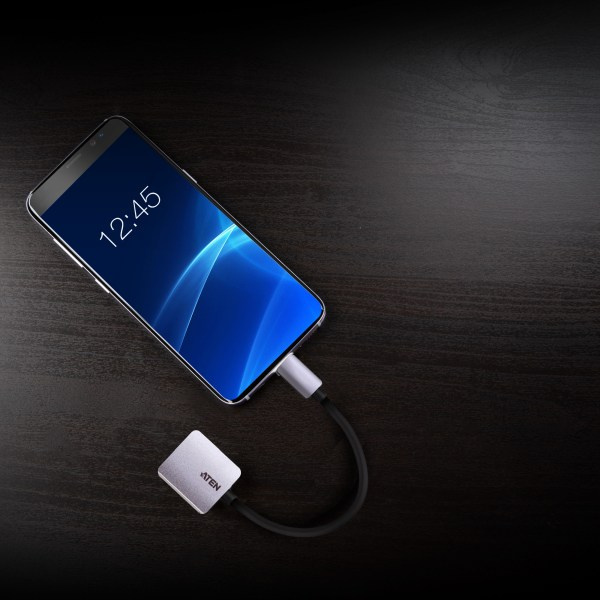

Transfer high-quality videos from a USB-C enabled laptop or smarphone to a 1920 x 1200@60Hz VGA display, or projector*
Premium casing can resists signal interference during video transmission and heat insulation
Compact and lightweight design
Works with all major operating systems: Windows®, OS X®, iPad Pro 3rd gen and Android
Plug-and-Play – no software required
*With Intel 7th- Generation Core Processor (Kaby Lake) and above. For video output to work through a USB-C port, it must support DP Alt Mode.
Package Contents
1x UC3002A USB-C to VGA Adapter
Video Input
Interfaces 1 x USB-C Male (Black)
Video Output
Interfaces 1 x HDB-15 Female (Black)
Video
Max. Pixel Clock 148.5 MHZ
Max. Resolution 1920 x 1200@60Hz
Compliance USB3.1 Type-C with DP Alt Mode (Thunderbolt™ 3 Compatible)
USB Billboard Device Class
HDCP 1.3
System Requirements Windows 10 and above, USB-C enabled computer with DP Alt Mode*
* With Intel 7th-Generation Core Processor (Kaby-Lake) and above. More info about CPU generation, please ?nd: https://www.intel.com/content/www/us/en/processors/processor-numbers.html
Mac OS X 10.12 and above, USB-C enabled computer
Android 8.0 and later, USB-C enabled Smartphone with DP Alt Mode
iOS 12.1 and above, iPad Pro 3rd generation (2018)
Environmental
Operating Temperature 0 - 40 oC
Storage Temperature -20 - 60 oC
Humidity 0 - 80% RH, Non-Condensing
Physical Properties
Housing Aluminum
Weight 0.02 kg ( 0.06 lb )
Dimensions (L x W x H) 3.95 x 1.40 x 9.60 cm
(1.56 x 0.55 x 3.78 in.)
Note For some of rack mount products, please note that the standard physical dimensions of WxDxH are expressed using a LxWxH format.
Transfer high-quality videos from a USB-C enabled laptop or smarphone to a 1920 x 1200@60Hz VGA display, or projector*
Premium casing can resists signal interference during video transmission and heat insulation
Compact and lightweight design
Works with all major operating systems: Windows®, OS X®, iPad Pro 3rd gen and Android
Plug-and-Play – no software required
*With Intel 7th- Generation Core Processor (Kaby Lake) and above. For video output to work through a USB-C port, it must support DP Alt Mode.
Package Contents
1x UC3002A USB-C to VGA Adapter
Konektor 1 (kabel):USB-C
Konektor 2 (kabel):VGA
Délka (kabel):10cm - 50cm
Určení (kabel):Redukce
Provedení konektoru (kabel):Rovný
Barva (kabel):Černá
Opletení (kabel):Ne
Výrobce (kabel):Aten
