LH720 Corporate Laser Projector

Display
Projection System DLP Single 0.65" 1080P
DMD type DC3 DMD Chip
Native Resolution 1920X1080 pixels
Brightness 4000 ANSI Lumens
Contrast Ratio* 100,000:1
Display Color 1.07 Billion Colors
Aspect Ratio Native16:9 (5 aspect ratio selectable)
Light Source Laser diodes
Light Source Life* 20,000 hours(Normal)

Optical
Throw Ratio 1.38÷2.13
Zoom Ratio 1.5x
Lens Shift Vertical: +14%
Keystone Correction Vertical: ± 30 degrees
Horizontal: ± 30 degrees
Projection Offset 116%
Projection Size 30" ~ 300"

Audio
Built-in Speaker 10Wx1

Special Feature
Security(anti-theft) Security Bar, Kensington anti-theft lock slot
Feature Blank for True Black , 2D Keystone, Corner fit. Custom lightsource mode(brightness adjustment), Constant Brightness Mode, Infographic and Vivid mode ,Dust Proof engine.

Compatibility
Resolution Support VGA(640 x 480) to WUXGA(1920 x 1200)
Horizontal Frequency 15 ~ 102KHz
Vertical Scan Rate 23 ~ 120 Hz
HDTV Compatibility 480i, 480p, 576i, 567p, 720p, 1080i, 1080p
Video Compatibility NTSC, PAL, SECAM

Power
Power Consumption (Max/Normal/Eco) 320/ 300/ 280W
Standby Power Consumption Normal < 0.5W. Network < 2W
Power Supply 100 ~ 240V AC

Dimension and Weight
Product Dimensions (WxHxD) 410 x 158 x 272 mm
Product Weight 5.6kg
Operation Condition
Noise Level (Normal/Eco) 33 /29 dB
Operating Temperature 0 ~ 40o C

Accessories (Standard)
CD UM (5B.JHJ01.001)
QSG(4J.JHJ01.001)
Remote Control (5J.JJF06.001)
AAA Batteryx2
VGA cable (1.8m)
Power Cord (3m)
Warranty card (by Region)

Accessories (Optional)
Wireless Kit - Instashow WDC10 (9H.JF878.N4X)
Wireless Dongle - QCast (5J.JCK28.X01)
Wireless Dongle - QCast Mirror (5A.JH328.10X)
3D Glasses (5J.J9H25.002)
Ceiling mount (5J.JAM10.001)
3mm Dust Filter (FTFS01)
10mm Dust Filter (FTFC01)

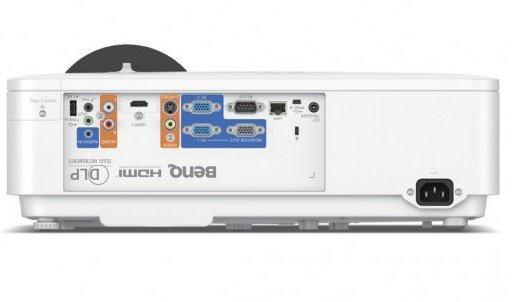

Connectivity
I/O Port HDMI-1 x1
HDMI-2/MHL x1
USB TypeA (1.5A power) x1
USB Type min B (For Page up/down and FW upgrade) x1
Computer In (VGA D-sub 15pin, Female) x2
Monitor out (VGA D-sub 15pin,Female) x1
RS232 In (D-sub 9pin, male) x1
LAN (RJ45) (Control & FW Upgrade) x1
DC 12V Trigger (3.5mm Jack) x1
Composite Video (RCA) x1
S-Video x1
Audio in (mini jack) x1
Audio out (mini jack) x1
Audio L/R in (RCA) x1
Microphone in (Mini jack) x1
IR Receiver (Front+Top) x2

OSD
On Screen Display Language Arabic/Bulgarian/ Croatian/ Czech/ Danish/ Dutch/ English/ Finnish/ French/ German/ Greek/ Hindi/ Hungarian/ Italian/ Indonesian/ Japanese/ Korean/ Norwegian/ Polish/ Portuguese/ Romanian/ Russian/ Simplified Chinese/Spanish/ Swedish/ Turkish/ Thai/ Traditional Chinese (28 Languages)

Notice
* The Contrast is measure by Full On Full Off standard.
*LightSource life results will vary depending on environmental conditions and usage. Actual product's features and specifications are subject to change without notice.
