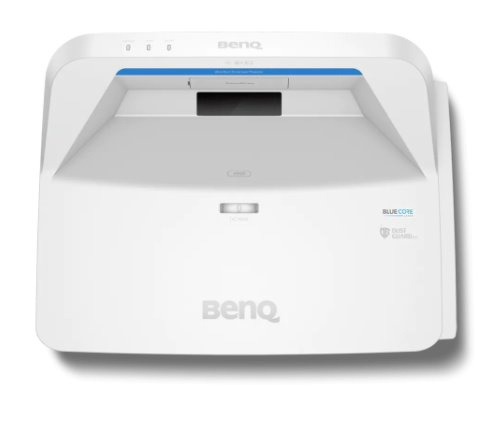

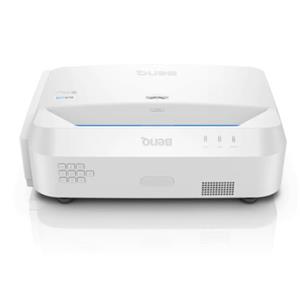

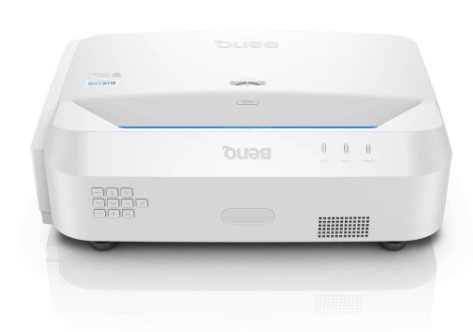

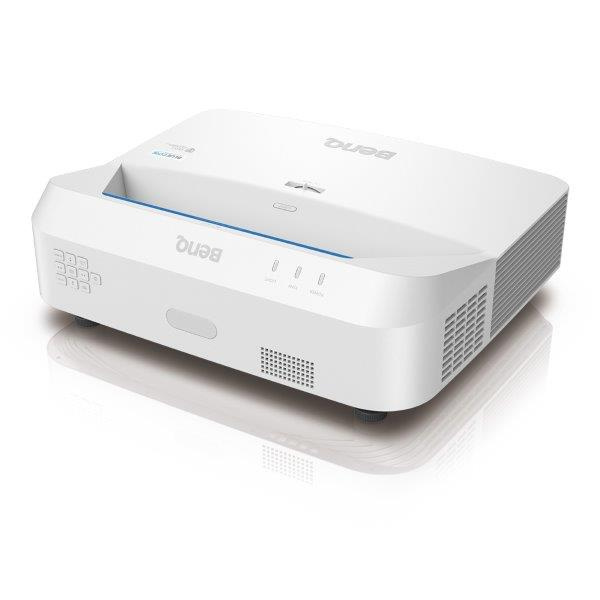

Laser projektor LH890UST
Projektor pro vzdělávání a školy |LH890UST 4000lms 1080P
Pro interaktivitu nutno zakoupit PointWrite Kit: PW40U
Nepřerušované učení prostřednictvím dlouhotrvající projekce
Velmi krátká projekční vzdálenost
Laserová technologie BlueCore pro vynikající kvalitu obrazu
Prachotěsný mechanismus IP5X snižující náklady na údržbu

Display
Projection System DLP Single 0.65" Full HD
DMD Type DC3 DMD Chip
Native Resolution 1920 x 1080 pixels, 16:9
Brightness 4,000 ANSI Lumens
Contrast Ratio 100,000:1
Display Color 1.07 Billion Colors
Aspect Ratio Native 16:9 (5 aspect ratio selectable)
Light Source Laser Light Source
Light Source Life* min 20000Hrs

Optical
Throw Ratio 0.23
Zoom Ratio Fixed
Lens Control Manual Focus
Keystone Correction 2D keystone, Vertical ± 20 & Horizontal ± 20 degrees,
Projection Offset** 118.8±3%( (Full-Height)
Projection Size (diagonal) 81"~121"

Audio
Built-in Speaker 10Wx1
Special Feature
Security Kensington Lock
Feature 2D Keystone, Corner Fit, Digital zoom(2x), Digital Shrink(0.75x), LAN Control, AMX/ PJ Link/Crestron/MDA Compatibility Optional Wireless Display, Optional Interactive module (PW40U) compatibility.Optional Dust Filter
Compatibility
Resolution Support VGA (640 x 480) to WUXGA (1920 x 1200)
Horizontal Frequency 15KHz ~102KHz
Vertical Scan Rate 23 - 120Hz
HDTV Compatibility 480i, 480p, 576i, 576p, 720p, 1080i, 1080p
Video Compatibility NTSC, PAL, SECAM

Power
Power Consumption (Max/Normal/Eco) Max 380W. Normal 358 W. Eco 274 W.
Standby Power Consumption Normal < 0.5Watts. Network < 2W.
Power Supply 100 ~ 240V AC
Dimension and Weight
Product Weight 9.06 Kg+/- 100g
Product Dimensions (WxHxD) 502.1x 164.5 x 399.3 mm
Operation Condition
Noise Level (Normal/Eco) 35/32 dBA (without dust filter)
37/34 dBA (with dust filter)
Operating Temperature 0o ~ 40o C

Connectivity
I/O Port HDMI-1 X1
HDMI-2/MHL X1
PC (VGA D-sub 15pin) X1
Monitor out (VGA D-sub 15pin,Female) X1
Composite Video in (RCA) X1
S-Video in X1
Audio in(mini jack) X1
Audio L/R in (RCA) X1
Audio out (mini jack) X1
LAN Port(RJ45 for Network ) X1
RS232 In (D-sub 9pin, male) X1
USB TypeA (5V,1.5A) X1
USB Type mini B (For service) X1
USB Type mini B (For PointWrite module) X1
IR Receiver(Front) X1


Accessories (Standard)
Power Cord (by region)
Remote Control (RCA022)
AAA Batteryx2
VGA cable
Warranty Card (by region)
QSG (4J.JJC01.001)
User Manual CD (5B.JJC01.001)
Wall mount (WM03G6)

Accessories (Optional)
3D Glasses (5J.J9H25.002)
PointWrite Kit: PW40U (5A.JJR26.10E)
Wireless Dongle: QCast Mirror (5A.JH328.10X)
Wireless Dongle: QCast (5J.JCK28.X01)
Wireless Kit - Instashow WDC10 (9H.JF878.N4X)
3mm Dust Filter -FTFS02 (5J.JHF14.001)

OSD
On Screen Display Language Arabic/ Bulgarian/ Croatian/ Czech/ Danish/ Dutch/ English/ Finnish/ French/ German/ Greek/ Hindi/ Hungarian/ Italian/ Indonesian/ Japanese/ Korean/ Norwegian/ Polish/ Portuguese/ Romanian/ Russian/ Simplified Chinese/ Spanish/ Swedish/ Turkish/ Thai/ Traditional Chinese (28 languages)

* The Contrast is measure by Full On Full Off standard.
* LightSource life results will vary depending on environmental conditions and usage. Actual product's features and specifications are subject to change without notice.
* Storage: Temperature: -20~60°C; Humidity: 10~90%RH (without condensation)
