Main Specifications
Resolution 4K UHD (3840 x 2160) Resolution
Brightness (ANSI lumens) 3,000 ANSI Lumens
Contrast Ratio (FOFO)* 3,000,000 : 1*

All Specifications
Display
Projection System DLP
Resolution 4K UHD (3840 x 2160) Resolution
Resolution Support VGA (640 x 480) to 4K UHD (3840 x 2160)
Brightness (ANSI lumens) 3,000 ANSI Lumens
Contrast Ratio (FOFO)* 3,000,000 : 1*
Display Color 30 Bits (1,07 billion colors)
Native Aspect Ratio Native 16 : 9 (4:3)
Light Source Laser + Phosphor
Light Source Life* 20,000 hours (Typical, Light Source Only)**
DMD type 0.47”
Keystone Correction Vertical ± 30 degrees

Optical
Throw Ratio 0.252 (90” ± 3% @ 0.503 m)
Projection Size (Clear Focus / Maximum) 70”~120”

Picture Mode Bright / Living Room / Cinema / DCI-P3 / User / Silence / 3D / HDR10 / HLG ***
Color Wheel Segment RGBY
Color Wheel Speed 1x

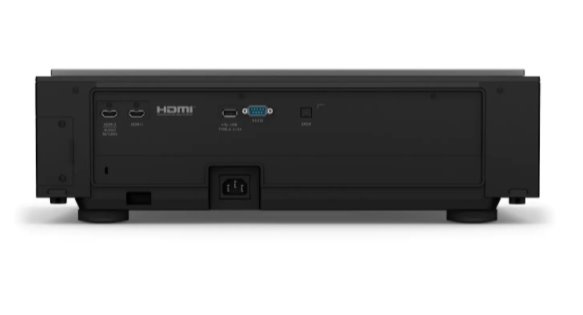

Interface
HDMI 2x HDMI 2.0 with HDCP 2.2 (1x HDMI with ARC 2.0)
USB 2.0 Type A 2x
Audio Out 1x S/PDIF
RS232 (DB-9pin) 1x
IR Receiver Front/Top
Security Bar Security Bar
USB 3.0 (Type A) 1x

Special Feature
Feature HDR10, HLG, 3D, Motion Enhancer 4K, Pixel Enhancer 4K, Eye Protection Sensor

Compatibility
HDTV Compatibility 480i, 480p, 576i, 576p, 720p, 1080i, 1080p UHD
Horizontal Frequency 15K-135KHz
Vertical Scan Rate 23-120Hz

Power
Power Supply VAC 100 ~ 240 (50/60Hz)
Typical Power Consumption 500W / 375W / 220W
Standby Power Consumption 0.5W Max. at 100 ~ 240VAC
Acoustic Noise (Typ./Eco.) 34 / 29 dBA (XPR off), 37 / 32 dBA (XPR on)
Operating Temperature 0~40 degrees (Celsius)

Dimension and Weight
Dimensions (W x H x D)(mm) 500 x 388 x 157 mm
Net Weight (Kg/ lbs) 10 kg

Accessories (Standard)
Remote Control w/ Battery 1x
Power Cord (by region) Power Cord x 1 (3m)
User Manual CD Yes
Quick Start Guide Yes
Warranty Card (by region) Yes

Accessories (Optional)
3D Glasses Yes

OSD
OSD Language Arabic / Bulgarian / Croatian / Czech / Danish / Dutch / English / Finnish / French / German / Greek / Hindi / Hungarian / Italian / Indonesian / Japanese / Korean / Norwegian / Polish / Portuguese / Romanian / Russian / Simplified Chinese / Spanish / Swedish / Turkish / Thai / Traditional Chinese (28 Languages)

* The Contrast is measured by Full On Full Off standard.
**Lamp life results will vary depending on environmental conditions and usage. Actual product’s features and specifications are subject to change without notice.
*** Default picture mode is Living room
