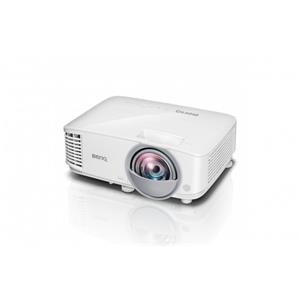

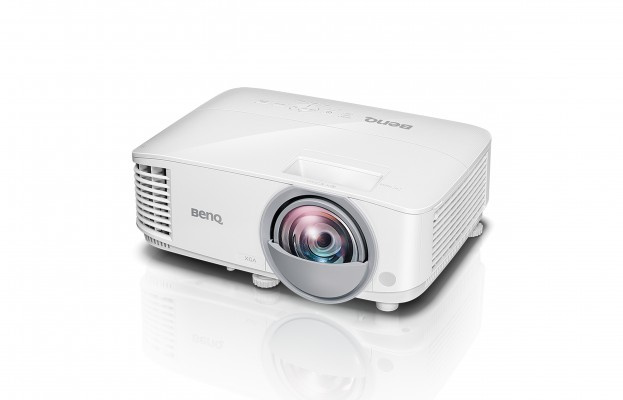

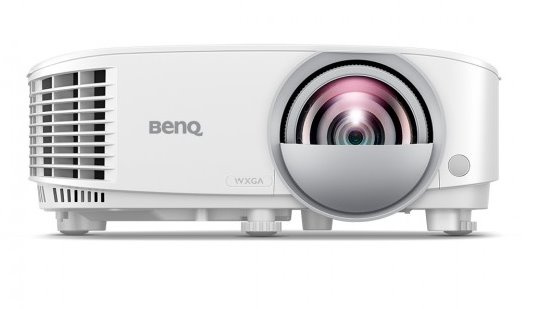

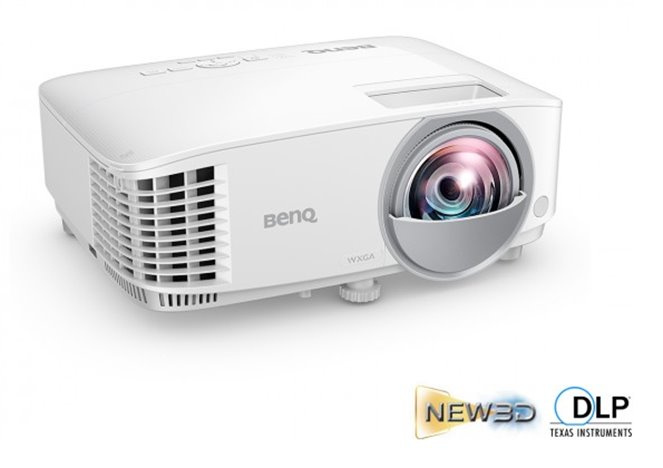

Projektor pro vzdělávací účely MW826ST zlepšuje interaktivitu učení a spolupráci ve třídě díky vynikající kvalitě obrazu, vysokému jasu a možnosti krátké projekční vzdálenosti.
Pro interaktivitu nutno zakoupit PointWrite Touch Module PT12, PointWrite Kit PW02
Díky inteligentní flexibilitě instalace a snížení nákladů na údržbu i vlastnictví je projektor MW826ST ideální volbou pro dnešní školy.

x Pokročilé protiprachové řešení se součástmi bránícími usazování prachu
x Technologie úspory energie SmartEco
x Krátký projekční poměr 0,49
x Navržen pro vzdělávání a školení
x Podpora Blu-ray Full HD 3D
x Kompatibilita s interaktivním řešením PointWrite

Projection System DLP

Native Resolution 1280x800 pixels

Brightness (ANSI Lumens) 3,500 ANSI Lumens

Contrast Ratio 20,000:1

Display Color 1.07 Billion

Lens F/#=2.6, f=6.9mm

Aspect Ratio Native 16:10 (5 aspect ratio selectable)

Throw Ratio 0.49

Image Size (Diagonal) 60”-120”

Zoom Ratio Fixed

Keystone Adjustment 1D; Vertical ± 30 degrees

Projection Offset** 105%

Resolution Support
VGA(640 x 480) to WUXGA_RB(1920 x 1200) * RB= Reduced blanking

Horizontal Frequency 15K -102KHz

Vertical Scan Rate 23-120Hz

HDTV Compatibility 480i, 480p, 576i, 576p, 720p, 1080i, 1080p

Video Compatibility NTSC, PAL, SECAM

Weight 2.6 kg

Dimensions (W x H x D mm) 296*120*239 mm

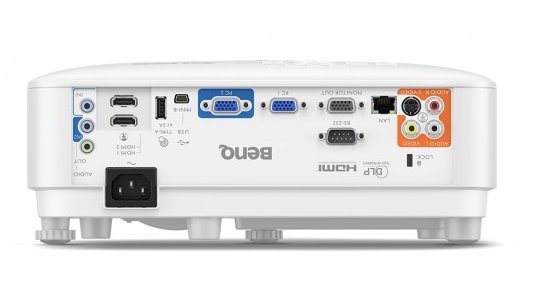

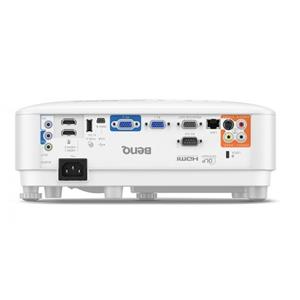

Interface
HDMI x 2 (HDMI-2 share with MHL)
PC In (D-sub 15pin) x 2 (share with component video)
Monitor Out (D-sub 15pin) x 1
Composite Video In (RCA) x 1
S-Video In x 1
Audio In (mini jack) x 2
Audio L/R In (RCA) x 1
Audio Out (mini jack) x 1
LAN RJ45 x 1 (LAN control)
RS232 (DB-9pin) x 1
USB (type A) x1 (power only 5V/1.5A)
USB (type mini B) x 1
IR Receiver x2 (front, top)

Power Consumption Typical 260W

Network Standby<2W, Standby<0.5W

Audible Noise (Normal/Economic Mode) 33/29 dBA

Power Supply AC100V to 240V, 50Hz to 60Hz

DMD type DC3 DMD Chip

Light Source Lamp (200W)

Light Source Life 5000/10000/10000/15000 hours (Normal/Eco/SmartEco/Lampsave mode)

Build in Speaker 10W x 1

Operating Temperature 0° ~ 40°C

Security Kensington Lock, Security Bar

On-Screen Display Languages Arabic/ Bulgarian/ Croatian/ Czech/ Danish/ Dutch/ English/ Finnish/ French/ German/ Greek/ Hindi/ Hungarian/ Italian/ Indonesian/ Japanese/ Korean/ Norwegian /Persian/ Polish/ Portuguese/ Romanian/ Russian/ Simplified Chinese/ Spanish/ Swedish/ Turkish/ Thai/ Traditional Chinese/ Vietnam (30 languages)

Accessories (Standard)
Remote Control w/ Battery RCE013 x 1
Power Cord (by region)
Quick Start Guide
User Manual CD x 1
Warranty Card (by region)

Accessories (Optional)
Spare Lamp Kit
3D Glasses DGD5
PointWrite Kit PW02
PointWrite Touch Module PT12
Wall Mount

*Lamp life results will vary depending on environmental conditions and usage. Actual product's features and specifications are subject to change without notice.
**Offset is calculated by full screen height.
