Display
Screen Size 32
Panel Type IPS
Backligh Technology LED backlight
Resolution (max.) 3840 x 2160
Brightness 250
Native Contrast(typ.) 1000:1
Viewing Angle (L/R;U/D) (CR>=10) 178 / 178
Response Time 5 ms (GtG)
Refresh Rate 60Hz
Aspect Ratio 16:9
Display Colors 1.07 billion colors
Color Gamut 99% AdobeRGB, 95% P3, 100% sRGB
Display Area(mm) 708.48 x 398.52
Pixel Pitch (mm) 0.1845
PPI 137
DCR (Dynamic Contrast Ratio) (typ.) 20M:1
Color Bit 10bits

Audio
Headphone Jack Yes

Monitor
Segment Photographer
Product Color Gray
Color Mode Adobe RGB / sRGB / Rec.709 / DCI-P3 / Display P3 / M-book / B+W / HDR / Calibration 1 / Calibration 2 / Calibration 3 / Custom / Paper Color Sync / DICOM
HDR HDR10 / HLG
Display Mode Full, Aspect Ratio, 1:1
Color Temperature 5000°K / 6500°K/ 9300°K / Custom / User Defined
Gamma 1.6 - 2.6, sRGB
K Locker Yes
OSD Language 18 Languages (English / French / German / Italian / Spanish / Polish / Czech / Hungarian / Romanian / Dutch / Russian / Swedish / Protuguese / Japanese / Chinese / S-Chinese / Arabic/ Korean)
PIP/PBP Yes
HDCP 2.2
VESA Wall Mount 100x100mm
AMA Yes
Display Screen Coating Anti-Glare / Anti-Reflection

Professional
3D-LUT 16bits
Delta E <= 2 ( avg)
Uniformity Technology Yes
Hardware Calibration Yes
Video Format Support Yes
Gamut Duo Yes
Black & White mode Yes
Black Level Yes
Hotkey Puck G2 Yes
Factory Calibration Report Yes

Connectivity
HDMI HDMI (v2.0) x 2
DisplayPort DisplayPort (v1.4)
USB 3.1 Hub USB Downstream x 2
USB 3.1 Hub USB Upstream x 1
USB Type-C Yes (PD60W, DP Alt mode, Data)
Card Reader SD/MMC type
Support Format: SD/SDHC/SDXC/MMC

Power
Voltage Rating 100~240V
Power Supply Built-in
Power Consumption (on mode.) 170W
Power Consumption 52W
Power Consumption (stand by mode) 0.5W
Power Consumption (sleep mode) 0.5W

Dimension and Weight
Dimensions (HxWxD mm) (w/o Base) (with shading hood) 453.45 x 759.4 x 257.89
Dimensions(HxWxD mm) (without shading hood)
Landscape: 502.25-652.25 x 747.2 x 223.61
Pivot: 798.6 x 448.15 x 223.61
Dimensions (HxWxD mm) (w/o Base) 448.15 x 747.2 x 77.82
Dimensions (HxWxD mm)
Landscape: 513.65-663.65 x 759.4 x 340.53
Pivot: 811.5 x 460.35 x 340.53
Net Weight (kg) (without shading hood) 11.8
Net Weight (kg) (without stand)
Landscape: 9.1
Pivot: 9.4
Net Weight (kg)
Landscape: 13.2
Pivot: 13.5
Gross Weight (kg) 25.6
Tilt (down/up) -5°/- 20°
Swivel (left/right) 45/45

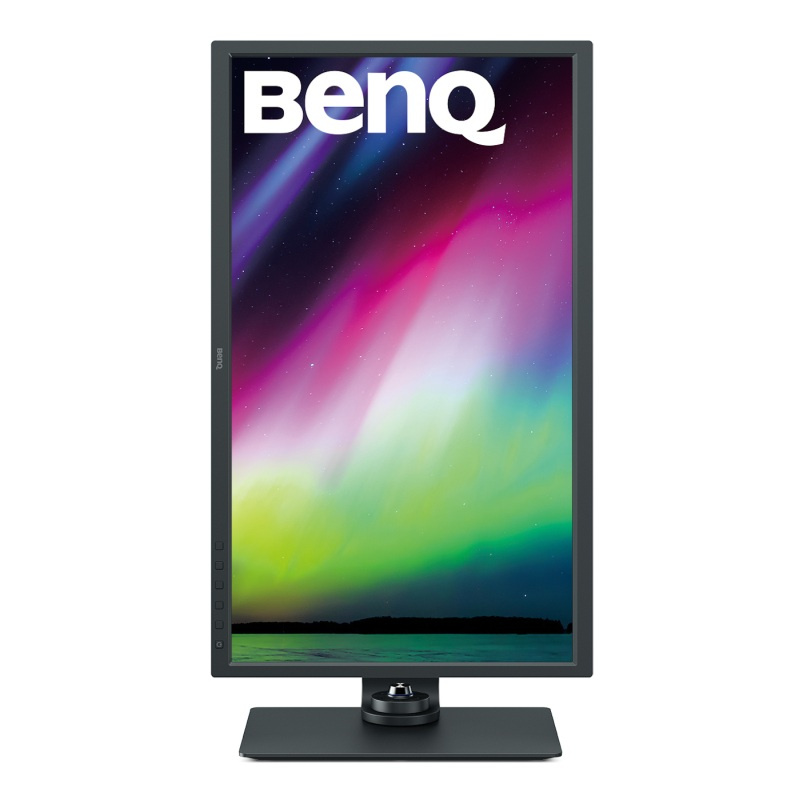

Pivot 90°
Height Adjustment (mm) 150mm

Software
Palette Master Element Yes
Support Calibrator X-Rite il Display Pro / il Pro /il Pro 2 /il Studio/ ColorMunki Photo, Datacolor Spyder 4/ Spyder 5/ Spyder X
* Note. MacOS 10.15 update:
(a) Spyder 4 / il Display 2 not supported by macOS 10.15
(b) Spyder 5 will be supported macOS 10.15 in future PME software update


Video Signal Data
Hor. Frequency (kHz) 27~140 kHz
Ver. Frequency (Hz) 24~76 Hz
Video Bandwidth (MHz) 600M Hz

Included Accessories
Other Accessories Shading hood, CD, QSG, Factory Calibration Report ,Hotkey Puck G2
Power Cable Yes(1.8m)
Signal Cable USB type-C cable(1m), mDP to DP cable (1.8m), HDMI 2.0 cable (1.8m), USB 3.1 cable (Gen 1)(1.8m)

Reliability
MTBF(hr, exclude backlight) 60000
Operating Temperatur 0°C - 40°C
Operating Humidity (non-condensing) 10% - 90%
Backlight Life (hr) Typical 30000

Compatibility
Mac Compatible Yes
Windows® Compatible Windows®10, Windows®8.1, Windows®8, Windows®7

Certification
Verified by CalMAN Yes
Pantone Validated Yes
