Display
Brightness (ANSI lumens)
2800
Native Resolution
WXGA (1280x800)
Native Aspect Ratio
16:10
Contrast Ratio (FOFO)
20,000:1
Display Color
30-bit (1.07 billion colors)
Light Source
4LED
Light Source Life
a. Normal 20000 hrs, b. ECO 30000 hrs
Optical
Throw Ratio
0.72-0.87
Zoom Ratio
1.2x
Projection Offset (Full-Height)
100%
Keystone Adjustment
2D, (Auto) Vertical ± 30 degrees; Horizontal ± 30 degrees
Rec. 709 Coverage
95%
Picture Modes
Bright, Golf, Presentation, sRGB, User 1, User 2, Video
Compatibility
Input Lag
33.4 ms (1080P 60Hz)
Resolution Support
VGA(640 x 480) to WUXGA_RB(1920 x 1200) *RB=Reduced blanking
Horizontal Frequency
15K~102KHz
Vertical Scan Rate
23~120Hz

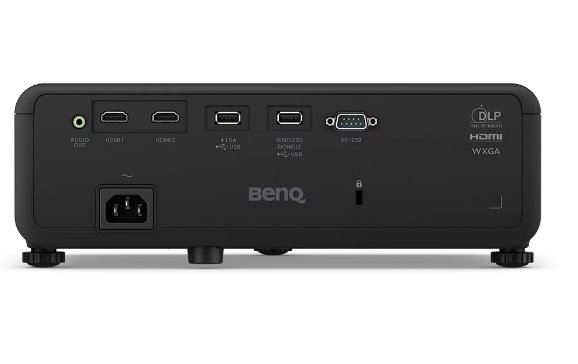

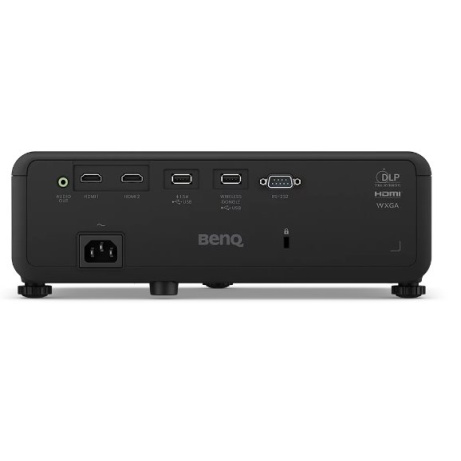

I/O Interface
HDMI in
HDMI-1 (1.4a/HDCP1.4), HDMI-2 (1.4a/HDCP1.4)
USB Type A
USB Type A-1 (2.0/Power Supply1.5A)
Audio
Speaker
(x1), 10W
Environment
Operating Temperature
0~40?
Power Supply
AC 100 to 240 V, 50/60 Hz
Typical Power Consumption (110V)
215W
Stand-by Power Consumption
<0.5W
Acoustic Noise (Typ./Eco.)(dB)
34dBA/28dBA
Accessories
Wireless USB dongle
(Optional)
Remote Control w/ Battery
RCX016
Power Cord (by region)
x1 (1.8M)
3D Glasses
DGD5
Quick Start Guide
(x1) 21L
Warranty Card (by region)
Yes
Lens cover
Yes
Universal Ceiling Mount
(Optional), CM00G3
Smart System
Wi-Fi Standard
802.11b/g/n (2.4G/5G)
Dimension & Weight
Dimension & Weight
303.5*107.4.*220.7
Net Weight (kg)
2.65
Net Weight (lb)
5.84
Projection System
Projection System
DLP
