Video Session Recorder
CCVSR

The Control Center Video Session Recorder (CCVSR) is ATEN´s innovative software designed to securely record the video and operation of computers accessed through KVM over IP Switches. The software automatically records a video of the screen display and logs all key-strokes and mouse clicks when computers are accessed through KVM ports.

The CCVSR is developed to work with ALTUSEN KVM over IP Switches without the need to install agent software on all computers. The software can be installed and managed from a single computer which will automatically capture and save video recordings for you. Simply set the CCVSR software to record ports on a KVM switch and it automatically creates a video recording every time the computers are accessed. The CCVSR supports recording across multiple KVM over IP Switches and multiple KVM ports* can be recorded at the same time.

The CCVSR deployment is highly scalable and flexible. It supports single or multiple CCVSR servers giving IT managers the ability to start small and expand gradually. A simple license policy reduces the complexity of upgrades. The single portal and single IP design for multiple CCVSR servers mitigates management. Disk space management is automatically controlled by the CCVSR to eliminate the need of manual disk administration.

The CCVSR is an ideal management tool to accompany any KVM installation. The software records operations from the BIOS to logging in; from running software applications to configuring any part of the operating systemall actions are recorded and saved without exception. It´s also a great tool for administrators to easily generate step by step instructional videos for any system procedure.

The CCVSR is a great tool for capturing evidence or tracing issues for immediate troubleshooting and faster problem resolution. The software can help monitor compliance control and auditing efficiently. It quickly helps IT managers know what every remote KVM user, internal KVM user, or IT service contractor is doing on the servers, with full coverage of all actions; saved in a bulletproof system for future auditing.

KVM session recording – automatically create complete recordings of a computer´s operations
¦ Records a video of the screen display as well as logs the operations of keystrokes and mouse clicks
¦ Recordings are saved to an indexed database for advanced searching.
¦ Search functions with keyword filters for retrieving video recordings
¦ Supports high quality video recording – with video resolutions up to 1920 x 1200 with 24-bit color depth
¦ Supports recording on multiple KVM over IP Switches
¦ Simultaneously records and plays the operation of multiple KVM ports*
¦ Special video player tools with proprietary format and video record export function with password protection for enhanced security
¦ Automatic disk space management
¦ Automatically runs software as daemon service in the background NEW!
¦ IP Filter for enhanced protection
¦ System event notifi cation via SMTP email; SNMP trap and Syslog support
¦ Confi gurable user and group permissions–for search, play, system management, record management, and save management
¦ Port level permissions – users can only view ports they have been authorized on
¦ Supports device level event logs
¦ Multilanguage GUI Supports: English, Traditional Chinese, Simplified Chinese, Japanese, and Korean NEW!
¦ Multi-browser support: Internet Explorer, Chrome, Firefox, Safari, Opera, Mozilla
¦ Supports TLS 1.2 data encryption and RSA 2048-bit certifi cates to secure user logins from browsers
¦ 3rd party remote authentication supports: RADIUS, LDAP, LDAPS, and MS AD Directory

* Up to 12 KVM sessions from 6 KVM devices can be recorded at one time when the recommended system requirements of the CCVSR server are met.
* Up to 64 KVM devices can be supported by one CCVSR.

Recommend System Requirements
¦ CPU: Intel® Core™ i5-3300 Desktop Processor Series (3rd Generation Intel® Core™ i5 Processors) or equivalent
¦ AMD CPU
¦ Memory: DDR3 2 GB RAM
¦ Network: Gigabit Ethernet Adapter
¦ OS: Windows 7/8/10**

Note: ** CCVSR does not support Windows XP with firmware V1.0.063 or later.
Package Contents
1x CCVSR USB License Key
1x Software CD
1x User Instructions

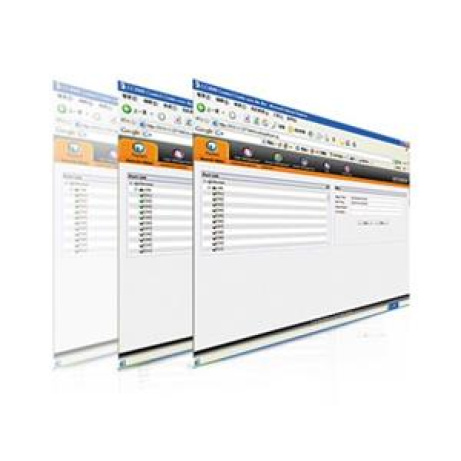

CCVSRAS1 (Archive Server License)
