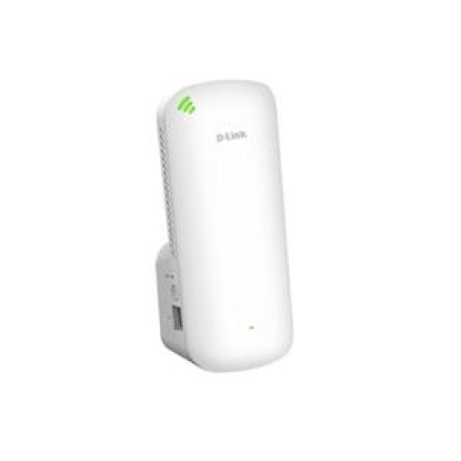

AX1800 Mesh Wi-Fi 6 Range Extender
- AX1800 Speeds up to 574Mbps (2.4GHz) + 1201Mbps (5GHz)
- 1 x GE LAN Port
- 2 x Internal antennas
- Seamless Network with 802.11k/v
- MU-MIMO Technology
- Auto-Firmware Upgrade
- Wi-Fi Protected Setup (WPS) Push button
- D-Link Wi-Fi Mesh Support
- Secure wireless Encryption using WPA, WPA2 or WPA3
- D-Link Wi-Fi APP Simple Setup and Management

Wi-Fi 6. The revolutionary leap for hyperconnected homes.
Extend your Wi-Fi to the furthest corners of your home and garden, so that you can truly experience next-generation Wi-Fi to the fullest. Watch, game and browse faster than ever before - with coverage throughout your entire home.

Rapid and reliable seamless Wi-Fi where you need it the most.

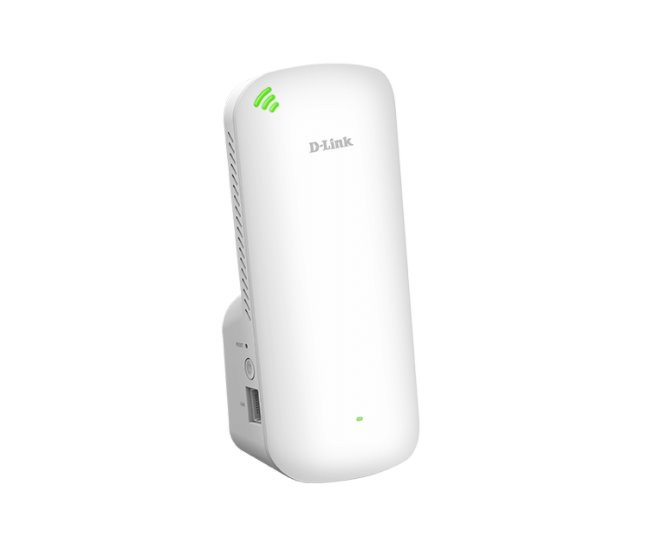

The DAP-X1860 is a portable wall-plug wireless extender that boosts your Wi-Fi network, including those using the latest Wi-Fi 6 technology. Simple to set up with a touch of a button and the visual Wi-Fi signal indicator will help you find the optimal spot in your home to experience high-speed Wi-Fi 6 on all your connected devices.

Upgrade your Internet to reach further
The DAP-X1860 enables you to extend your existing Wi-Fi to get an enormous coverage of up to 185 sqm, delivering next-gen Wi-Fi 6 speeds of up to 1.8 Gbps throughout every corner of your home.

OFDMA and MU-MIMO technology ensures your Internet bandwidth is utilised efficiently - so your devices can stay connected at the highest speeds possible, without putting a strain on your network.

Build a better network with D-Link Wi-Fi Mesh
Pair the DAP-X1860 with a compatible D-Link Wi-Fi Mesh router1 to create a whole-home mesh network that allows you to enjoy staying connected seamlessly throughout your entire home. What’s more, with support for Wi-Fi EasyMesh™ and the 802.11k/v standard for mesh smart roaming, you can use it with an even wider choice of compatible routers and extenders.

LED Wi-Fi Signal Strength Indicator
The visual Wi-Fi signal indicator allows you to see where the strongest and weakest Wi-Fi signal spots are around your home, helping you to identify the best possible location to place the extender for optimal network performance.

Easy connectivity
The DAP-X1860 is built to get you going immediately. Simply push the WPS on both the router and the Wi-Fi Extender and you’re good to go.

In addition, the Wi-Fi extender also offers a Gigabit Ethernet port, so you can connect a wired device that needs Internet connectivity, such as a game console or a Smart TV.

Stay protected from online threats with the latest in Wi-Fi Encryption
The DAP-X1860 supports WPA3 - the latest version of the Wi-Fi Protected Access (WPA) protocol that encrypts user data and protects wireless networks from outside threats. WPA3 includes a new protocol to verify authentication and secure your devices’ connections while further protecting your wireless network from attacks.

Easy setup, easy-to-use app
With the D-Link Wi-Fi app, you can set up and manage your DAP-X1860 straight from your smartphone or tablet.

General
Device Interfaces 10/100/1000 Mbps Ethernet port, Reset button, WPS
button
LEDs Power Status/WPS
3 segment Wi-Fi Signal Strength Indicator
Antennas Two internal antennas
Plug Type EU
Functionality
Wireless IEEE Standard IEEE 802.11n/ac/ax
Data Signal Rate 2.4 GHz (up to 574 Mbps), 5 GHz (up to 1200 Mbps)1
Security Protocol WPA/WPA2™ - Personal, WPA2/WPA3 - Personal, WPA3
Only, WPS (PBC)
Mesh Wi-Fi EasyMesh™, IEEE 802.11k/v, D-Link Wi-Fi Mesh
Software
Device Management D-Link Wi-Fi app (iOS and Android), Web UI
Features D-Link One-Touch extender setup
Physical
Power Input 110 to 240 V AC, 50/60 Hz
Max. Power Consumption 9.7 W ± 5%
Operating Temperature 0 to 40 °C
Storage Temperature -20 to 70 °C
Operating Humidity 10% to 90% non-condensing
Storage Humidity 5% to 95% non-condensing
Weight 293 g
Dimensions 165 x 75 x 60 mm
Certifications FCC, IC, CE
