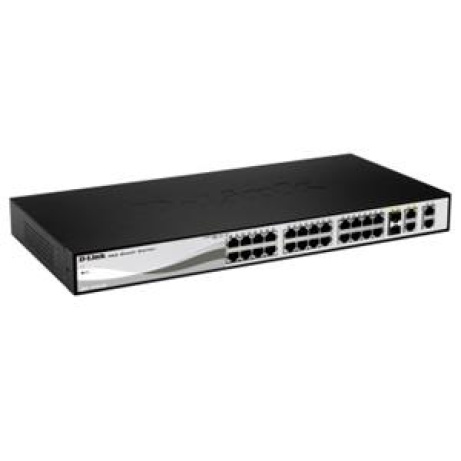

DGS-1210-28MP: 28-Port Gigabit Max PoE Smart Managed Switch including 4 SFP ports (24 x PoE ports, fan)
Features

Green Technology

Power saving via the following features:
Link Status detection
LED Shut-Off
Port Shut-Off
System Hibernation
Time-based PoE (DGS-1210-10P/28P/52P/52MP only)

Security Features

Access Control List secures network
D-Link Safeguard Engine protects CPU from Broadcast/Multicast/Unicast Flooding
Port Security supports 64 MACs per port
ARP Spoofing Prevention

Intuitive Management

D-Link Network Assistant Utility or Web-based GUI
Built-in SNMP MIB for remote NMS (D-View 6.0)
Compact CLI through Telnet

Advanced Features

Auto Surveillance VLAN
Loopback Detection automatically disables a port when a loop is detected
Cable Diagnostics allows administrators to determine cable status
SFP ports for flexibility
Auto MDI/MDIX

Interface

Number of 10/100/1000BASE-TX ports
DGS-1210-28/28P/28MP - 24 ports

Number of SFP ports
DGS-1210-20/28/28P/28MP/52/52P/52MP - 4 ports

PoE Supported Models (Standard(s)/Number of Ports/Maximum Power Budget)
DGS-1210-28MP (802.3af/802.3at/24 ports/370W)

Performance

Switch Capacity
DGS-1210-28/28P/28MP - 56 Gbps


64-Byte Packet Forwarding Rate
DGS-1210-28/28P/28MP - 41.7 Mpps


MAC Address Table Size

16K

Packet Buffer
DGS-1210-10/20/28/28P/28MP - 1.5 MB per device

Jumbo Frame

Up to 9,216 Bytes

Physical & Environmental

Power Consumption (Standby/Maximum)
DGS-1210-28MP - 33.1W / 454.4W (PoE)

Power Input

10 to 240 VAC, 50/60HZ internal universal power supply

Dimensions (W x D x H)
DGS-1210-28MP - 440 x 250 x 44 mm

Weight
DGS-1210-28MP - 3.86 kg

Ventilation
DGS-1210-28MP - smart fans

Heat Dissipation
DGS-1210-28MP - 1,552.32 BTU per hour


Temperature

Operating: -5° to 50°C (23° to 112°F)
Storage: -20° to 70°C (-4° to 158°F )

Humidity

Operating: 0% ~ 95% non-condensing
Storage: 0% ~ 95% non-condensing

Certification

CE Class A, VCCI Class A, FCC Class A, cUL, CE (LVD), BSMI, CCC, C-Tick

Software Feature

L2 Features

MAC Address Table
16K entries
IGMP Snooping
IGMP v1/v2 Snooping
Supports 256 IGMP groups
Supports at least 64 static multicast addresses
IGMP per VLAN
Supports IGMP Snooping Querier
Loopback Detection
802.3ad Link Aggregation:
DGS-1210 28/28P/28MP: Maximum of 14 groups/8 ports per group
DGS-1210 52/52MP/52P: Maximum of 26 groups/8 ports per group
DGS-1210 -10/10P: Maximum of 5 groups/8 ports per group
LLDP
LLDP-MED
Jumbo Frame
Up to 9,216 bytes
Spanning Tree Protocol
802.1D STP
802.1w RSTP
802.1s MSTP (for DGS-1210-28MP only)
Flow Control
802.3x Flow Control
HOL Blocking Prevention
Port Mirroring
One-to-One
Many-to-One
Supports Mirroring for Tx/Rx/Both
Multicast Filtering
Forwards all unregistered groups
Filters all unregistered groups
Configurable MDI/MDIX
MLD snooping v1/v2 (256 groups)

VLAN

802.1Q
VLAN Group
Max. 256 static VLAN groups
Configurable VID from 1 - 4094
Asymmetric VLAN
Auto Voice VLAN
Max. 10 user-defined OUI
Max. 8 default OUI
Auto Surveillance VLAN

Quality of Service (QoS)

802.1p Quality of Service
8 queues per port
Queue Handling
Strict
Weighted Round Robin (WRR)
Bandwidth Control
Port-based (Ingress/Egress, min granularity 10/100/1000 is 64 Kbps)
QoS based on:
802.1p Priority Queues
DSCP
ToS
IPv6 Traffic Class
TCP/UDP port

L3 Features

IP Interface
Supports 1 interface
IPv6 Neighbor Discovery (ND)
Static Routing (for DGS-1210-28MP only)
64 IPv4 Static Route Entries
32 IPv4 Static Route Entries

Access Control List (ACL)

Max. 50 access list
Max. 768 rules shared by IPv4, MAC and IPv6
Each rule can only be associated with a single port
ACL based on
802.1p priority
VLAN
MAC address
Ether type
IP address
DSCP
Protocol type
TCP/UDP port number
IPv6 Traffic Class

Security

Broadcast/Multicast/Unicast Storm Control
D-Link Safeguard Engine
DHCP Server Screening
IP-MAC-Port Binding (Smart Binding)
Supports 512 address binding entries
ARP Inspection
ARP + IP Inspection
Supports DHCP Snooping
802.1X Port-based Access Control
ARP Spoofing Prevention
Max. 64 entries
Traffic Segmentation
SSH v2
SSL
Su
