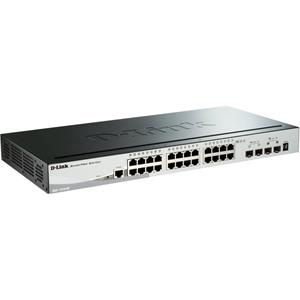

DGS-1510-28P - 24 10/100/1000 Mbps PoE capable, 2 Gigabit SFP, 2 10G SFP+
28 Port Gigabit SmartPro Switch

OVERVIEW
The DGS-1510 Series is D-Link’s latest generation of SmartPro switches with 10G port connectivity, making them ideal for deployment in SME/SMB core environments. The DGS-1510 Series provides a reliable, scalable, and modular interconnection between core switches and edge switches with rich capabilities and simplified flexibility. Available in 16, 24 or 48 10/100/1000 Mbps port models, these switches also include 2 Gigabit SFP ports and 2 10G SFP+ ports.

SPECIFICATIONS
GENERAL
Port Standards & Functions
• IEEE 802.3 10BASE-T Ethernet
• IEEE 802.3u 100BASE-TX Fast Ethernet
• IEEE 802.3ab 1000BASE-T Gigabit Ethernet
• 802.3ae 10 GbE,
• IEEE 802.3x Flow Control for Full-Duplex Mode,
• Auto-negotiation

Number of Ports
• DGS-1510-28P - 24 10/100/1000 Mbps PoE capable, 2 Gigabit SFP, 2 10G SFP+

Network Cables

UTP Cat. 5, Cat. 5e (100 m max.)
EIA/TIA-568 100-ohm STP (100 m max.)

Full/Half Duplex

Full/half duplex for 10/100 Mbps and Gigabit speed

Media Interface Exchange

Auto or configurable MDI/MDIX

Performance

Switching Capacity

DGS-1510-28P - 92 Gbps

Transmission Method

Store-and-forward

MAC Address Table

16,000 entries per device

MAC Address Update

Up to 512 static MAC entries
Enable/disable auto-learning of MAC addresses

Maximum 64 bytes Packet Forwarding Rate
DGS-1510-28P - 68.45 Mpps


Packet Buffer Memory

DGS-1510-20/28/28X/28P/28XMP - 1.5 MB per device


PoE (DGS-1510-28P

PoE Standard

IEEE 802.3af, 802.3at

PoE Capable Ports

Ports 1 to 24: Up to 30 W

PoE Power Budget

DGS-1510-28P - Max. 193 W


Physical & Environment

AC Input

100 to 240 VAC 50/60 Hz internal universal power supply

Maximum Power Consumption

DGS-1510-28P – 238.7 W (PoE on), 29 W (PoE off)

Standby Power Consumption

DGS-1510-28P -21 W

Smart Fan Quantity

DGS-1510-28P/28XMP/52/52X – 2

Acoustics

DGS-1510-28P – 46.4 dB(A)

Heat Dissipation

DGS-1510-28P – 813.967 BTU/hr


Operation Temperature

-5 to 50 °C (23 to 122 °F)

Storage Temperature

-20 to 70°C (-4 to 158 °F)

Operation Humidity

0% to 95% non-condensing

Storage Humidity

0% to 95% non-condensing

Dimensions

DGS-1510-28P - 440 x 250 x 44 mm (17.36 x 9.84 x 1.73 inches)

Weight

DGS-1510-28P – 2.54 kg


Diagnostic LEDs

Power/Stacking ID/Fan (per device)
Power/Stacking ID/Fan Error/PoE Push Button (per device) (for DGS-1210-28P only)
Link/Activity/Speed (per 10/100/1000 Mbps port)
Link/Activity/Speed/PoE Mode (per 10/100/1000 Mbps port) (for DGS-1210-28P only)
Link/Activity/Speed (per Gigabit SFP port)
Link/Activity/Speed (per 10G SFP+ port)

Certifications

CE
FCC
C-Tick
VCCI
BSMI
CCC

Safety

cUL
CB

Software Features

Stackability

Virtual Stacking Support
D-Link Single IP Management
Up to 32 devices per virtual stack
Up to 20G stacking bandwidth
Physical Stacking1
Supports Duplex Chain/Ring topology
Up to 40G stacking bandwidth full duplex
Up to 6 units per stack

L2 Features

MAC Address Table: Up to 16,384
Flow Control
802.3x Flow Control
HOL Blocking Prevention
Jumbo Frame up to 9,216 Bytes
IGMP Snooping
IGMP v1/v2 Snooping
IGMP v3 awareness
Supports 512 IGMP groups
Supports 128 static multicast addresses
IGMP per VLAN
Supports IGMP Snooping Querier
Host-based IGMP Snooping Fast Leave
MLD Snooping
Supports MLD v1/v2 awareness
Supports 512 groups
Supports 128 Static Multicast Addresses
Per VLAN MLD Snooping
Host-based MLD Fast Leave
MLD Snooping Querier
Spanning Tree Protocol
802.1D STP
802.1w RSTP
802.1s MSTP
Loopback Detection v4.072
802.3ad Link Aggregation
Max. 32 groups per device/8 ports per group
Port Mirroring
Support 4 mirroring groups
One-to-One, Many-to-One
Supports Mirroring for Tx/Rx/Both
Multicast Filtering
Forwards all unregistered groups
Filters all unregistered groups
Ethernet Ring Protection Switching (ERPS)

VLAN

802.1Q Tagged VLAN
4K VLAN Groups
Configurable VID: 0~4094
GVRP
Asymmetric VLAN
Auto Voice VLAN
Auto Surveillance VLAN 2.02
MAC-based VLAN
Protocol-based VLAN
