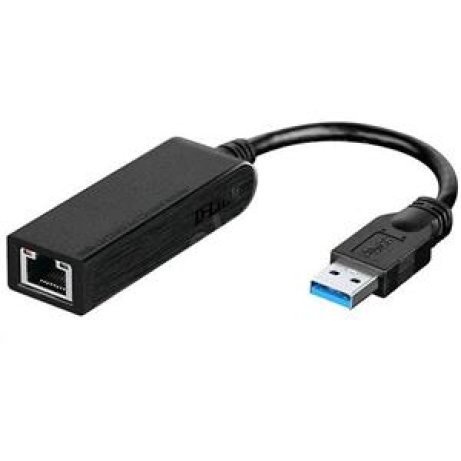

D-Link DUB-1312
USB 3.0 Gigabit Ethernet Adapter

OVERVIEW
The DUB-1312 USB 3.0 Gigabit Ethernet Adapter allows you to instantly add gigabit connectivity to your desktop, notebook, or netbook computer. Combining SuperSpeed USB 3.0 with Gigabit Ethernet connectivity, you can transfers large files in no time, stream high definition movies without buffering, or make light work of backups to a server or network storage device. Simply plug the DUB-1312 in to an available USB 3.0 port and you’re ready to connect to your network with the speed and reliability of a wired gigabit connection. The DUB-1312 is also fully backwards compatible with previous USB standards.

FEATURES
Gigabit Connectivity
• Achieve transfer speeds of up to 1 Gbps
• Status LEDs for connection status and data transfer speed

USB 3.0 with Simple Installation
• Simply plug in, install the included software, and you’re ready to go1
• No additional hardware installation required, leaving expansion slots free for other uses
• Small and compact design makes it easy to take with you wherever you go
• Fully backwards compatible with previous USB standards

Dynamic Power Management
• Reduces power consumption during times of light traffic, when idle, or when the Ethernet cable is unplugged
• Supports the built-in power-saving features of the USB 3.0 standard
• Especially useful for battery-powered notebook and netbook computers

SPECIFICATIONS
CONNECTIVITY
Device Interfaces
• RJ-45 Ethernet Port (10/100/1000 Mbps)
• USB Type A Connector

LEDs
• Speed (orange)
• Link/ACT (green)

Standards
• USB Specification Version 3.0
• USB Specification Version 2.0
• USB Specification Version 1.1
• USB Specification Version 1.0
• OHCI (Open Host Controller Interface), EHCI (Enhanced Host Controller Interface)
• IEEE 802.3 Ethernet
• IEEE 802.3u 100BASE-T, TX, and T4 compatible
• Supports suspended mode and remote wakeup
• Supports full and half duplex in gigabit Ethernet mode

GENERAL
Minimum System Requirements
• Operating system: Microsoft Windows 8/7/Vista/XP SP3
• Mac OS 10.6 to 10.8
• Linux kernel 2.6.14x or above

Power Management
• Advanced Power Management reduces power usage during idle or light traffic periods

PHYSICAL
Dimensions
• 74.4 x 21 x 16 mm

Weight
• 46.4 grams

Power
• Input: Bus-powered 500 mA, 5 V DC
• Consumption: 150 mA, 3.3 V DC

Temperature
• Operating: 0 to 45 °C
• Storage: -20 to 70 °C

Humidity
• Operating: 10% to 90% non-condensing
• Storage: 5% to 90% non-condensing

Certifications
• CE
• FCC
