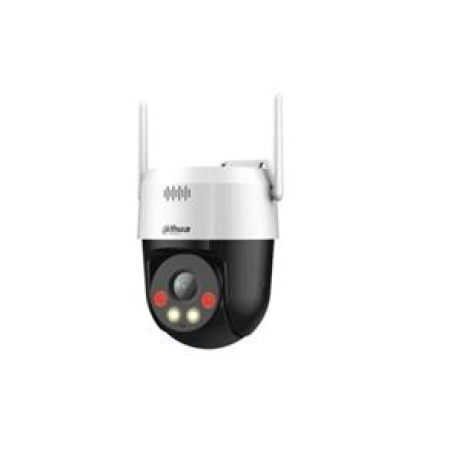

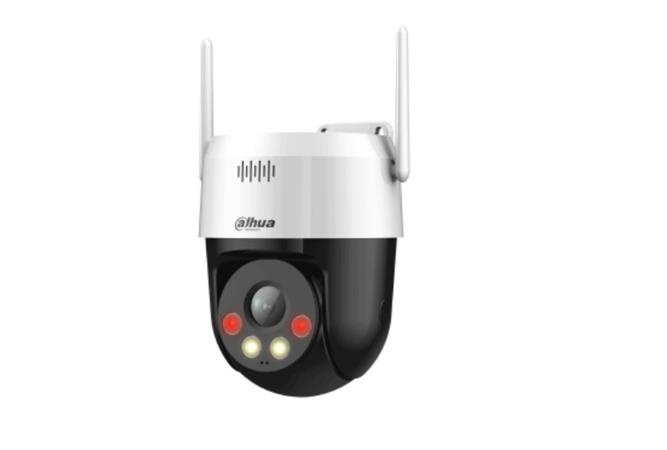

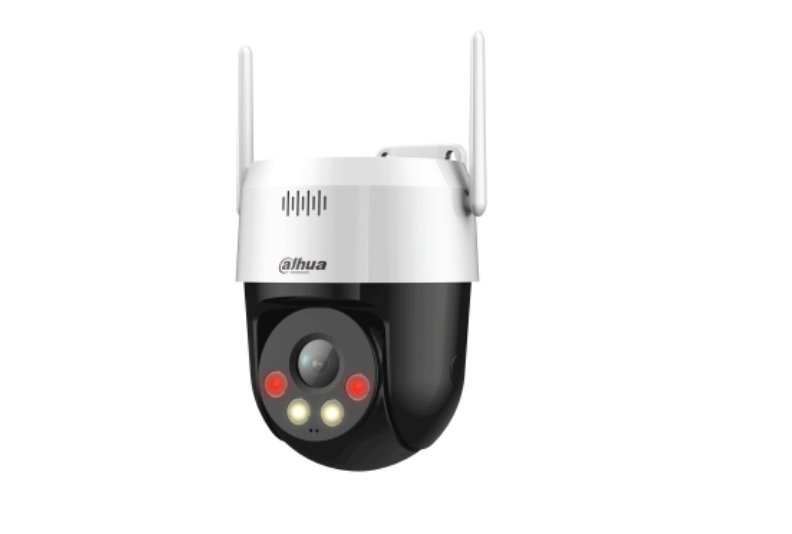

5MP Wireless Network PT Camera

Series Overview

The Active Defense series of small PT cameras raises the bar on performance. After detecting an intrusion, it triggers sound and light alarms, and then instantly relays vital information on the intrusion to the mobile client, keeping you informed no matter where you are. It supports two-way talk, allowing you to communicate with people in front of the camera in real time.It also can record full-color videos and information of key events using Smart Dual Illuminators, effectively reducing light pollution.

Camera

Image Sensor
1/2.8" CMOS

Pixel
5 MP

Max. Resolution
2560 (H) × 1920(V)

Electronic Shutter Speed
1 s–1/100,000 s

Illuminator Number
2 (IR light); 2 (warm light)

Lens
Focal Length
4.0 mm

Max. Aperture
F1.6

Field of View
4.0 mm: H: 80.4°; V: 58.1°; D: 104.8°

Close Focus Distance
4.0 mm: 0.3 m (0.98 ft)

PTZ
Pan/Tilt Range
Pan: 0° to 345°;
Tilt: 0° to +80°

Preset
300

Smart Event
IVS
Tripwire; intrusion; linkage tracking

Human Detection
Yes

SMD
SMD3.0

Active Deterrence
Light Warning

Warm light warning;
Flash duration: 5 s–30 s;

Flash frequency: high, medium, low
Sound Warning
Offers 1 sound alarm and 10 custom sound alarms can be imported;
Sound can be set from 0%–100%;
Play times can be set from 1-10.

Video
Video Compression
Smart H.265+;H.265;Smart H.264+;H.264B;H.264M;H.264H;MJPEG(Sub Stream 1)

Resolution
5M (2560 × 1920); 4M (2560 × 1440); 3M (2304 × 1296); 1080p (1920 × 1080); 720p (1280 × 720); D1 (704 × 576/704 × 480); CIF (352 × 288/352 × 240)

Video Frame Rate
Main stream: 5M/4M/3M/1080p/1.3M/720p@(1–25/30 fps)

Sub stream 1: D1/VGA/CIF@(1–25/30 fps)
Main stream: 5M/4M/3M/1080p/1.3M/720p@(1–25/30 fps)

Sub stream 1: D1/VGA/CIF@(1–25/30 fps)
Video Bit Rate

H264: 104 kbps-8,192 kbps
H265: 41 kbps-8,192 kbps

Day/Night
Auto (ICR); Color/B/W

WDR
DWDR

Image Rotation
180°

Audio
Audio Compression

PCM; G.711a; G.711Mu; G.726;
Network
Network Port
RJ-45 (10/100 Base-T)

Wi-Fi Standard
IEEE802.11b;IEEE802.11g;IEEE802.11n

Wi-Fi Frequency Range
2.4 GHz

Power Transmission
?20 dBm@2400–2483.5 MHz

Storage
Micro SD card (256 GB); FTP

Browser
IE: IE 7 and later versions; Chrome; Firefox; Safari

Management Software
Smart PSS;DMSS;Player;ConfigTool;NVR;Smart Player

Mobile Client
iOS;Android

Certification
Certifications
CE

Power
Power Supply
12 VDC, 1 A ± 10% (included)

Environment
Operating Temperature
–30 °C to +55 °C (–22 °F to +131 °F)

Operating Humidity
?95%

Structure
Product Dimensions
140.5 mm × ?111.0 mm (5.53" × ?4.37")

Net Weight
0.5 kg (1.10 lb)

Gross Weight
1 kg (2.20 lb)
