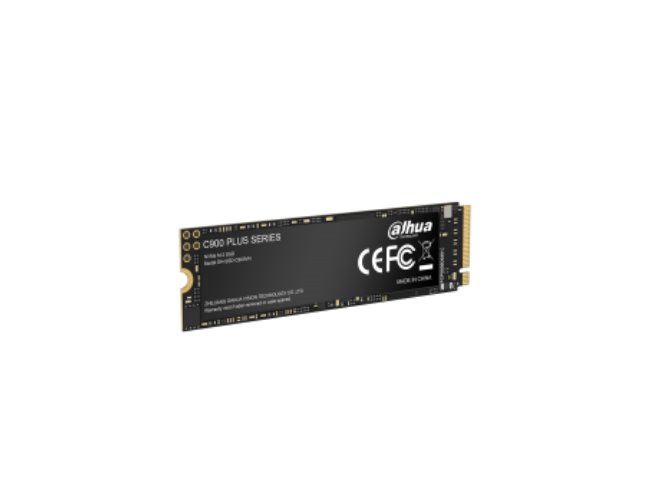

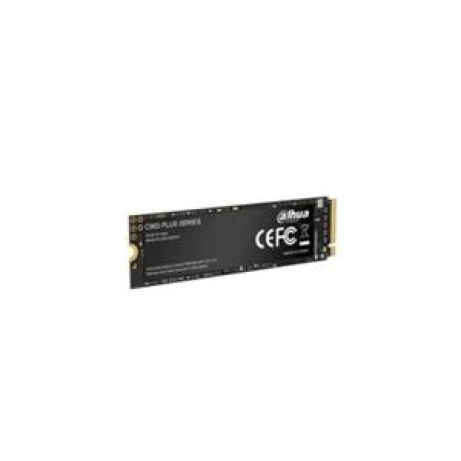

2TB PCIe Gen 3.0x4 SSD, High-end consumer level, 3D NAND
Read speed up to 3400 MB/s, Write speed up to 2900 MB/s
Operating Temperature 0~70°C, Storage Temperature -40~85°C
TBW 1600TB
3-year limited warranty

Basic Parameters
Application Scenarios As a new generation of NVME SSD product launched by Dahua, the C900 PLUS series adopt a high-quality 3D NAND wafer level chip and high-performance controller. Intelligent temperature control algorithm, It ensures that the controller and the flash memory chip can maintain stability and high performance for heavy workloads.
Capacity 2 TB
Form Factor M.2 2280
Port PCIe Gen 3.0 x 4
Net Weight Max. 8 g (0.02 lb)
Gross Weight Max. 60 g (0.13 lb)
Product Dimensions 80.00 mm × 23.00 mm × 4.80 mm (3.15" × 0.91" × 0.19")
Packaging Dimensions 130 mm × 104 mm × 17 mm (5.12" × 4.09" × 0.67")
Memory Component 3D NAND
Power Consumption 4.15 W (max); 0.06 W (idle)
Bus Type PCIe 3.0

Function
S.M.A.R.T Yes
TRIM Yes
Garbage Collection Yes

Performance
Sequential Read Up to 3400 MB/s
Sequential Write Up to 3000 MB/s
4K Random Read Up to 544300
4K Random Write Up to 403900

Environment
MTBF 1,500,000 hours
Operating Temperature 0°C to +70°C (+32°F to +158°F)
Storage Temperature –40°C to +85°C (–40°F to +185°F)
Operating Humidity 5%–95% (non-condensing)
Vibration Resistance 10-200Hz, 0.5G
Shock Resistance 1500G/0.5 ms (half sine wave)

Guarantee
TBW 2000 TB
Warranty 3-year limited warranty
