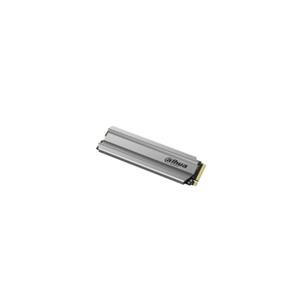

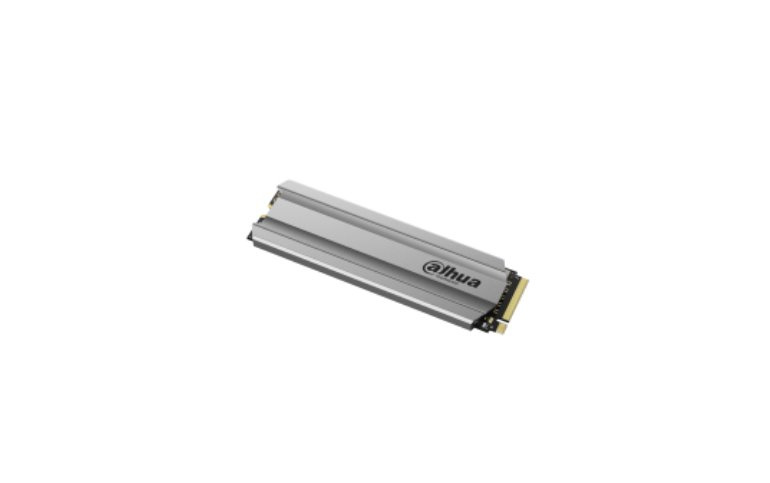

512GB PCIe Gen 3.0x4 SSD, High-end consumer level, 3D NAND
Read speed up to 3200 MB/s, Write speed up to 2500 MB/s
Operating Temperature 0~70°C, Storage Temperature -40~85°C
TBW 256TB
3-year limited warranty

Basic Parameters
Application Scenarios As a new generation of NVME SSD product launched by Dahua, the C900 PLUS series adopt a high-quality 3D NAND wafer level chip and high-performance controller. Intelligent temperature control algorithm, It ensures that the controller and the flash memory chip can maintain stability and high performance for heavy workloads.
Capacity 512 GB
Form Factor M.2 2280
Port PCIe Gen 3.0 x 4
Net Weight Max. 8 g (0.02 lb)
Gross Weight Max. 70 g (0.15 lb)
Product Dimensions 80.00 mm × 23.00 mm × 4.80 mm (3.15" × 0.91" × 0.19")
Packaging Dimensions 130 mm × 104 mm × 17 mm (5.12" × 4.09" × 0.67")
Memory Component 3D NAND
Power Consumption 3.689 W (max); 0.611 W (idle)
Bus Type PCIe 3.0

Function
S.M.A.R.T Yes
TRIM Yes
Garbage Collection Yes

Performance
Sequential Read Up to 3300 MB/s
Sequential Write Up to 2700 MB/s
4K Random Read Up to 175800
4K Random Write Up to 113900

Environment
MTBF 1,500,000 hours
Operating Temperature 0°C to +70°C (+32°F to +158°F)
Storage Temperature –40°C to +85°C (–40°F to +185°F)
Operating Humidity 5%–95% (non-condensing)
Vibration Resistance 10-200Hz, 0.5G
Shock Resistance 1500G/0.5 ms (half sine wave)

Guarantee
TBW 256 TB
Warranty 3-year limited warranty
