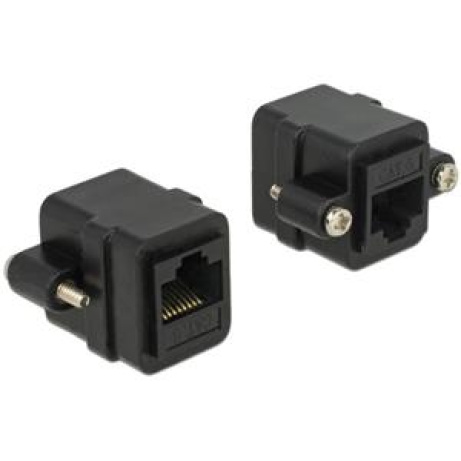

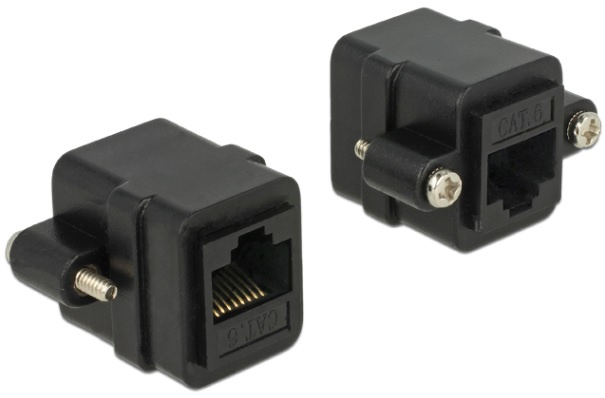

This adapter enables you to extend a network connection and can be used to connect various devices. The female port can be attached with two screws, e.g. to a slot bracket, a cable duct or an enclosure with the corresponding opening. This can be used to install a RJ45 jack at an easily accessible position.

Specification
• Connector:
RJ45 female > RJ45 female with screw nuts for installation
• Screw type: #4-40 UNC
• Mounting hole ca. 16.1 x 14.5 mm, screw hole pitch ca. 25 mm
• Cat.6 specification
• 1:1 connected
• Unshielded (UTP)
• Gold-plated connector
• Colour: black
• Dimensions (LxWxH): ca. 32 x 26 x 22.5 mm

System requirements
• One free RJ45 Port

Package content
• Adapter panel-mount
• 2 screws

Package
• Poly bag
