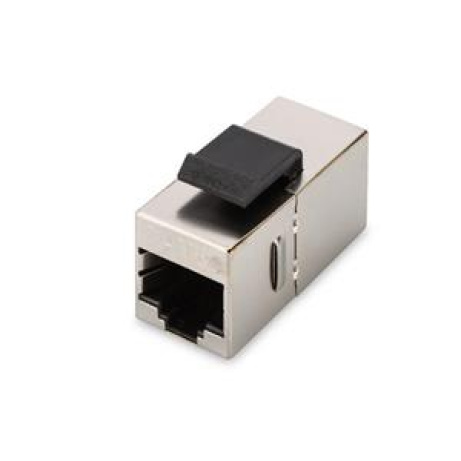

DIGITUS CAT 5e modular coupler, shielded RJ45 to RJ45, for panel connection

The modular couplers from DIGITUS® are shielded and provide best performance and link quality for your network. They
are equipped with 2 RJ45 sockets with the assignment 1:1 and are therefore suitable for mounting in Patch Panels.
l Transmission properties: Category 5e
l Area of application: Up to 100 MHz, 10/100Base-T, 1GBase-T
l Norms: ISO/IEC 11801 2nd Ed., EN 50173-1, EIA/TIA 568-C
l General properties:
l Suitable for 483 mm (19") cabinet mounting
l 2x RJ45 Female, 8P8C
l 360° shield coverage
l Connection 1:1
l Technical properties:
l Housing material: Zinc die-cast, nickel-plated
l RJ45 female material: ABS UL 94V-0
l RJ45 female contact: Tinned phosphor bronze, 0.5 ě gold-plated contact
l RJ45 shielding: Tinned bronze
l Conductor plate: FR4, UL 94V-0
l Physical properties:
l Insertion force: 30N max. (IEC 60603-7-5)
l Retention strength: 7.7 kg between jack and plug
l Operation temperature: -20° C to +70 °C (ISO/IEC 11801, EN 50173-1, ANSI/TIA/EIA 568 C)
l Mating cycles female: > 750 acc. to ISO/IEC 11801, IEC 60603-7-5
l Clamp: > 200 acc. to ISO/IEC 11801, IEC 60603-7-5
l IDC wire size: 22 – 26 AWG solid and stranded conductor
l Insulation resistance: > 500 MOhm
l Contact resistance: < 20 MilliOhm
l Dielectric strength: 1000
