Description

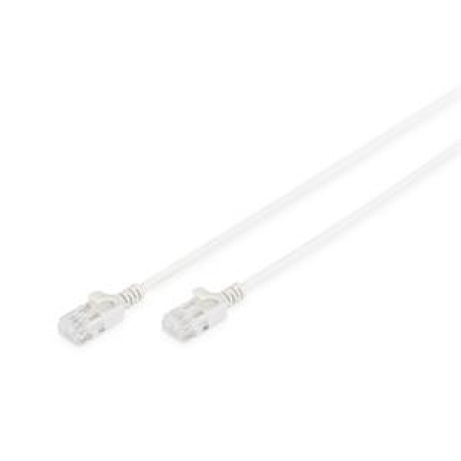

CAT 6 U-UTP slim patch cord, Cu, LSZH AWG 28/7, length 2 m, color Grau

Enables flexible and space-saving cabling in your network.
Small outer diameter of 3.65 mm is suitable for flexible use
With LSZH (low smoke zero halogen) outer sheath for best fire behaviour and low smoke emission.
Transparent red coloured metal shielded connector for easy identification of Category 6 (250 MHz)
Inner conductors: Copper (Cu)
DIGITUS® slim patch cables are characterised by their small outer diameter and flexible sheath. Slim design enables versatile use in your network. Moreover, DIGITUS® slim patch cables are manufactured according to ISO/IEC 11801 and DIN EN 50173 CAT 6 standards. They guarantee that the cable installation complies with the ISO & EN channel specification and provide excellent performance in DIGITUS® CAT 6 cabling. Performance was tested up to 250 MHz, including performance characteristics such as near-end crosstalk (“NEXT”). DIGITUS® patch cables were specifically designed to fully meet all requirements in various application areas. Each cable is equipped with a moulded anti-kink sleeve with strain relief. In addition, the sleeve has a locking lever protection, which prevents kinking of the cables and breaking-off of the locking lever from the connector. Category 6 is simply identified by the red coloured connectors.

Technical Details
2x RJ45 connectors (8P8C)
Covers with kink protection, strain relief and locking lever protection
Length indication on hoods
Inner conductors: Copper (Cu)
Halogen free: yes
Pin Assignment: 1:1
Category: 6
AWG cross-section: 28
Anti-kink sleeve: moulded
Connector 1 type: RJ45 8(8)
Connector 2 type: RJ45 8(8)
Cable design: 4x2
Flame retardant version: yes
Anti-kink sleeve colour: Grey
Locking lever protection: yes
NVP value: 76
Oil resistant to EN 60811-404: no
Bending radius: 4D (outer diameter x 4)
Sheath colour: Grey
Length: 2 m
Halogen free: yes
Cable type: U/UTP
Pin assignment: 1899-12-31 01:01:00.000
Length: 2
Colour outer sheath: Grey
Category: 6
AWG-size: 28
Anti-kink sleeve: Moulded-on
Type of connector connection 1: RJ45 8(8)
Type of connector connection 2: RJ45 8(8)
Cable construction: 4x2
Fire retardant version: yes
Colour anti-kink sleeve: Grey
Locking lever: yes
NVP value: 69

Package content
Slim CAT 6 U/UTP patch cable, PVC
