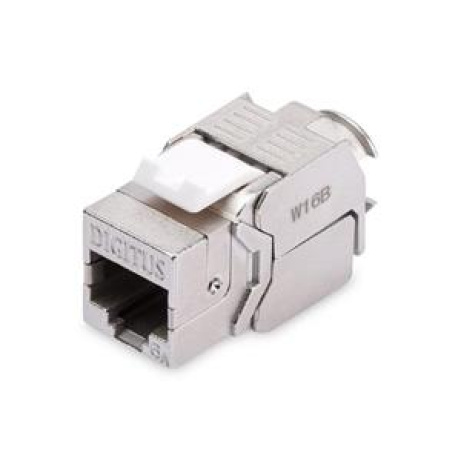

Digitus CAT 6A Keystone Jack, shielded,Re-embedded 500 MHz acc. ISO/IEC 11801:2002 AM2:2009/09, tool free connec., set 24 pcs
Výrobce:Digitus
Kód produktu:i26_344141
Part number:DN-93615-24
EAN:4016032373087
Záruka:23 měsíců
Dostupnost:
na dotaz
ZBOŽÍ NENÍ AKTUÁLNĚ SKLADEM. O SKLADOVÉ DOSTUPNOSTI SE INFORMUJTE NA EMAILU, NEBO SI NASTAVTE NÍŽE " SLEDOVAT CENU "
Popis
Parametry produktu

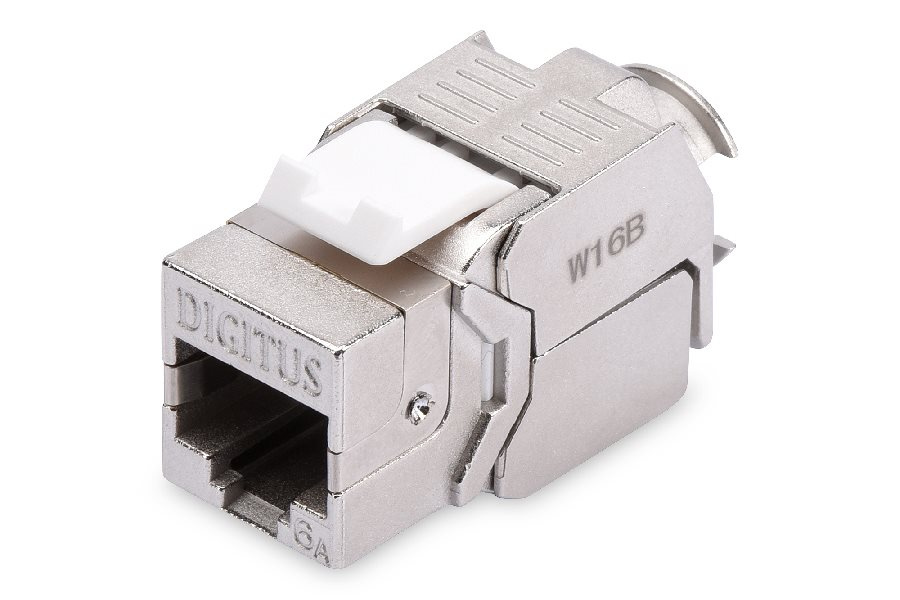

DIGITUS CAT 6A Keystone Jack, shielded,Re-embedded 500 MHz acc. ISO/IEC 11801:2002 AM2:2009/09, tool free connec., set 24 pcs
Quick and safe wire terminations without any special tool
The Item "DN-93615" of the brand DIGITUS® is a shielded CAT 6A Keystone Module with tool free installation which
provides best performance and link quality for your network. The compact design allows the installation of 24 pieces in a
row of 483 mm (19") 1U panels. It is conform to Category 6A / 10GBase-T Channel, ANSI/EIA/TIA 568C.2.1 :2002,
ISO/IEC 11801:2002.
l Transmission properties: Category 6A, Class EA
l Area of application: Up to 500 MHz, 10GBase-T
l Norms: ISO/IEC 11801 2nd Ed., EN 50173-1, EIA/TIA 568-C, 802.3af, 802.3at PoE+
l General properties:
l Suitable for patch panels and mounting outlets
l RJ45 female, 8P8C
l Cable installation via LSA strips, color coded according to EIA/TIA 568 A & B
l Cable fixing with cable tie
l Tool-free installation
l 360° shield coverage
l Dust cover included
l Technical properties:
l Housing material: Zinc die-cast, nickel-plated
l RJ45 female material: ABS UL 94V-0
l RJ45 female contact: Tinned phosphor bronze, 0.5 ě gold-plated contact
l RJ45 shielding: Tinned bronze
l LSA termination clamp: Krone LSA+, UL 94V-2, zinc plated phosphor bronze
l Conductor plate: FR4, UL 94V-0
l Physical properties:
l Insertion force: 30N max. (IEC 60603-7-5)
l Retention strength: 7.7 kg between jack and plug
l Operation temperature: -20° C to +70 °C (ISO/IEC 11801, EN 50173-1, ANSI/TIA/EIA 568 C)
l Mating cycles female: > 750 acc. to ISO/IEC 11801, IEC 60603-7-5
l Clamp: > 200 acc. to ISO/IEC 11801, IEC 60603-7-5
l IDC wire size: 22 – 26 AWG solid and stranded conductor
l Insulation resistance: > 500 MOhm
l Contact resistance: < 20 MilliOhm
l Dielectric strength: 1000 VDC (Contact/Contact), 1500 VDC (Contact/Ground)
l Dimensions (HxWxD): 20,14,34 mm
l Weight: 22 g
Quick and safe wire terminations without any special tool
The Item "DN-93615" of the brand DIGITUS® is a shielded CAT 6A Keystone Module with tool free installation which
provides best performance and link quality for your network. The compact design allows the installation of 24 pieces in a
row of 483 mm (19") 1U panels. It is conform to Category 6A / 10GBase-T Channel, ANSI/EIA/TIA 568C.2.1 :2002,
ISO/IEC 11801:2002.
l Transmission properties: Category 6A, Class EA
l Area of application: Up to 500 MHz, 10GBase-T
l Norms: ISO/IEC 11801 2nd Ed., EN 50173-1, EIA/TIA 568-C, 802.3af, 802.3at PoE+
l General properties:
l Suitable for patch panels and mounting outlets
l RJ45 female, 8P8C
l Cable installation via LSA strips, color coded according to EIA/TIA 568 A & B
l Cable fixing with cable tie
l Tool-free installation
l 360° shield coverage
l Dust cover included
l Technical properties:
l Housing material: Zinc die-cast, nickel-plated
l RJ45 female material: ABS UL 94V-0
l RJ45 female contact: Tinned phosphor bronze, 0.5 ě gold-plated contact
l RJ45 shielding: Tinned bronze
l LSA termination clamp: Krone LSA+, UL 94V-2, zinc plated phosphor bronze
l Conductor plate: FR4, UL 94V-0
l Physical properties:
l Insertion force: 30N max. (IEC 60603-7-5)
l Retention strength: 7.7 kg between jack and plug
l Operation temperature: -20° C to +70 °C (ISO/IEC 11801, EN 50173-1, ANSI/TIA/EIA 568 C)
l Mating cycles female: > 750 acc. to ISO/IEC 11801, IEC 60603-7-5
l Clamp: > 200 acc. to ISO/IEC 11801, IEC 60603-7-5
l IDC wire size: 22 – 26 AWG solid and stranded conductor
l Insulation resistance: > 500 MOhm
l Contact resistance: < 20 MilliOhm
l Dielectric strength: 1000 VDC (Contact/Contact), 1500 VDC (Contact/Ground)
l Dimensions (HxWxD): 20,14,34 mm
l Weight: 22 g
Návod:Jiný
Výrobce (kabel):Digitus
