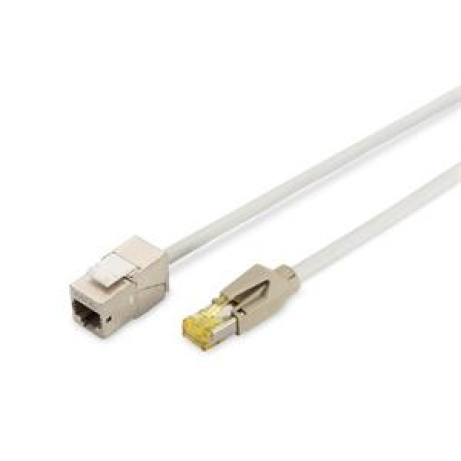

Consolidation-Point Cable, DRAKA UC900, HRS TM31 CAT 6A Keystone Module, 5 m, color grey

Best performance and link quality for your network.
The DIGITUS® Category CAT 6A S-FTP Consolidation-Point cables are manufacutred and tested to the EN-50173-1; EN-
80288-4-2 and ISO/IEC 11801; IEC 61156-6 specifications. DIGITUS® Consolidation-Point cables will guarantee the
installed cabling system is compliant with the ISO & EN channel specification requirements and will provide optimum
performance levels of DIGITUS® CAT 6A cabling. DIGITUS® offers a various range of lengths according to your
specific needs. The cables are optimized for installation in floor tank, raised floor & cable duct.
l Transmission properties: Category 6A, Class EA
l Area of application: Up to 500 MHz, 10GBase-T
l Norms: ISO/IEC 11801 2nd Ed., EN 50173-1, EIA/TIA 568-C, 802.3af, 802.3at PoE+
l General properties:
l Suitable for installation in double floor, trunking and false ceiling
l RJ45 female, 8P8C
l RJ45 Male, 8P8C
l Flexible installation due to reduced wire diameter
l 360° shield coverage
l Dust cover included
l Technical properties - Flexible patch cable, bulk:
l Product number: DK-1741-PH
l Cable type: DRAKA UC900 SS CAT7 S/FTP flex
l Shielding: S/FTP, pair in metal foil and braid shield
l Sheath: LSZH-1 (FRNC-B), halogeen-free
l Core cross-section: AWG 27/7
l Technical properties - Keystone module:
l Product number: DN-93617
l Housing material: Zinc die-cast, nickel-plated
l RJ45 female material: ABS UL 94V-0
l RJ45 female contact: Tinned phosphor bronze, 0.5 µ gold-plated contact
l RJ45 shielding: Tinned bronze
l LSA termination clamp: Krone LSA+, UL 94V-2, zinc plated phosphor bronze
l Conductor plate: FR4, UL 94V-0
l Technical Properties - RJ45 modular plug:
l Product number: A-MO6A 8/8 HRS
l Plug type: Hirose HRS TM31 RJ45 plug
l Material contacts: Phosphor bronze
l Contacts coating: Nickel, gold-plated 0,8µ
l Material connector body: Polycarbonat
l Material shielding housing: Brass 0.5 mm, 2 µ nickel-plated
l Flammability: UL 94V-2
l Physical properties:
l Insertion force: 30N max. (IEC 60603-7-5)
l Retention strength: 7.7 kg between jack and plug
l Operation temperature: -20° C to +70 °C (ISO/IEC 11801, EN 50173-1, ANSI/TIA/EIA 568 C)
l Mating cycles female: > 750 acc. to ISO/IEC 11801, IEC 60603-7-5
l Clamp: > 200 acc. to ISO/IEC 11801, IEC 60603-7-5
l IDC wire size: 22 – 26 AWG solid and stranded conductor
l Insulation resistance: > 500 MOhm
l Contact resistance: < 20 MilliOhm
l Dielectric strength: 1000 VDC (Contact/Contact), 1500 VDC (Contact/Ground)
