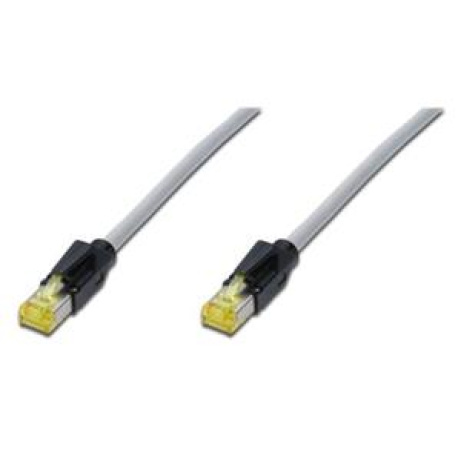

CAT 6A S-FTP patch cord DRAKA UC 900 SS FRNC,TM31 Cu, LSZH, AWG 27/7, 2.00 m, grey

Future-oriented standards and high-end quality for your network.

With LSZH (Low Smoke Zero Halogen) sheath for best fire behaviour and low smoke emissions.
Transparent yellow colored plug with metal shielding for easy identification of Category 6A (500 MHz)
Hirose TM31 RJ45 plug
PoE+ ready

The Category 6A Class E A patch cords are manufactured and tested to the EN-50173-1; EN-80288-4-2 and ISO/IEC 11801; IEC 61156-6 standard. They will guarantee the installed cabling system is compliant with the ISO & EN channel specification requirements and will provide optimum performance levels of Category 6A cabling. The performance of the raw cable is tested up to 1000 MHz inclusive performance characteristics such as near end cross talk (“NEXT”). The patch cords are designed and produced to fulfill the highest requirements of various application areas in full volume. Each cable is fitted with a molded boot which comes with kink protection and strain relief. Furthermore the boot is equipped with a latch protection that prevents the latching lever against breaking. You can easily identify the Category 6A, because of the transparent yellow colored connector.

Technical details
2x RJ45 (8P8C) connectors; Hirose TM31
Boots with kink protection, strain relief and latch protection
Raw cable DRAKA UC 900 SS CAT 7 S/FTP PIMF
Conductor: Copper (Cu)
Anti-kink sleeve: Put-on
AWG-size: 27
Cable construction: 4x2
Cable type: S/FTP
Category: 6A (IEC)
Colour anti-kink sleeve: Grey
Colour outer sheath: Grey
Fire retardant version: ja
Halogen free: ja
Length: 2
Locking lever: ja
NVP value: 79
Oil resistant (acc. EN 60811-404): nein
Pin assignment: 1:1
Type of connector connection 1: RJ45 8(8)
Type of connector connection 2: RJ45 8(8)
