DIGITUS Professional CAT 6 Industrial Coupler, shielded
Výrobce:Digitus
Kód produktu:i26_981233
Part number:DN-IND-C6-C
EAN:4016032429623
Záruka:23 měsíců
Dostupnost:
na dotaz
ZBOŽÍ NENÍ AKTUÁLNĚ SKLADEM. O SKLADOVÉ DOSTUPNOSTI SE INFORMUJTE NA EMAILU, NEBO SI NASTAVTE NÍŽE " SLEDOVAT CENU "
Popis

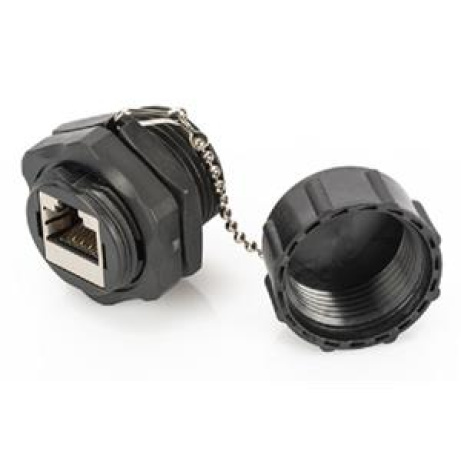

CAT 6 STP industrial bulkhead coupler, IP67 with dust cap
Best performance and link quality for your network. Ideal for industrial applications.
IP67 (dust tight; immersion, up to 1 m depth)
incl. detachable closing cap
Technical Details
Main body & dust cap: PBT+GF, UL94V-0
Shielded case: Brass, nickel plated
Coupler housing: ABS, UL94V-0
Module contacts: Phosphor bronze, 50 µ gold plated
Insertion life: 750 mating cycles with FCC compliant 8P plug
Contact force: 100 g with FCC compliant 8P plug
Plug retention force: 11 LBF min.
Operating temperature range: -10 °C up to +60 °C
Storage temperature range: -40 °C up to + 68 °C
Humidity: 10%~90% RH
Insulation resistance: 500 MOhm
Dielectric withstanding voltage: 1000 V AC
DC current rating: 1.5 Amps.
DC resistance: 0.1 Ohm
Contact resistance: 20m Ohm
Best performance and link quality for your network. Ideal for industrial applications.
IP67 (dust tight; immersion, up to 1 m depth)
incl. detachable closing cap
Technical Details
Main body & dust cap: PBT+GF, UL94V-0
Shielded case: Brass, nickel plated
Coupler housing: ABS, UL94V-0
Module contacts: Phosphor bronze, 50 µ gold plated
Insertion life: 750 mating cycles with FCC compliant 8P plug
Contact force: 100 g with FCC compliant 8P plug
Plug retention force: 11 LBF min.
Operating temperature range: -10 °C up to +60 °C
Storage temperature range: -40 °C up to + 68 °C
Humidity: 10%~90% RH
Insulation resistance: 500 MOhm
Dielectric withstanding voltage: 1000 V AC
DC current rating: 1.5 Amps.
DC resistance: 0.1 Ohm
Contact resistance: 20m Ohm
