Description

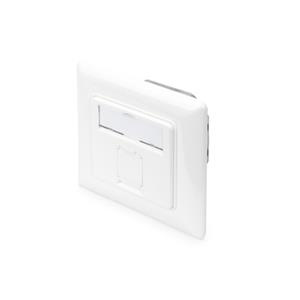

CAT 6A Class EA network outlet, shielded 1x RJ45, LSA, pure white, flush mount, horizontal

Future-oriented standards and high-end quality for your network.
Design compatible to common switch ranges
Easy installation via color coded IDC strips

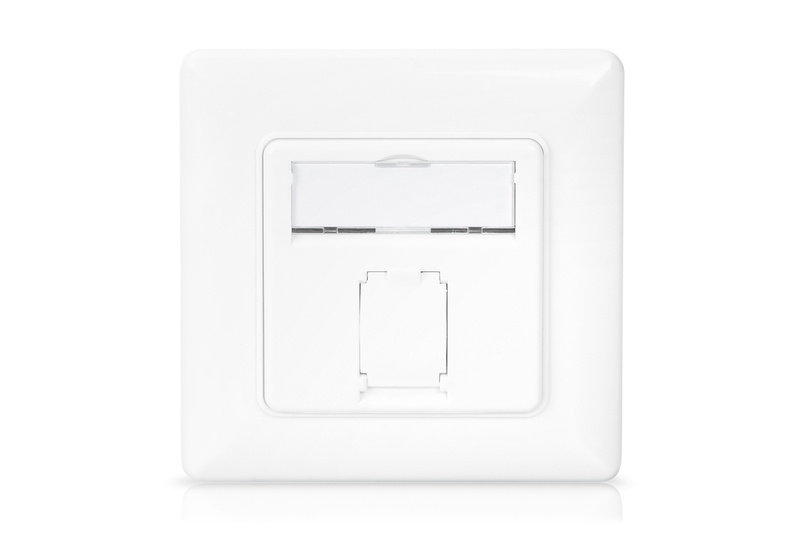

Central plate with integrated dust covers
Integrated strain relief for installation cable
The CAT 6A network outlets from DIGITUS® are design compatible with common switch programmes. It is certificated to CAT 6A ANSI/TIA 568 and ISO/IEC 11801, EN 50173 and contains 1 shielded RJ45 socket. The cable installation takes place via IDC strips, color coded acc. EIA/TIA 568 A & B. The flush mount junction box is ideal for connecting your installation cables cleanly and neatly. The box is rounded off by the integrated field of view, with which you can optimally mark the junction box with a label insert.

Technical Details
Transmission property: Category 6A
Area of application: Up to 500 MHz, 10GBase-T
Norms: ISO/IEC 11801 2nd Ed., EN 50173-1, EIA/TIA 568-C, 802.3af, 802.3at PoE+
General properties:
Suitable for installation in trunking, surface and flush mount
RJ45 female, 8P8C
Cable installation via IDC strips, color coded according to EIA/TIA 568 A & B
Integrated strain relief for installation cables

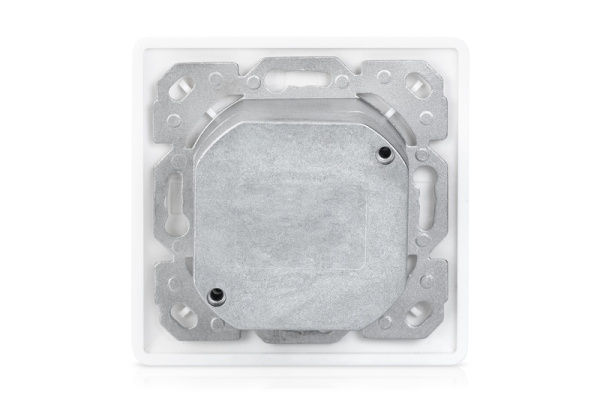

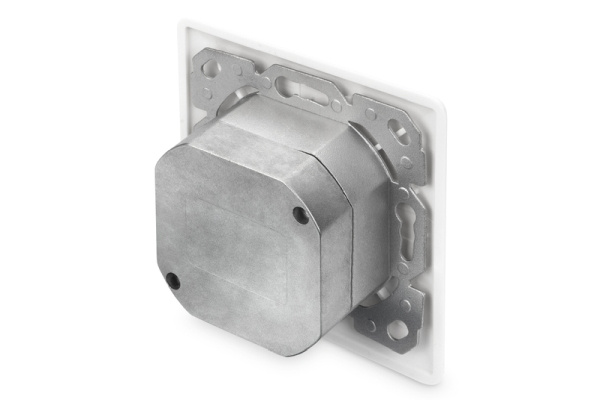

Complete shielding of RJ45 sockets and IDC strips due to zinc die-cast housing

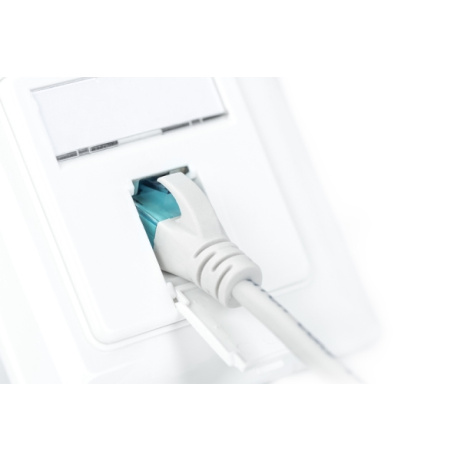

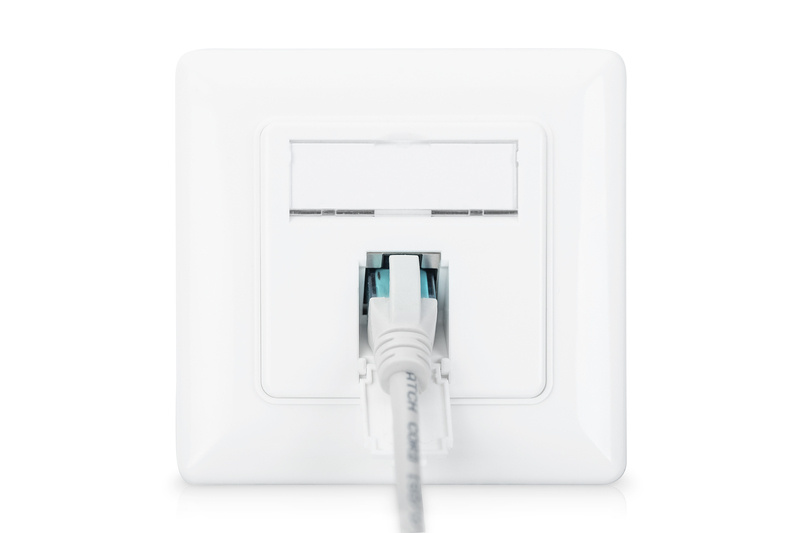

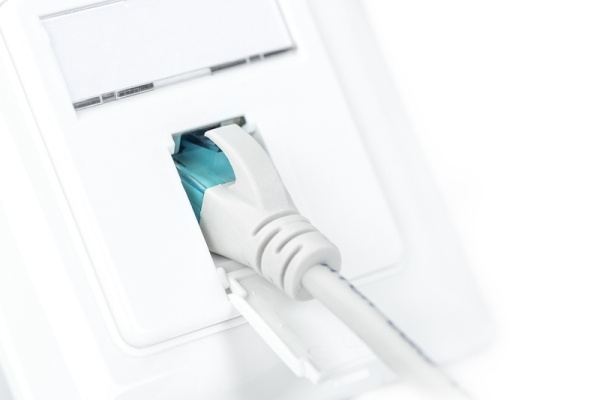

Strain relief 40°-angled female for patch cord
Central plate: 50 x 50 mm
Frame: 80 x 80 mm
Central plate with integrated dust covers
Design compatible to common switch ranges
Technical properties:
Housing material: Die-cast metal
RJ45 female material: ABS UL 94V-0
RJ45 female contact: Tinned phosphor bronze, 0.5 µ gold-plated contact
RJ45 shielding: Tinned bronze
IDC termination clamp: Krone LSA+, UL 94V-2, zinc plated phosphor bronze
Conductor plate: FR4, UL 94V-0
Physical properties:
Insertion force: 30N max. (IEC 60603-7-5)
Retention strength: 7.7 kg between jack and plug
Operation temperature: -20° C to +70 °C (ISO/IEC 11801, EN 50173-1, ANSI/TIA/EIA 568 C)
Mating cycles female: > 750 acc. to ISO/IEC 11801, IEC 60603-7-5
Clamp: > 200 acc. to ISO/IEC 11801, IEC 60603-7-5
IDC wire size: 22 – 26 AWG solid and stranded conductor
Insulation resistance: > 500 MOhm
Contact resistance: < 20 MilliOhm
Dielectric strength: 1000 VDC (Contact/Contact), 1500 VDC (Contact/Ground)
Not compatible with R&M freenet patch cords

Package content
Network Outlet, flush mount
Screws
Instruction manual
