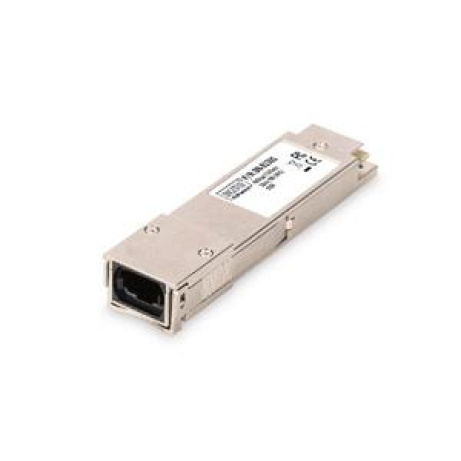

QSFP 40 Gbps Module, Singlemode, 1310nm, 10Km MPO Connector, OM3

The plug and play fiber connection
The DIGITUS® mini GBIC (SFP) transceiver modules offer highest quality and reliability. Wether from switch to switch,
converter to switch, converter to converter or any else application: The wide product range of DIGITUS® modules makes
possible a flexible usage of the fiber technology. The conformity to the MSA (Multi Source Agreement) standard ensures
a compatibility to third party manufacturers.
Package Content
l QSFP+ module
l  QSFP+ module
l  Connector: 1x MPO
l  Wavelength: 1310nm, Singlemode
l  40 Gbps Maximum Data Rate
l  Transmission power: minimum -7 dBm, maximum 2.3 dBm
l  Sensitivity Receiving Power: Minimum -11.5 dBm
l  For a Distance of up to 10km: Singlemode OS1 or OS2
l  Safe fast-locking mechanism
l  Supports DDM (Digital Diagnostic Monitoring)
l  High quality and excellent reliability
l  Compliant to IEEE 802.3ba 40 Gigabit Standard
l  Class 1 laser product compliant with EN 60825-1
l  Easy plug-and-play installation
l  MSA (Multi Source Agreement) compliant
l  Hot pluggable
l  3.3V power supply
l  Suitable for OS2 singlemode fiber cables
