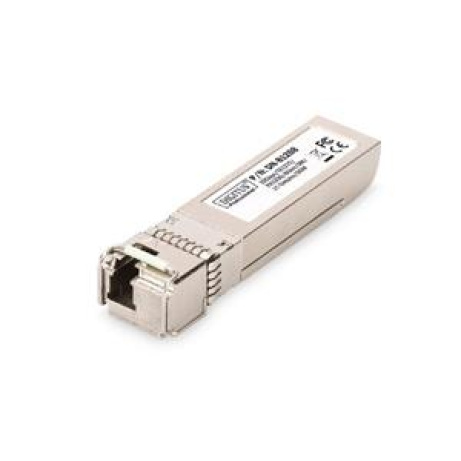

SFP+ 10 Gbps Bi-directional Module, Singlemode, 60km, Tx1270/Rx1330, LC Simplex Connector, with DDM feature

The plug and play fiber connection
The DIGITUS® mini GBIC (SFP) transceiver modules offer highest quality and reliability. Wether from switch to switch,
converter to switch, converter to converter or any else application: The wide product range of DIGITUS® modules makes
possible a flexible usage of the fiber technology. The conformity to the MSA (Multi Source Agreement) standard ensures
a compatibility to third party manufacturers.
Package Content
l 10G SFP+ Module
l  SFP+ (Small Form Factor Pluggable) module
l  Connector: 1x LC Simplex
l  Bidirectional WDM Module - Only one fiber is needed
l  Wavelength: TX 1270 / RX 1330, Singlemode
l  10Gbps Maximum Data Rate
l  Transmission power: minimum 1 dBm, maximum 5 dBm
l  Sensitivity Receiving Power: Minimum -22 dBm
l  For a Distance of up to 60km
l  Safe fast-locking mechanism
l  Supports DDM (Digital Diagnostic Monitoring)
l  High quality and excellent reliability
l  Compliant to IEEE 802.3ae 10 Gigabit Standard
l  Class 1 laser product compliant with EN 60825-1
l  Easy plug-and-play installation
l  MSA (Multi Source Agreement) compliant
l  Hot pluggable
l  3.3V power supply
l  Suitable for 09/125µm Singlemode Fiber Cables
