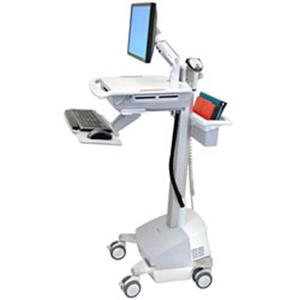

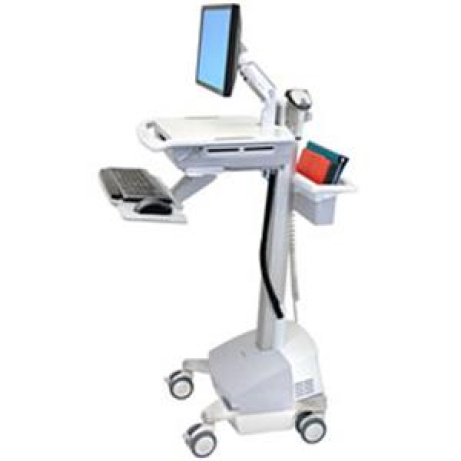

ERGOTRON StyleView® EMR Cart with LCD Arm, SLA Powered, pojízdný stojan, NTB/LCD, Klávesnice, myš, s napájením

Effortlessly maneuver the cart to the point of need—StyleView quickly responds to caregivers’ touch and enables nurses to focus on their patients
Truly ergonomic design accommodates the largest range of nurses and other caregivers; designed for sitting or standing with single-motion fluid adjustment—helps promote caregiver wellness and productivity
StyleView’s small footprint, with ultra-smooth gliding casters, travels easily across crowded carpet or hard surface floors and is perfect for space constrained areas
Open-architecture design accommodates multiple configurations: closed notebooks with monitor, CPU and monitor, thin clients, tablets, all-in-one computers and future hardware upgrades
Surfaces are treated with antimicrobial for product protection
LCD and keyboard pan side-to-side for closer access while interacting with clients; arm also reaches low for people wearing bifocals or using a tablet PC
Dependable fifth-generation power system with easy to replace batteries. For patient and caregiver safety the full cart and power system are certified to UL/EN/IEC 60601-1 and CAN/CSA C22.2 No.601.1 M90, as well as NFPA leakage current limits
Passes Ergotron’s 10,000-cycle motion test, which ensures a minimum of five years trouble-free sit-to-stand height adjustment


Part Number: North America = SV42-6201-1; Europe = SV42-6201-2; United Kingdom/Ireland = SV42-6201-3; Hong Kong/Malaysia/Singapore = SV42-6201-3; Australia/New Zealand = SV42-6201-4; China = SV42-6201-5; Japan = SV42-6201-6
Description: StyleView EMR LCD Cart, SLA Powered, Arm (white, grey and polished aluminum)
Includes LCD arm, worksurface, secure CPU compartment, four-port USB hub, scanner holder bracket, mouse holder, wrist rest, back-tilt keyboard tray, left/right mouse tray, rear handle, storage basket, cable storage, four casters (two locking), two-battery 66 Ah power system, 10-foot (3 m) coiled cord, three AC outlets, power system user interface, StyleLink software
* Total maximum load on height-adjustment assembly = 35 lbs (15.9 kg). This is the sum of the following components: LCD arm = 5–14 lbs (2.3–6.4 kg); worksurface and keyboard tray ? 8 lbs (3.6 kg); CPU compartment ? 13 lbs (5.9 kg)
Note: If the combined LCD and CPU weight is greater than 27 lbs (12.3 kg) then the CPU must be mounted to the rear of the cart using the Universal CPU Holder accessory (ordered separately)
† LCD and worksurface adjust 20" (51 cm) in tandem; LCD Arm adjusts 7" (17.8 cm) independently; maximum LCD height adjustment = 27" (68.6 cm)
‡ Monitor up/down tilt = +60°/-5°
** Portrait screen orientation may be incompatible with widescreen displays > 19"
True Ergonomics
Ergonomic back-tilt keyboard tray with left or right mouse tray ensures wrists remain in a neutral position during data entry—avoid repetitive-stress injuries while increasing comfort and productivity
Designed for users 5'0" to 6'1" (152 to 185 cm) tall and for prolonged sitting or standing applications. The exceptional height adjustment range means shorter and taller users can work comfortably and productively in a seated as well as standing position
LCD height adjustment range of at least 25" (63.5 cm) is standard on all LCD carts
Patented CF lift-and-pivot motion technology minimizes forces required to adjust cart position: Casters, height adjustment, LCD tilt and pan all require just a touch
Actual cart weight is 129 lbs (58.5 kg), making system relocation easy
Arm adjusts screen down low to the worksurface for people wearing bifocals or using a tablet PC
Safe
Dependable fifth-generation power system with easy to replace batteries. For patient and caregiver safety the full cart and power system are certified to UL/EN/IEC 60601-1 and CAN/CSA C22.2 No.601.1 M90, as well as NFPA leakage current limits
Power System User Interface integrated conveniently on the worksurface (includes visual and audible battery status indicator)
Power system complies with EMI limits of FCC Part 15 Class A
Surfaces are treated with antimicrobial for product protection; handles are smooth and continuous for improved cleanability
Environmentally clean: RoHS, REACH, WEEE and EU (94/62/EC) packaging compliant
Durable, easy-to-clean exterior composed of aluminum, high-grade plastic and zinc-plated steel promotes infection control
Large smooth worksurface; easy-to-clean design promotes infection control
Lockable, ventilated enclosed storage for closed notebook, thin client or CPU. Keys and locks are heavy-duty
Front-locking casters
CPU lock provided inside the storage compartment for additional security
Designed to meet guidelines established by the American National Standards Institute for computer use
Service
Includes FREE StyleLink with enterprise capabilities—Install, access and manage your StyleView power systems from a remote location across WAN, LAN, or VPN. StyleLink’s three-part software package maximizes your IT tech-support time by giving you real-time centralized control over carts across campus, the city, country or the world
Covered by Global Service Program—24/7 coverage
All the Details Covered
Four amber LEDs provide light over keyboard tray; includes 15-minute auto shut-off
Button for LED lights is located conveniently on worksurface
Easy access to components for field replacement and serviceability: keyboard LEDs, PC boards (including the user interface). Easier, faster upkeep and service means less down time
Pre-routed cables provide quicker integration with equipment
TAA (Trade Agreements Act) compliant
Universal mounting slot for accessories and equipment
A unique cable management system conceals and organizes cords, making cleaning easy
Ships fully assembled and is easily accessible from container
Three-receptacle power strip located in the CPU storage compartment (North American carts) or in the base (EMEA & APAC carts)
Quick, easy access to CPU storage compartment: One-hand operation of secure latch with slide-out worksurface ensures easy access. Security cable in compartment deters CPU theft
Four-port USB hub
Four (4) ultra-smooth gliding casters for extremely easy push/pull mobility; two locking casters ensure lock-in-place stability
Compatibility and Dimensions
Open-architecture design accommodates multiple configurations, closed notebooks with monitor (even widescreen with up to 17.3" diagonal size), CPU and monitor, thin clients, tablets, all-in-one computers and future hardware upgrades
Storage compartment for closed notebook, thin client or CPU: 17.75"W x 14.75"D x 3.75"H (45 x 37.5 x 9.5 cm); larger computers can mount to rear of cart with Universal CPU Holder accessory (ordered separately)
Compact Wheel-to-Wheel Base Dimensions: 15.5" x 17" (394 x 432 mm)
Worksurface Dimensions: 22.4"W x 19.75"D (567 x 502 mm)
Mounting Standards: VESA FDMI MIS-D, 100/75, C (hole pattern: 100 x 1
