Model

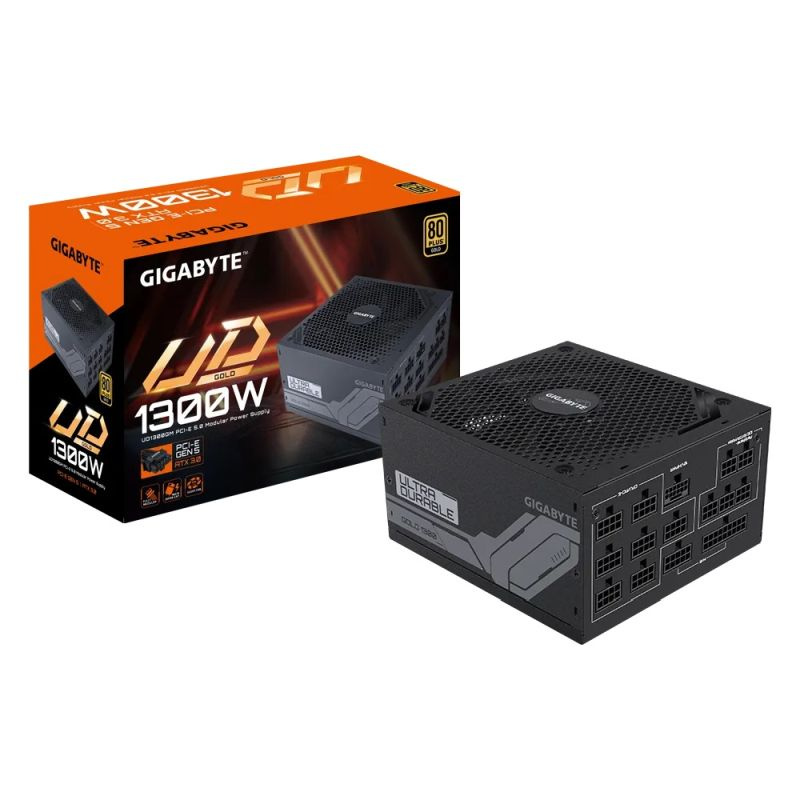

GP-UD1300GM PG5
Type
Intel Form Factor ATX 12V v3.0
PFC
Active PFC (>0.9 typical)
Input Voltage
100-240 Vac (full range)
Input Current
15-6.5A
Input Frequency
60-50 Hz
Output Capacity
1300W
Dimension
150 x 160 x 86 mm
Fan Type
140mm Hydraulic Bearing(HYB)fan
80 PLUS
Gold
Efficiency
90% at typical load
MTBF
>100,000 hours
Protection
OVP/OPP/SCP/UVP/OCP/OTP
Power Good Signal
100-150ms
Hold Up Time
>16ms
Cable Type
Flat, All black
Connectors
ATX/MB 20+4 Pin x 1 : 610mm*1
CPU/EPS 4+4 Pin x 2 : 650mm*2
PCIe 16 Pin x 1: 700mm*1
PCIe 6+2 Pin x 8 : 650mm+150mm*3, 650mm*2
SATA x 12 : 650mm+150mm+150mm+150mm*3
4 Pin Peripheral x 6+4-Pin floppy x 2 : 600mm+150mm+150mm+150mm*2
