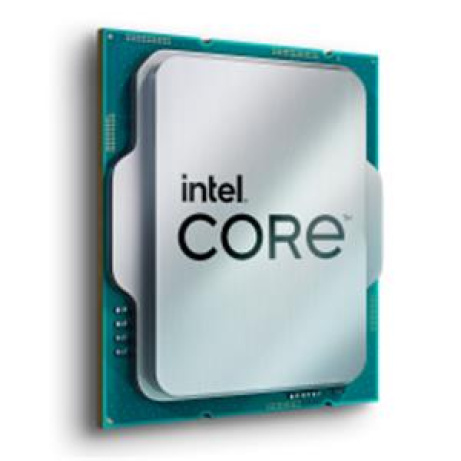

Product Collection 8th Generation Intel Core i5 Processors
Code Name Products formerly Coffee Lake
Vertical Segment Desktop
Processor Number i5-8500
Lithography 14 nm


Total Cores 6
Total Threads 6
Max Turbo Frequency 4.10 GHz
Intel® Turbo Boost Technology 2.0 Frequency‡ 4.10 GHz
Processor Base Frequency 3.00 GHz
Cache 9 MB Intel® Smart Cache
Bus Speed 8 GT/s
TDP 65 W
Supplemental Information
Marketing StatusLaunched
Launch Date Q2'18
Embedded Options Available Yes
DatasheetView now
Memory Specifications
Max Memory Size (dependent on memory type) 128 GB
Memory Types DDR4-2666
Max # of Memory Channels 2
Max Memory Bandwidth 41.6 GB/s
ECC Memory Supported ‡ No
GPU Specifications
Processor Graphics ‡ Intel® UHD Graphics 630
Graphics Base Frequency 350 MHz
Graphics Max Dynamic Frequency 1.10 GHz
Graphics Video Max Memory 64 GB
4K Support Yes, at 60Hz
Max Resolution (HDMI)‡ 4096x2304@24Hz
Max Resolution (DP)‡ 4096x2304@60Hz
Max Resolution (eDP - Integrated Flat Panel)‡ 4096x2304@60Hz
DirectX* Support 12
OpenGL* Support 4.5
Intel® Quick Sync Video Yes
Intel® InTru™ 3D Technology Yes
Intel® Clear Video HD Technology Yes
Intel® Clear Video Technology Yes
# of Displays Supported ‡3
Device ID0x3E92
