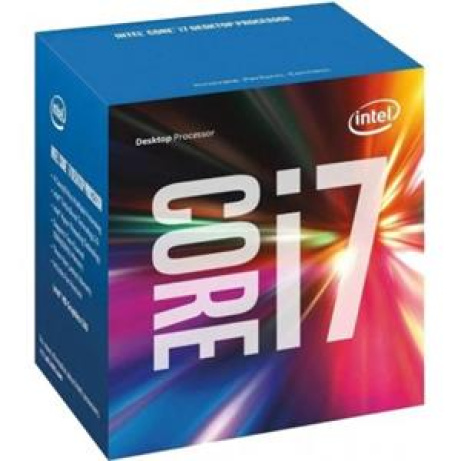

INTEL Core i7-7700T 2.9GHz/4core/8MB/LGA 1151/Graphics/Kaby Lake/



Processor Number i7-7700T
# of Cores 4
# of Threads 8
Clock Speed 2.90 GHz
Max Turbo Frequency 3.80 GHz
Intel® Smart Cache 8 MB
Instruction Set 64-bit
Instruction Set Extensions Intel SSE4.1 Intel SSE4.2, Intel AVX2
Max TDP 35 W
Package Size 37.5mm x 37.5mm
Sockets Supported LGA1151


Main features
Component for:

PC
Processor family:

Intel® Core™ i7
Processor model:

i7-7700T
Processor codename:

Kaby Lake
Processor socket:

LGA 1151 (Socket H4)
Processor boost frequency:

3.8 GHz
Processor cores:

4

All features
Processor
Component for:

PC
Thermal Design Power (TDP):

35 W
Processor family:

Intel® Core™ i7
Processor model:

i7-7700T
Processor codename:

Kaby Lake
Processor socket:

LGA 1151 (Socket H4)
Processor code:

SR339
Processor boost frequency:

3.8 GHz
Processor cores:

4
Processor threads:

8
Processor cache:

8 MB
Processor cache type:

Smart Cache
Stepping:

B0
Bus type:

DMI3
System bus rate:

8 GT/s
Processor operating modes:

64-bit
Processor series:

Intel Core i7-7700 Desktop Series
Box:

No
Compatible chipsets:

Intel B150, Intel H110, Intel H170, Intel Q150, Intel Q170, Intel Z170
Processor lithography:

14 nm
Cooler included:

No
Processor ARK ID:

97122
Processor manufacturer:

Intel
Configurable TDP-down:

25 W
Configurable TDP-down frequency:

1.9 GHz
Generation:

7th Generation
Processor base frequency:

2.9 GHz
Processor special features
Intel® Identity Protection Technology (Intel® IPT):

No
Intel® Hyper Threading Technology (Intel® HT Technology):

No
Intel® Turbo Boost Technology:

2.0
Intel® Quick Sync Video Technology:

No
Intel® InTru™ 3D Technology:

No
Intel® Clear Video HD Technology (Intel® CVT HD):

No
Intel® AES New Instructions (Intel® AES-NI):

No
Enhanced Intel SpeedStep Technology:

No
Intel Trusted Execution Technology:

No
Intel Enhanced Halt State:

No
Intel® Clear Video Technology for Mobile Internet Devices (Intel CVT for MID):

No
Intel VT-x with Extended Page Tables (EPT):

No
Intel TSX-NI:

No
Intel® Secure Key:

No
Intel 64:

No
Intel Stable Image Platform Program (SIPP):

No
Intel® OS Guard:

No
Intel Virtualization Technology for Directed I/O (VT-d):

No
Intel Clear Video Technology:

No
Intel Software Guard Extensions (Intel SGX):

No
Intel Identity Protection Technology version:

1.00
Intel Secure Key Technology version:

1.00
Intel Virtualization Technology (VT-x):

No
Intel Stable Image Platform Program (SIPP) version:

1
Intel TSX-NI version:

1.00
Conflict-Free processor:

No
Intel® Optane™ Memory Ready:

No
Intel® Memory Protection Extensions (Intel® MPX):

No
Intel® Boot Guard:

No
Intel® vPro™ Platform Eligibility:

No
Intel® Transactional Synchronization Extensions:

No
Intel® Turbo Boost Technology 2.0 frequency:

3.8 GHz
Graphics
On-board graphics card ID:

5912
On-board graphics card:

No
On-board graphics card base frequency:

350 MHz
On-board graphics card dynamic frequency (max):

1150 MHz
On-board graphics card maximum resolution (DisplayPort):

4096 x 2304
On-board graphics card 4K support:

No
On-board graphics card maximum resolution (eDP - Integrated Flat Panel):

4096 x 2304
On-board graphics card refresh rate at maximum resolution (eDP - Integrated Flat Panel):

60 Hz
On-board graphics card refresh rate at maximum resolution (DisplayPort):

60 Hz
On-board graphics card refresh rate at maximum resolution (HDMI):

24 Hz
Maximum on-board graphics card memory:

64 GB
Number of displays supported (on-board graphics):

3
On-board graphics card maximum resolution (HDMI):

4096 x 2304
On-board graphics card DirectX version:

12.0
On-board graphics card OpenGL version:

4.5
Features
Supported instruction sets:

SSE4.1, SSE4.2, AVX 2.0
PCI Express slots version:

3.0
Execute Disable Bit:

No
Idle States:

No
Thermal Monitoring Technologies:

No
Scalability:

1S
CPU configuration (max):

1
Embedded options available:

No
PCI Express configurations:

1x16, 2x8, 1x8+2x4
Thermal solution specification:

PCG 2015A
Maximum number of PCI Express lanes:

16
Market segment:

Desktop
PCI Express CEM revision:

3.0
Export Control Classification Number (ECCN):

5A992C
Commodity Classification Automated Tracking System (CCATS):

G077159
Technical details
Supported memory types:

DDR4-SDRAM, DDR3L-SDRAM
Product type:

Processor
Processor cache:

8192 KB
Status:

Launched
Maximum resolution & refresh rate (DisplayPort):

4096x2304@60Hz
Maximum resolution & refresh rate (HDMI):

4096x2304@24Hz
Maximum resolution & refresh rate (Integrated Flat Panel):

4096x2304@60Hz
Launch date:

Q1'17
Maximum graphics card memory:

64 GB
Bus type units:

GT/s
Bus bandwidth:

8
Maximum memory:

64 GB
Processor brand name:

7th Gen Intel Core i7 processors
Last change:

63903513
Product family:

7th Generation Intel Core i7 Processors
Processor ID:

0x5912
Bus speed:

8 GT/s
Memory
ECC:

No
Memory channels:

Dual-channel
Maximum internal memory supported by processor:

64 GB
Memory types supported by processor:

DDR4-SDRAM, DDR3L-SDRAM
Memory clock speeds supported by processor:

1333, 1600, 2133, 2400
Memory voltage supported by processor:

1.35 V
Weight & dimensions
Processor package size:

37.5 x 37.5
Operational conditions
Tjunction:

80 °C
Other features
Maximum internal memory:

65536 MB
Maximum internal memory:

64 GB
Video decoding:

No
Packaging data
Package depth:

116 mm
Package height:

101 mm
Package width:

70 mm
Package type:

Retail box
