7D7AA01CEA 1x Gold 5415+ 8C 150W 2.9G 1x 32GB 1Rx4 9350-8i 8x 2.5" SAS Open bay 2x Media; Open bay Plat Yes 3x Std 1x1100W Titanium Yes


Machine types 7D7B - 1 year warranty
7D7A - 3 year warranty

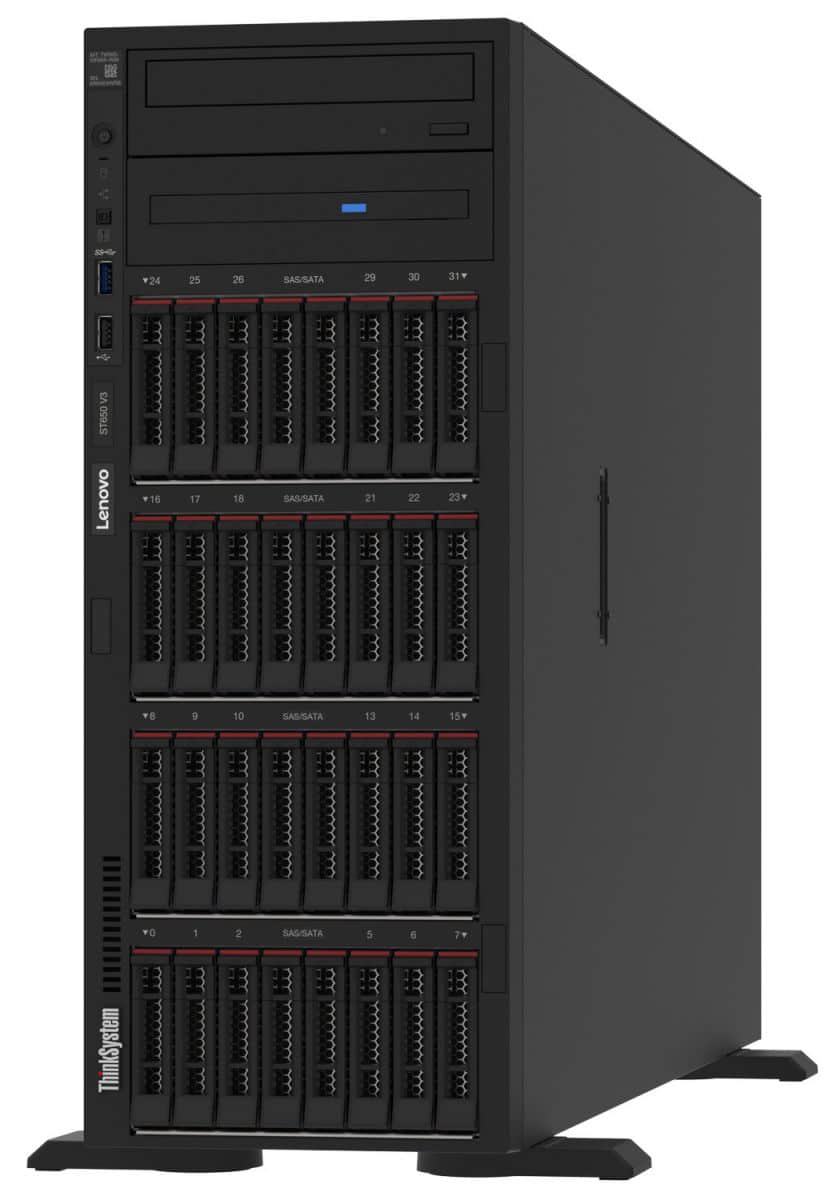

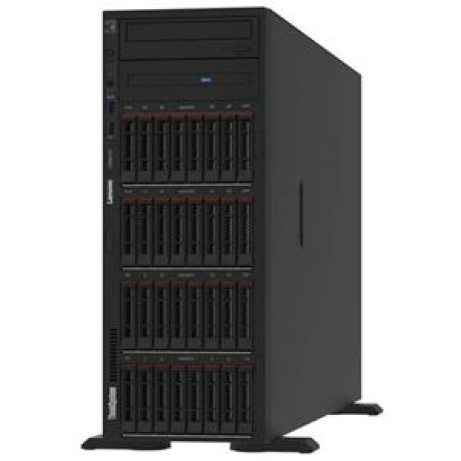

Form factor Tower or 4U Rack
Processor One or two 4th Gen Intel Xeon Scalable processor (formerly codenamed "Sapphire Rapids"). Supports processors up to 32 cores, core speeds of up to 3.7 GHz, and TDP ratings of up to 250 W.
Chipset Intel C741 "Emmitsburg" chipset, part of the platform codenamed "Eagle Stream"
Memory 32 DIMM slots with two processors (16 DIMM slots per processor). Each processor has 8 memory channels, with 2 DIMMs per channel (DPC). Lenovo TruDDR5 RDIMMs, 9x4 RDIMMs, and 3DS RDIMMs are supported. DIMMs operate at up to 4800 MHz at 1 DPC and up to 4400 MHz at 2 DPC.
Persistent memory No support
Memory maximum Up to 4TB by using 32x 128GB 3DS RDIMMs
Memory protection ECC, SDDC (for x4-based memory DIMMs), ADDDC (for x4-based memory DIMMs excluding 9x4 RDIMMs, requires Platinum or Gold processors), and memory mirroring.
Disk drive bays
2.5-inch drive bays:

Up to 32x 2.5-inch hot-swap bays (24x NVMe) plus 2x 5.25-inch media bays
3.5-inch drive bays:

Up to 16x 3.5-inch hot-swap bays (16x NVMe) (no media bays)
Up to 12x 3.5-inch hot-swap bays (12x NVMe) plus 2x 5.25-inch media bays
Internal drives for OS boot or drive storage:

Internal M.2 module supporting up to two M.2 drives
Maximum internal storage
2.5-inch drives:
245.76TB using 32x 7.68TB 2.5-inch SAS/SATA SSDs
92.16TB using 24x 3.84TB 2.5-inch NVMe SSDs
76.8TB using 32x 2.4TB 2.5-inch HDDs
3.5-inch drives:
352TB using 16x 22TB 3.5-inch HDDs
122.88TB using 16x 7.68TB 3.5-inch SAS/SATA SSDs
61.44TB using 16x 3.84TB 3.5-inch NVMe SSDs
Storage controller
8x onboard SATA ports (Intel VROC SATA RAID, formerly known as Intel RSTe RAID)
Up to 12x onboard NVMe ports (includes Intel VROC NVMe RAID, with optional license for non-Intel NVMe SSDs)
NVMe Retimer Adapter (supports Intel VROC NVMe RAID)
12 Gb SAS/SATA RAID adapters
8, 16 or 32 ports
Up to 8GB flash-backed cache
PCIe 4.0 or PCIe 3.0 host interface
12 Gb SAS/SATA HBA (non-RAID)
8-port and 16-port
PCIe 4.0 or PCIe 3.0 host interface
Optical drive and tape drive bays Two half-height 5.25-inch media bays, available in most configurations. Supports two of LTO tape drive, RDX drive, or slim DVD-RW optical drive.
Network interfaces Two onboard 10GBASE-T Ethernet RJ45 ports based on a Broadcom BCM57416 controller. Additional dedicated Gigabit port for remote management via the XClarity Controller (XCC) management processor.
PCI Expansion slots
9x PCIe slots: 5x PCIe 5.0 and 4x PCIe 4.0 slots. All nine slots are mounted on the system board. Slots 1-8 are full height, full length (FHFL); slot 9 is full height, half length (FHHL). Slots 4-8 require CPU 2 installed.

Slot 1: PCIe 5.0 x16 (CPU 1)
Slot 2: PCIe 5.0 x8 (x8 physical slot) (CPU 1)
Slot 3: PCIe 5.0 x16 (CPU 1)
Slot 4: PCIe 5.0 x8 (x8 physical slot) (CPU 1)
Slot 5: PCIe 5.0 x16 (CPU 2)
Slot 6: PCIe 4.0 x8 (x8 physical slot) (CPU 2)
Slot 7: PCIe 4.0 x16 (CPU 2)
Slot 8: PCIe 4.0 x8 (x8 physical slot) (CPU 2)
Slot 9: PCIe 4.0 x8 (x8 physical slot) (CPU 1)
The server also supports the installation of a RAID adapter or HBA in a dedicated area that does not consume any of the PCIe slots. See the location of the Internal RAID adapter (cabled) in the Internal view of the server.

GPU support Supports up to 8x single-wide GPUs or up to 4x double-wide GPUs
Ports
Front: 1x USB 3.2 G1 (5 Gb/s) port, 1x USB 2.0 port (also for XCC local management)

Rear: 2x 10GBASE-T RJ45 Ethernet ports, 4x USB 3.2 G1 (5 Gb/s) ports, 1x VGA video port, 1x DB-9 COM serial port, 1x 1GbE RJ-45 systems management port for XCC remote management, External diagnostics port

Internal: 2x USB 3.2 G1 connector for operating system or license key purposes

Cooling Up to 4x single-rotor or dual-rotor hot swap 92 mm fans, configuration dependent. Fans are N+1 redundant. One additional fan integrated in each power supply.
Power supply Up to two hot-swap redundant AC power supplies, 80 PLUS Platinum or 80 PLUS Titanium certification. 750 W, 1100 W, 1800 W and 2600 W AC options, supporting 220 V AC. 750 W and 1100 W options also support 110V input supply. In China only, all power supply options support 240 V DC.
Video Embedded graphics with 16 MB memory with 2D hardware accelerator, integrated into the XClarity Controller 2 management controller. Maximum resolution is 1920x1200 32bpp at 60Hz.
Hot-swap parts Drives, power supplies, and fans.
Systems management Operator panel with status LEDs. Optional External Diagnostics Handset with LCD display. XClarity Controller 2 (XCC2) embedded management controller , XClarity Administrator centralized infrastructure delivery, XClarity Integrator plugins, and XClarity Energy Manager centralized server power management. Optional XClarity Controller Platinum to enable remote control and other functions.
Security features Power-on password, administrator's password, Root of Trust module supporting TPM 2.0 and Platform Firmware Resiliency (PFR). Optional lockable front security door and optional chassis intrusion switch.
Operating systems supported Microsoft Windows Server, Red Hat Enterprise Linux, SUSE Linux Enterprise Server, VMware ESXi. See the Operating system support section for specifics.
Limited warranty Three-year or one-year (model dependent) customer-replaceable unit and onsite limited warranty with 9x5 next business day (NBD).
Service and support Optional service upgrades are available through Lenovo Services: 4-hour or 2-hour response time, 6-hour fix time, 1-year or 2-year warranty extension, software support for Lenovo hardware and some third-party applications.
Dimensions Width: 175 mm (6.9 in.), height: 462 mm (18.2 in.), depth: 734 mm (28.9 in.). See Physical and electrical specifications for details.
Weight 39.1 kg (86.2 lb) maximum




LenovoPress: https://lenovopress.lenovo.com/lp1604-thinksystem-st650-v3-server
