Maximum coverage – four 5dBi antennas provide up to 500m2 of wireless coverage
Enhanced signal – high gain antennas dramatically increase wireless signal strength, size and stability
300Mbps wireless speed - ideal for HD streaming, online gaming, and large file downloads
Easy installation - intuitive webpage guides you through the setup process in minutes
*Range speci?cations are based on performance test results. Real performance varies in accordance with applications and environmental conditions.

Specification:

Dimensions (W X D X H) 167 x 118 x 33 mm

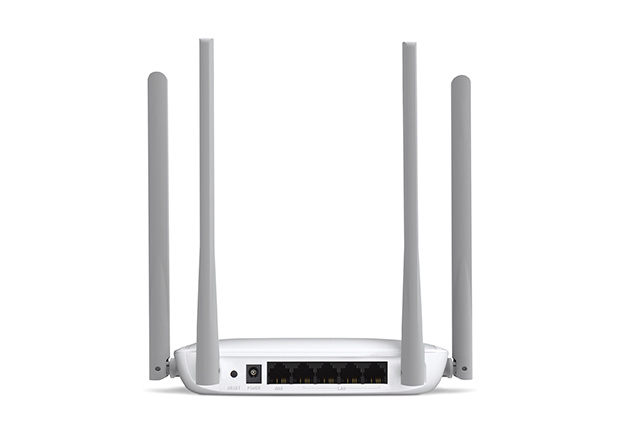

Interfaces
4 10/100Mbps LAN ports
1 10/100Mbps WAN port

Button Reset button

External Power Supply 9VDC/0.6A

Antenna Type 4 x 5dBi fixed omni directional antennas

Wireless Standards IEEE 802.11n, IEEE 802.11g, IEEE 802.11b

Frequency 2.4 - 2.4835GHz

Signal Rate
11n: Up to 300Mbps (Dynamic)

11g: Up to 54Mbps (Dynamic)
11b: Up to 11Mbps (Dynamic)

Reception Sensitivity
270M: -70dBm@10% PER

130M: -74dBm@10% PER

108M: -74dBm@10% PER

54M: -77dBm@10% PER

11M: -87dBm@8% PER

6M: -90dBm@10% PER
1M: -98dBm@8% PER

Certifications CE, ROHS

Package Contents

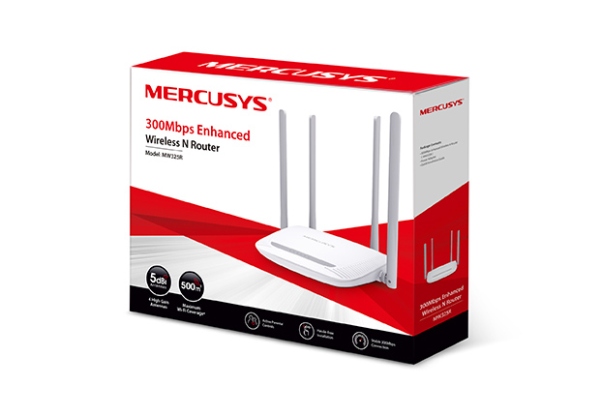

300Mbps Enhanced Wireless N Router

MW325R

Power adapter

Quick installation guide

Ethernet cable

Environment
Operating temperature: 0°C ~ 40°C (32°F ~ 104°F)

Storage temperature: -40°C ~ 70°C (-40°F ~ 158°F)

Operating humidity: 10% ~ 90%, non-condensing
Storage humidity: 5% ~ 90%, non-condensing
Transmission Power <20dBm
Wireless Security WPA-PSK / WPA2-PSK
Wireless Functions WDS bridge
WAN Type Dynamic IP/Static IP/PPPoE
Management
Access control

Local management
Remote management
DHCP Server
Port Forwarding Virtual server, UPnP, DMZ
Dynamic DNS Oray
Firewall Security IP and MAC address binding
Protocols IPv4
Guest Network 2.4GHz guest network

Up to 500 m2 of Wi-Fi Coverage

The MW325R creates an expansive wireless network that is capable of covering your home with up to 500m2 of wireless coverage. You can enjoy reliable, high performance connections in the living room, the bedroom, or even the backyard.

* Range specifications are based on performance test results. Real performance varies in accordance with application and environmental conditions.

Four 5dBi Antennas

By combining 2x2 MIMO Technology and four high gain antennas, the MW325R is able to significantly increase its signal transmission and reception capabilities. This means that you do not have to worry about lag or dropped connections while enjoying online gaming and streaming video.

Three-Step Installation

With no need for complicated configuration, you can simply follow the step-by-step
instructions on the intuitive webpage to set up your MW325R in minutes.

Network Security

Comprehensive security features help your devices form safe connections to the MW325R.

Parental ControlManage when and how connected devices can access the Internet.

Guest NetworkKeep your main network secure by creating a separate network for guests.

Advanced EncryptionEnsure your wireless connection is safe from intruders with the wireless encryption standards.
