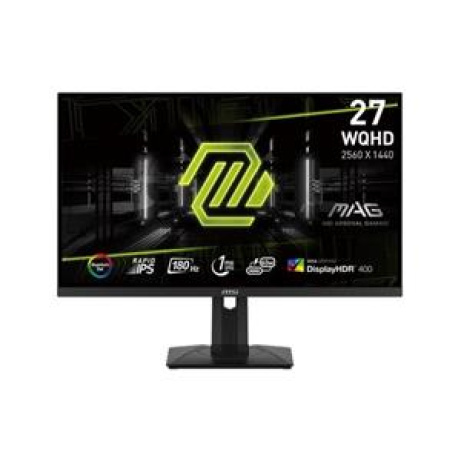

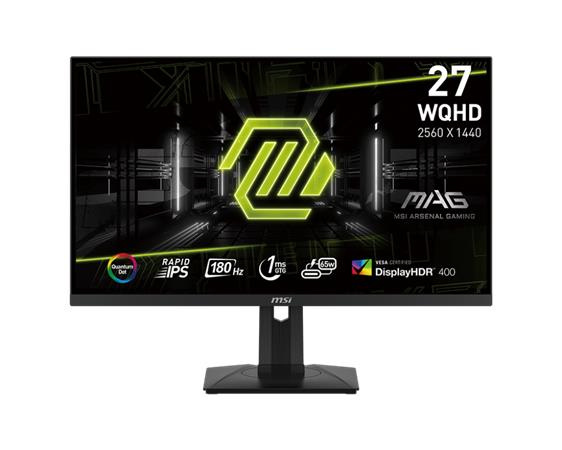

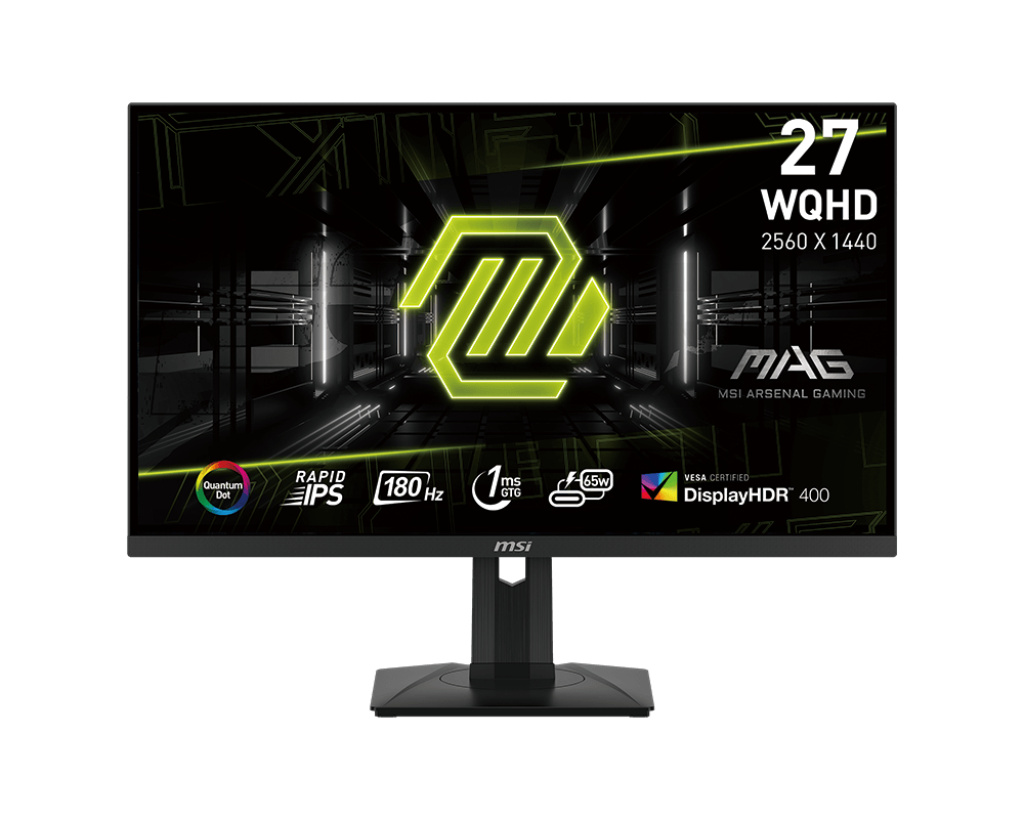

MSI Gaming monitor MAG 274QRF QD E2, 27" Rapid IPS/2560x1440 (WQHD)/180Hz/1ms/DP/2xHDMI/USB-C/USB/Výškově nast./pivot

MKT Spec MAG 274QRF QD E2
Website Name MAG 274QRF QD E2
Color ID1/Black-Black
Local Dimming NA
Display
Screen Size 27" (69 cm)
Active Display Area (mm) 596.736(H) x 335.664(V)
Curvature Flat
Panel Type Rapid IPS
Resolution 2560x1440 (WQHD)
Pixel pitch (mm) 0.2331(H)x0.2331(V)
Aspect Ratio 16:9
Dynamic Refresh Rate technology FreeSync
Dynamic Refresh Rate Activated Range 48~180Hz
HDR (High dynamic range) DisplayHDR 400
SDR Brightness (nits) 400
HDR Brightness (Peak nits) 400
Contrast Ratio 1000:1
DCR (Dynamic Contrast Ratio) 100000000:1
Signal Frequency 64.56~266.4 KHz(H) / 48~180 Hz(V)
Refresh Rate 180Hz
Response Time (MPRT) 1ms(MPRT)
Response Time (GTG) 1ms
Response Time (Tr + Tf) 5ms
View Angles 178°(H)/178°(V)
NTSC (CIE1976 area percentage/overlap) 130%/90%
NTSC (CIE1931 area percentage/overlap) 105%/90%
sRGB (CIE1976 area percentage/overlap) 150%/99%
sRGB (CIE1931 area percentage/overlap) 150%/99%
Adobe RGB (CIE1976 area percentage/overlap) 130%/94%
Adobe RGB (CIE1931 area percentage/overlap) 110%/92%
DCI-P3 (CIE1976 area percentage/overlap) 120%/98%
DCI-P3 (CIE1931 area percentage/overlap) 110%/98%
Rec.709 (CIE1976 area percentage/overlap) 150%/99%
Rec.709 (CIE1931 area percentage/overlap) 150%/99%
Rec.2020 (CIE1976 area percentage/overlap) 85%/80%
Rec.2020 (CIE1931 area percentage/overlap) 80%/75%
Quantum Dot NA
Surface Treatment Anti-glare
Touch Screen Non-touch
Display Colors 1.07B
Color bit 10 bits (8 bits + FRC)
Note_DP 2560 x 1440 (Up to 180Hz)
Note_HDMI 2560x1440 (Up to 144Hz)
Note_DVI N/A
I/O Ports
HDMI 2
HDMI version 2.0b
HDMI HDCP version 2.3
DisplayPort 1
DisplayPort version 1.4a
DisplayPort HDCP version 2.3
Thunderbolt NA
Thunderbolt version NA
Thunderbolt HDCP version NA
USB Type C (DisplayPort Alternate) 1
DVI NA
D-Sub NA
Line-in NA
Mic-in NA
Mic-in upstream NA
Headphone-out 1
Audio Combo NA
USB 2.0 Type A 2
USB 2.0 Type B 1
USB 2.0 Type C NA
USB 3.2 Gen 1 Type A NA
USB 3.2 Gen 1 Type B NA
USB 3.2 Gen 1 Type C NA
USB 3.2 Gen 2x2 Type C NA
USB 3.2 Gen 2x2 Type A NA
Card reader N/A
Lock type Kensington Lock
Speaker NA
Webcam NA
Power
Country EU
Territory EU
Entity EU OBD
Power Type External Adaptor 19V 6.32A
Power Input 100~240V, 50/60Hz
On-mode Power Consumption (KWh/1000h) 26
Annual Energy Consumption (KWh) 26
Standby-mode Power Consumption (W) 0.5
Off-mode Power Consumption (W) 0.3
Energy Efficiency Rating F
Adapter's KC safety Number HU10967-18011
Power Cord Type C5
QC Output NA
QC Output Power NA
PD Output Type C
PD Output Power 65W
Warranty
Warranty 36M
Design
Adjustment (Tilt) -5° ~ 20°
Adjustment (Swivel) -45° ~ 45°
Adjustment (Height) 0 ~ 130 mm
Adjustment (Pivot) -90° ~ 90°
VESA Mounting 75x75mm
Frameless Design Yes
Carton
Carton Item (SG14) SG14-M1S177A-MNT
pcs/Carton 1
Pallet
pallet Q'ty (by air) pcs 22
Q'ty/20cy (by air) pcs 220
Q'ty/40cy (by air) pcs 462
Dimension (L)(by air) mm 1200
Dimension (W)(by air) mm 1000
Dimension (H)(by air) mm 1407
Net Weight (by air) kg 133
Gross Weight (by air) kg 182
pallet Q'ty (by sea) pcs 36
Q'ty/20cy (by sea) pcs 360
Q'ty/40cy (by sea) pcs 756
Dimension (L)(by sea) mm 1200
Dimension (W)(by sea) mm 1000
Dimension (H)(by sea) mm 2109
Net Weight (by sea) kg 218
Gross Weight (by sea) kg 299
Dimension & Weight (product)
Product Dimension with Stand (WxDxH) (mm) 613.5 x 196.5 x 402.1
Product Dimension with Stand (WxDxH) (inch) 24.15 x 7.74 x 15.83
Product Dimension without Stand (WxDxH) (mm) 613.5 x 69.8 x 362.5
Product Dimension without Stand (WxDxH) (inch) 24.15 x 2.75 x 14.27
Stand Dimension (WxDxH) (mm) 242.2 x 196.5 x 399.2
Stand Dimension (WxDxH) (inch) 9.54 x 7.74 x 15.72
Weight (Net kg) 6.05
Weight (Net lbs) 13.34
Weight Without Stand (kg) 3.95
Weight Without Stand (lbs) 8.71
Dimension & Weight (box)
Inside Carton Dimension (WxDxH) (cm) 84.7 x 14.5 x 49.1
Inside Carton Dimension (WxDxH) (inch) 33.35 x 5.71 x 19.33
Outer Carton Dimension (WxDxH) (cm) 86.2 x 15.8 x 51.5
Outer Carton Dimension (WxDxH) (inch) 33.94 x 6.22 x 20.28
Weight (Gross kg) 8.6
Weight (Gross lbs) 18.96
Accessories
DisplayPort Cable 1
HDMI Cable 0
DVI Cable 0
USB Type A to Type B Cable 1
USB Type C to Type A Cable 0
USB Type C to Type C Cable 0
Thunderbolt Cable 0
VGA Cable 0
3.5mm audio Cable 0
3.5mm combo audio Cable 0
3.5mm Mic Cable 0
Power Cord 1
AC Adaptor 1
Quick Guide 1
Warranty Card 0
Mouse Bungee Unit 0
VESA Screw 4
Switch Case 0
Portable Screen Protection Case 0
Monitor Hood 0
Speaker (Accessories) 0
Model Info
Series Name Gaming
Segment Name MAG
Segment Name2 MAG 274Q
Segment Name3 MAG 274QRF QD E2
Barcode Info
EAN 4711377126199
