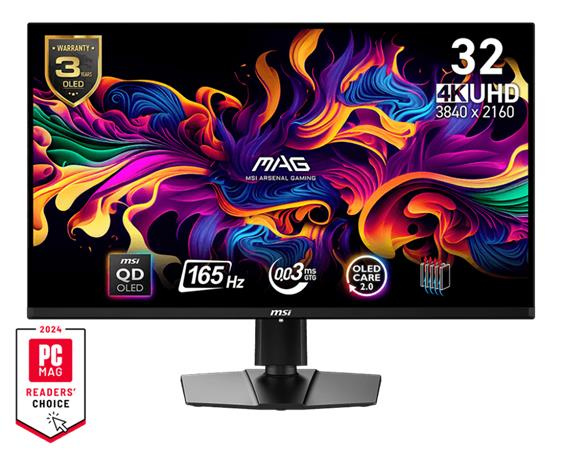

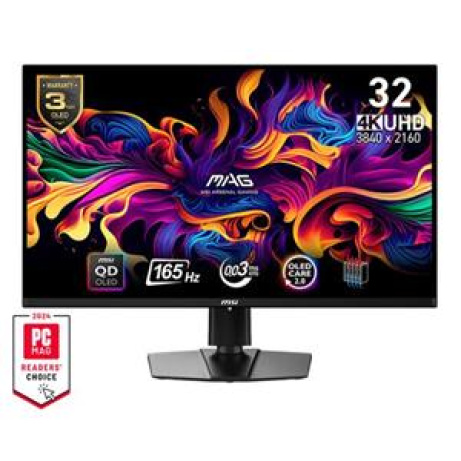

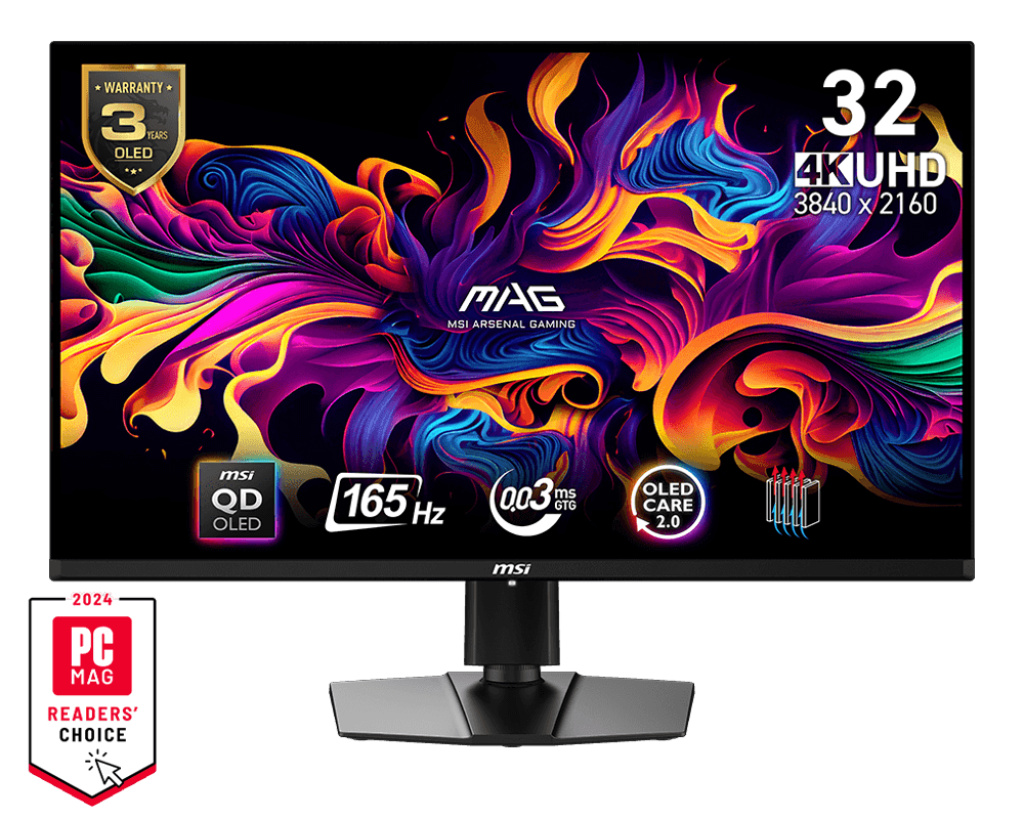

MSI Gaming monitor MAG 321UP QD-OLED, 31,5" QD-OLED/3840x2160 (UHD)/165Hz/0,03ms/2xHDMI/DP/USB-C/výškově nastavitelný,pivot/černá

MKT Spec MAG 321UP QD-OLED
Website Name MAG 321UP QD-OLED
Color ID1/Black-Black
Local Dimming NA
Display
Screen Size 31.5" (80 cm)
Active Display Area (mm) 699.48(H) x 394.73(V)
Curvature Flat
Panel Type QD-OLED
Resolution 3840x2160 (UHD)
Pixel pitch (mm) 0.1814(H)x0.1814(V)
Aspect Ratio 16:9
Dynamic Refresh Rate technology Adaptive-Sync
Dynamic Refresh Rate Activated Range 48~165Hz
HDR (High dynamic range) True Black 400
SDR Brightness (nits) 250
HDR Brightness (Peak nits) 1000
Contrast Ratio 1500000:1
DCR (Dynamic Contrast Ratio) NA
Signal Frequency 30~390 KHz(H) / 48~165 Hz(V)
Refresh Rate 165HZ
Response Time (MPRT) NA
Response Time (GTG) 0.03ms
Response Time (Tr + Tf) 0.1ms
View Angles 178°(H)/178°(V)
NTSC (CIE1976 area percentage/overlap) 120.5%/93.8%
NTSC (CIE1931 area percentage/overlap) 103.6%/91.5%
sRGB (CIE1976 area percentage/overlap) 138.2%/100%
sRGB (CIE1931 area percentage/overlap) 146.2%/100%
Adobe RGB (CIE1976 area percentage/overlap) 118.4%/97.5%
Adobe RGB (CIE1931 area percentage/overlap) 108.4%/94%
DCI-P3 (CIE1976 area percentage/overlap) 110.1%/99%
DCI-P3 (CIE1931 area percentage/overlap) 107.8%/98.4%
Rec.709 (CIE1976 area percentage/overlap) 138.2%/100%
Rec.709 (CIE1931 area percentage/overlap) 146.2%/100%
Rec.2020 (CIE1976 area percentage/overlap) 80.2%/80.2%
Rec.2020 (CIE1931 area percentage/overlap) 77.3%/77.3%
Quantum Dot Film NA
Surface Treatment Anti-Reflection
Touch Screen Non-touch
Display Colors 1.07B
Color bit 10 bits
Note_DP 3840 x 2160 (Up to 165Hz)
Note_HDMI 3840 x 2160 (Up to 165Hz)
Note_DVI N/A
I/O Ports
HDMI 2
HDMI version 2.1
HDMI HDCP version 2.3
DisplayPort 1
DisplayPort version 1.4a
DisplayPort HDCP version 2.3
Thunderbolt NA
Thunderbolt version NA
Thunderbolt HDCP version NA
USB Type C (DisplayPort Alternate) 1
DVI NA
D-Sub NA
Line-in NA
Mic-in NA
Mic-in upstream NA
Headphone-out 1
Audio Combo NA
USB 2.0 Type A NA
USB 2.0 Type B NA
USB 2.0 Type C NA
USB 3.2 Gen 1 Type A NA
USB 3.2 Gen 1 Type B NA
USB 3.2 Gen 1 Type C NA
USB 3.2 Gen 2x2 Type C NA
USB 3.2 Gen 2x2 Type A NA
Card reader NA
Lock type Kensington Lock
Speaker NA
Webcam NA
Power
Country EU
Territory EU
Entity EU OBD
Power Type Power Cable
Power Input 100~240V, 50/60Hz
On-mode Power Consumption (KWh/1000h) 50
Annual Energy Consumption (KWh) NA
Standby-mode Power Consumption (W) 0.5
Off-mode Power Consumption (W) 0.3
Energy Efficiency Rating G
Adapter's KC safety Number NA
Power Cord Type C13
QC Output NA
QC Output Power NA
PD Output Type C
PD Output Power 15W
Warranty
Warranty 36M
Design
Adjustment (Tilt) -5° ~ 15°
Adjustment (Swivel) -30° ~ 30°
Adjustment (Height) 0 ~ 110 mm
Adjustment (Pivot) -10° ~ 10°
Toolless Adjustable Stand YES
VESA Mounting 100x100mm
Frameless Design Yes
KVM NA
Console Mode YES
HDMI CEC YES
Firmware Update YES
Carton
Carton Item (SG14) SG14-M1S163A-MNT
pcs/Carton 1
Pallet
pallet Q'ty (by air) pcs 12
Q'ty/20cy (by air) pcs 120
Q'ty/40cy (by air) pcs 252
Dimension (L)(by air) mm 1200
Dimension (W)(by air) mm 1000
Dimension (H)(by air) mm 1160
Net Weight (by air) kg 141.6
Gross Weight (by air) kg 159.34
pallet Q'ty (by sea) pcs 24
Q'ty/20cy (by sea) pcs 240
Q'ty/40cy (by sea) pcs 504
Dimension (L)(by sea) mm 1200
Dimension (W)(by sea) mm 1000
Dimension (H)(by sea) mm 2192
Net Weight (by sea) kg 283.2
Gross Weight (by sea) kg 300.94
Dimension & Weight (product)
Product Dimension with Stand (WxDxH) (mm) 717 x 242 x 457
Product Dimension with Stand (WxDxH) (inch) 28.23 x 9.53 x 17.99
Product Dimension without Stand (WxDxH) (mm) 717 x 72 x 419
Product Dimension without Stand (WxDxH) (inch) 28.23 x 2.83 x 16.5
Stand Dimension (WxDxH) (mm) 309 x 242 x 391
Stand Dimension (WxDxH) (inch) 12.17 x 9.53 x 15.39
Weight (Net kg) 9.1
Weight (Net lbs) 20.06
Weight Without Stand (kg) 6.3
Weight Without Stand (lbs) 13.89
Dimension & Weight (box)
Inside Carton Dimension (WxDxH) (cm) 97.2 x 18.5 x 51.3
Inside Carton Dimension (WxDxH) (inch) 38.27 x 7.28 x 20.2
Outer Carton Dimension (WxDxH) (cm) 99 x 20 x 53.8
Outer Carton Dimension (WxDxH) (inch) 38.98 x 7.87 x 21.18
Weight (Gross kg) 11.8
Weight (Gross lbs) 26.01
Accessories
DisplayPort Cable 1
DisplayPort Cable Version 1.4
HDMI Cable 1
HDMI Cable Version 2.1
DVI Cable 0
DVI Cable Version NA
USB Type A to Type B Cable 0
USB Type C to Type A Cable 0
USB Type C to Type C Cable 0
Thunderbolt Cable 0
VGA Cable 0
3.5mm audio Cable 0
3.5mm combo audio Cable 0
3.5mm Mic Cable 0
Power Cord 1
AC Adaptor 0
Quick Guide 1
Warranty Card 0
Mouse Bungee Unit 0
VESA Screw 4
Switch Case 0
Portable Screen Protection Case 0
Monitor Hood 0
Speaker (Accessories) 0
Model Info
Series Name Gaming
Segment Name MAG
Segment Name2 MAG 321U
Segment Name3 MAG 321UP QD-OLED
Barcode Info
EAN 4711377212250
