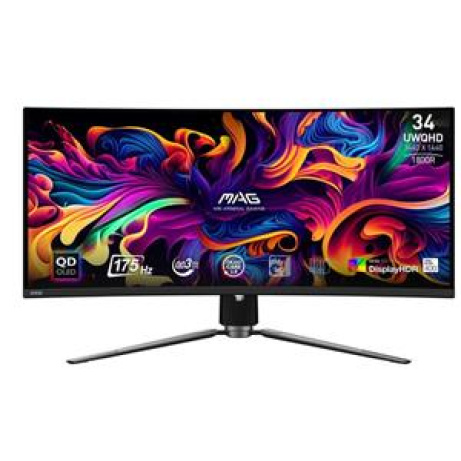

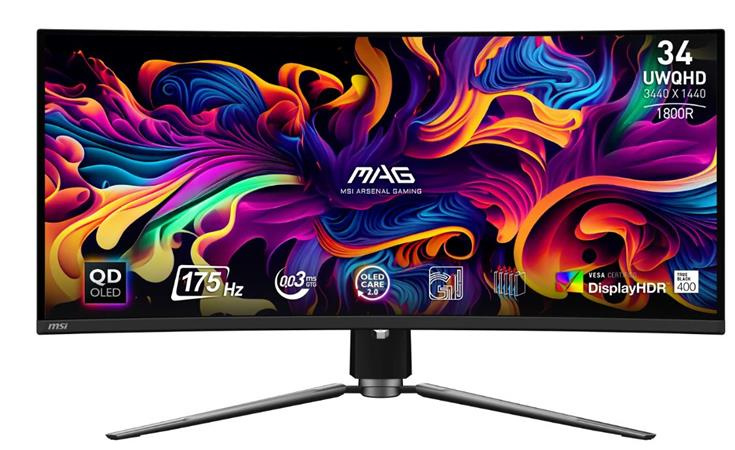

MSI Gaming monitor MAG 341CQP QD-OLED, 34,18" QD-OLED zakřivený/3440x1440 (UWQHD)/175Hz/0,03ms/2xHDMI/DP/USB-C/3xUSB/Výškově nast.

Product Spec. :
Export

Display Website Spec.

Model
Part No 9S6-3DD04T-001
SKU Number 9S6-3DD04T-001
Vendor TPV
Brand MSI
Series Name Gaming
Segment Name MAG
Segment Name2 MAG 341CQ
Segment Name3 MAG 341CQP QD-OLED
Model 3DD0
MKT Name MAG 341CQP QD-OLED
Entity MKT Name MAG 341CQP QD-OLED
MKT Spec MAG 341CQP QD-OLED
Website Name MAG 341CQP QD-OLED
Color ID1/Black-Black
Local Dimming NA
Display
Screen Size 34.18" (86.82 cm)
Active Display Area (mm) 800.1(H) x 337.1(V)
Curvature Curve 1800R
Panel Type QD-OLED
Resolution 3440x1440 (UWQHD)
Pixel pitch (mm) 0.2315(H)x0.2315(V)
Aspect Ratio 21:9
Dynamic Refresh Rate technology FreeSync Premium Pro
Dynamic Refresh Rate Activated Range 48~175Hz
HDR (High dynamic range) True Black 400
SDR Brightness (nits) 250
HDR Brightness (Peak nits) 1000
Contrast Ratio 1500000:1
DCR (Dynamic Contrast Ratio) NA
Signal Frequency 31~274 KHz(H) / 48~175 Hz(V)
Refresh Rate 175Hz
Response Time (MPRT) NA
Response Time (GTG) 0.03ms
Response Time (Tr + Tf) 0.05ms
View Angles 178°(H)/178°(V)
NTSC (CIE1976 area percentage/overlap) 121.3%/94.2%
NTSC (CIE1931 area percentage/overlap) 105.4%/92.3%
sRGB (CIE1976 area percentage/overlap) 139.1%/100 %
sRGB (CIE1931 area percentage/overlap) 148.8%/100%
Adobe RGB (CIE1976 area percentage/overlap) 119.2%/97.8%
Adobe RGB (CIE1931 area percentage/overlap) 110.3%/94.6%
DCI-P3 (CIE1976 area percentage/overlap) 110.8%/99.3%
DCI-P3 (CIE1931 area percentage/overlap) 109.7%/99.1%
Rec.709 (CIE1976 area percentage/overlap) 139.1%/100%
Rec.709 (CIE1931 area percentage/overlap) 148.8%/100%
Rec.2020 (CIE1976 area percentage/overlap) 80.7%/80.7%
Rec.2020 (CIE1931 area percentage/overlap) 78.7%/78.7%
Quantum Dot YES
Surface Treatment Anti-Reflection
Touch Screen Non-touch
Display Colors 1.07B
Color bit 10 bits
Note_DP 3440 x 1440 (Up to 175Hz)
Note_HDMI 3440 x 1440 (Up to 175Hz)
Note_DVI N/A
I/O Ports
HDMI 2
HDMI version 2.1
HDMI HDCP version 2.3
DisplayPort 1
DisplayPort version 1.4a
DisplayPort HDCP version 2.3
Thunderbolt NA
Thunderbolt version NA
Thunderbolt HDCP version NA
USB Type C (DisplayPort Alternate) 1
DVI NA
D-Sub NA
Line-in NA
Mic-in NA
Mic-in upstream NA
Headphone-out 1
Audio Combo NA
USB 2.0 Type A 2
USB 2.0 Type B 1
USB 2.0 Type C NA
USB 3.2 Gen 1 Type A NA
USB 3.2 Gen 1 Type B NA
USB 3.2 Gen 1 Type C NA
USB 3.2 Gen 2x2 Type C NA
USB 3.2 Gen 2x2 Type A NA
Card reader NA
Lock type Kensington Lock
Speaker NA
Webcam NA
Power
Country EU
Territory EU
Entity EU OBD
Power Type Power Cable
Power Input 100~240V, 50/60Hz
On-mode Power Consumption (KWh/1000h) 50
Annual Energy Consumption (KWh) N/A
Standby-mode Power Consumption (W) 0.5
Off-mode Power Consumption (W) 0.3
Energy Efficiency Rating G
Adapter's KC safety Number N/A
Power Cord Type C13
QC Output NA
QC Output Power NA
PD Output Type C
PD Output Power 15W
Warranty
Warranty 36M
Design
Adjustment (Tilt) -5° ~ 20°
Adjustment (Swivel) -30° ~ 30°
Adjustment (Height) 0 ~ 100 mm
Adjustment (Pivot) NA
VESA Mounting 100x100mm
Frameless Design Yes
Carton
Carton Item (SG14) SG14-M1S154A-MNT
pcs/Carton 1
Pallet
pallet Q'ty (by air) pcs 10
Q'ty/20cy (by air) pcs 100
Q'ty/40cy (by air) pcs 210
Dimension (L)(by air) mm 1200
Dimension (W)(by air) mm 1000
Dimension (H)(by air) mm 1160
Net Weight (by air) kg 124.5
Gross Weight (by air) kg 145.74
pallet Q'ty (by sea) pcs 20
Q'ty/20cy (by sea) pcs 200
Q'ty/40cy (by sea) pcs 420
Dimension (L)(by sea) mm 1200
Dimension (W)(by sea) mm 1000
Dimension (H)(by sea) mm 2192
Net Weight (by sea) kg 249
Gross Weight (by sea) kg 270.24
Dimension & Weight (product)
Product Dimension with Stand (WxDxH) (mm) 812 x 318 x 427
Product Dimension with Stand (WxDxH) (inch) 31.97 x 12.52 x 16.81
Product Dimension without Stand (WxDxH) (mm) 812 x 130 x 361
Product Dimension without Stand (WxDxH) (inch) 31.97 x 5.12 x 14.21
Stand Dimension (WxDxH) (mm) 633 x 318 x 371
Stand Dimension (WxDxH) (inch) 24.92 x 12.52 x 14.61
Weight (Net kg) 8.8
Weight (Net lbs) 19.4
Weight Without Stand (kg) 6.67
Weight Without Stand (lbs) 14.7
Dimension & Weight (box)
Inside Carton Dimension (WxDxH) (cm) 100 x 23.3 x 51.3
Inside Carton Dimension (WxDxH) (inch) 39.37 x 9.17 x 20.2
Outer Carton Dimension (WxDxH) (cm) 101.5 x 24.8 x 53.6
Outer Carton Dimension (WxDxH) (inch) 39.96 x 9.76 x 21.1
Weight (Gross kg) 12.45
Weight (Gross lbs) 27.45
Accessories
DisplayPort Cable 1
HDMI Cable 1
DVI Cable 0
USB Type A to Type B Cable 1
USB Type C to Type A Cable 0
USB Type C to Type C Cable 0
Thunderbolt Cable 0
VGA Cable 0
3.5mm audio Cable 0
3.5mm combo audio Cable 0
3.5mm Mic Cable 0
Power Cord 1
AC Adaptor 0
Quick Guide 1
Warranty Card 0
Mouse Bungee Unit 0
VESA Screw 4
Switch Case 0
Portable Screen Protection Case 0
Monitor Hood 0
Speaker (Accessories) 0
Model Info
Series Name Gaming
Segment Name MAG
Segment Name2 MAG 341CQ
Segment Name3 MAG 341CQP QD-OLED
Barcode Info
EAN 4711377135702
