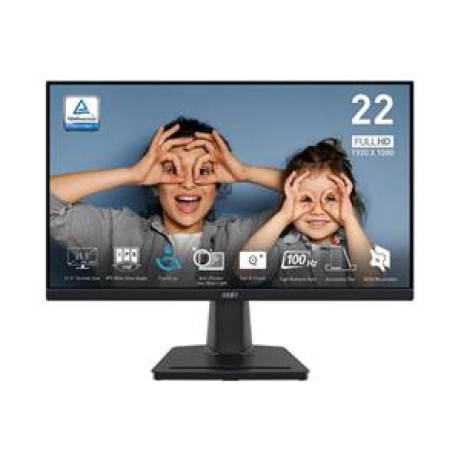

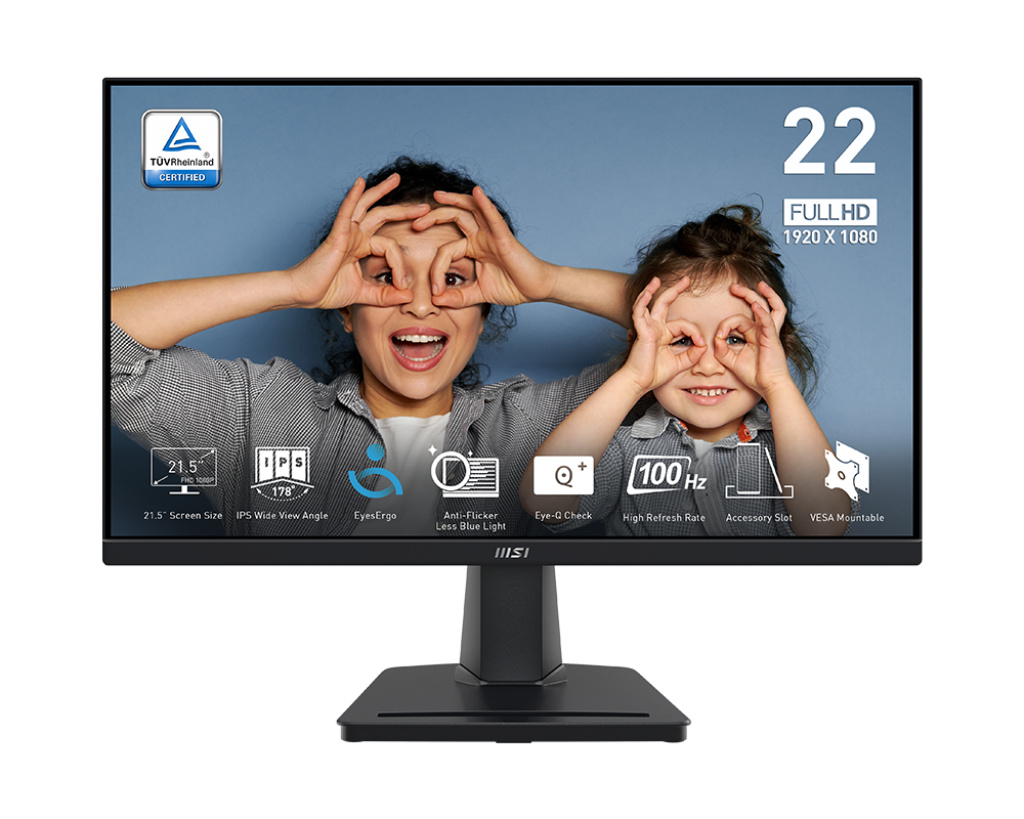

MSI monitor PRO MP225, 21,5" IPS/1920 x 1080 FHD/100Hz/1ms/HDMI/D-Sub

MKT Name PRO MP225
Entity MKT Name PRO MP225
MKT Spec PRO MP225
Website Name PRO MP225
Color ID1/Black-Black
Local Dimming NA
Display
Screen Size 21.5" (55 cm)
Active Display Area (mm) 476.064(H) x 267.786(V)
Curvature Flat
Panel Type IPS
Resolution 1920x1080 (FHD)
Pixel pitch (mm) 0.24795(H)x0.24795(V)
Aspect Ratio 16:9
Dynamic Refresh Rate technology Adaptive-Sync
Dynamic Refresh Rate Activated Range 48~100Hz
HDR (High dynamic range) N/A
SDR Brightness (nits) 250
HDR Brightness (Peak nits) NA
Contrast Ratio 1300:1
DCR (Dynamic Contrast Ratio) 100000000:1
Signal Frequency 52.704~110.1 KHz (H) / 48~100 Hz(V)
Refresh Rate 100HZ
Response Time (MPRT) 1ms(MPRT)
Response Time (GTG) 4ms
Response Time (Tr + Tf) 15.253 (7.033 + 8.22)
View Angles 178°(H)/178°(V)
NTSC (CIE1976 area percentage/overlap) 93.24/80.04
NTSC (CIE1931 area percentage/overlap) 73.7/68.98
sRGB (CIE1976 area percentage/overlap) 107.39/96.64
sRGB (CIE1931 area percentage/overlap) 104.88/96.73
Adobe RGB (CIE1976 area percentage/overlap) 91.76/84.82
Adobe RGB (CIE1931 area percentage/overlap) 77.23/73.27
DCI-P3 (CIE1976 area percentage/overlap) 85.11/84.53
DCI-P3 (CIE1931 area percentage/overlap) 76.78/76.64
Rec.709 (CIE1976 area percentage/overlap) 107.39/96.64
Rec.709 (CIE1931 area percentage/overlap) 104.88/96.73
Rec.2020 (CIE1976 area percentage/overlap) 61.47/61.47
Rec.2020 (CIE1931 area percentage/overlap) 54.52/54.52
Quantum Dot NA
Surface Treatment Anti-glare
Touch Screen Non-touch
Display Colors 16.7M
Color bit 8 bits (6 bits + FRC)
Note_DP NA
Note_HDMI 1920 X 1080 (Up to 100Hz)
Note_DVI N/A
I/O Ports
HDMI 1
HDMI version 1.4b
HDMI HDCP version 1.4
DisplayPort NA
DisplayPort version NA
DisplayPort HDCP version NA
Thunderbolt NA
Thunderbolt version NA
Thunderbolt HDCP version NA
USB Type C (DisplayPort Alternate) NA
DVI NA
D-Sub 1
Line-in 1
Mic-in NA
Mic-in upstream NA
Headphone-out 1
Audio Combo NA
USB 2.0 Type A NA
USB 2.0 Type B NA
USB 2.0 Type C NA
USB 3.2 Gen 1 Type A NA
USB 3.2 Gen 1 Type B NA
USB 3.2 Gen 1 Type C NA
USB 3.2 Gen 2x2 Type C NA
USB 3.2 Gen 2x2 Type A NA
Card reader N/A
Lock type Kensington Lock
Speaker NA
Webcam NA
Power
Country EU
Territory EU
Entity EU OBD
Power Type External Adaptor 12V 2A
Power Input 100~240V, 50/60Hz
On-mode Power Consumption (KWh/1000h) 15
Annual Energy Consumption (KWh) 22
Standby-mode Power Consumption (W) 0.5
Off-mode Power Consumption (W) 0.3
Energy Efficiency Rating E
Adapter's KC safety Number N/A
Power Cord Type NA
QC Output NA
QC Output Power N/A
PD Output NA
PD Output Power N/A
Warranty
Warranty 12M
Design
Adjustment (Tilt) -5° ~ 20°
Adjustment (Swivel) NA
Adjustment (Height) NA
Adjustment (Pivot) NA
VESA Mounting 100x100mm
Frameless Design Yes
Carton
Carton Item (SG14) SG14-M1S174A-MNT
pcs/Carton 1
Pallet
pallet Q'ty (by air) pcs 58
Q'ty/20cy (by air) pcs 580
Q'ty/40cy (by air) pcs 1218
Dimension (L)(by air) mm 1200
Dimension (W)(by air) mm 1000
Dimension (H)(by air) mm 1487
Net Weight (by air) kg 237.8
Gross Weight (by air) kg 263
pallet Q'ty (by sea) pcs 90
Q'ty/20cy (by sea) pcs 900
Q'ty/40cy (by sea) pcs 1890
Dimension (L)(by sea) mm 1200
Dimension (W)(by sea) mm 1000
Dimension (H)(by sea) mm 2200
Net Weight (by sea) kg 377.2
Gross Weight (by sea) kg 403
Dimension & Weight (product)
Product Dimension with Stand (WxDxH) (mm) 489.4 x 182.3 x 384.8
Product Dimension with Stand (WxDxH) (inch) 19.27 x 7.18 x 15.15
Product Dimension without Stand (WxDxH) (mm) 489.4 x 51.3 x 291.5
Product Dimension without Stand (WxDxH) (inch) 19.27 x 2.02 x 11.48
Stand Dimension (WxDxH) (mm) 200.5 x 182.3 x 143.8
Stand Dimension (WxDxH) (inch) 7.89 x 7.18 x 5.66
Weight (Net kg) 2.3
Weight (Net lbs) 5.07
Weight Without Stand (kg) 2
Weight Without Stand (lbs) 4.41
Dimension & Weight (box)
Inside Carton Dimension (WxDxH) (cm) 56.7 x 11.8 x 36.5
Inside Carton Dimension (WxDxH) (inch) 22.32 x 4.65 x 14.37
Outer Carton Dimension (WxDxH) (cm) 58.7 x 13.8 x 39.8
Outer Carton Dimension (WxDxH) (inch) 23.11 x 5.43 x 15.67
Weight (Gross kg) 4.1
Weight (Gross lbs) 9.04
Accessories
DisplayPort Cable 0
HDMI Cable 1
DVI Cable 0
USB Type A to Type B Cable 0
USB Type C to Type A Cable 0
USB Type C to Type C Cable 0
Thunderbolt Cable 0
VGA Cable 0
3.5mm audio Cable 0
3.5mm combo audio Cable 0
3.5mm Mic Cable 0
Power Cord 0
AC Adaptor 1
Quick Guide 1
Warranty Card 0
Mouse Bungee Unit 0
VESA Screw 0
Switch Case 0
Portable Screen Protection Case 0
Monitor Hood 0
Speaker (Accessories) 0
Model Info
Series Name Pro
Segment Name PRO
Segment Name2 MP225
Segment Name3 MP225
Barcode Info
EAN 4711377180146
