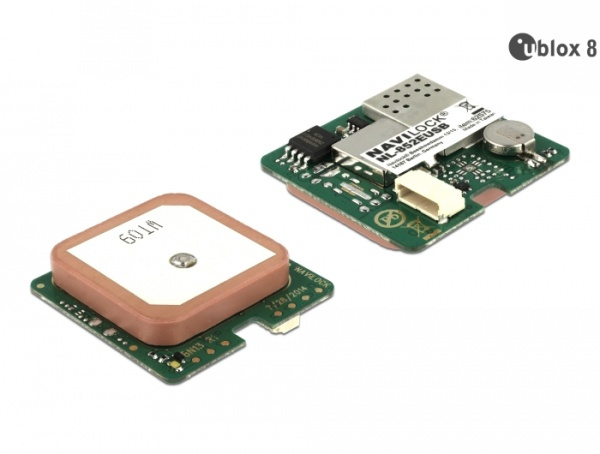

GNSS modules are fully assembled receiver with patch antenna, backup battery etc .. This version uses USB 2.0.

Technické detaily
• Connector: WTB, USB 2.0, 6 pin, pitch 1.0 mm
• Chipset: u-blox 8 UBX-M8030-KT
• Frequency:
GPS: L1, 1575.4200 MHz
GLONASS: L1, 1602 (k x 0,5625) MHz
BEIDOU COMPASS: B1, 1561.0980 MHz
GALILEO E1, 1575.4200 MHz
QZSS L1, 1575.4200 MHz
• Accepts the signals of up to 72 satellites at the same time
• Supports AssistNow online/offline,
SBAS (WAAS, EGNOS, QZSS and MSAS)
• Supports NMEA 0183 protocols: GGA, GSA, GSV, RMC, VTG
• USB specification 2.0
• TTL 3.3 V PPS signal on Pin 6
• Auto Baud Rate up to 115200 bps
• Update rate:
single GNSS: 18 Hz (e.g. GPS solo)
multi GNSS: 10 Hz (e.g. GPS + GLONASS)
• Sensitivity: –167 dBm
• LED-indicator for GPS-status
• Operating temperature:
-40 °C ~ 85 °C without battery
-20 °C ~ 60 °C with battery
• Power supply: 5 Volt
• Current consumption: max. 45 mA
• Cold start in ca. 26 seconds
• Hot start in ca. 1 second
• Positioning accuracy:
2.5 m CEP (Circular Error Probable) and
2.0 m CEP with SBAS
• Dimension (LxWxH): ca. 30.0 x30.0 x 7.9 mm

Systémové požadavky
Device with free USB 2.0 input

Obsah balení
GNSS module
