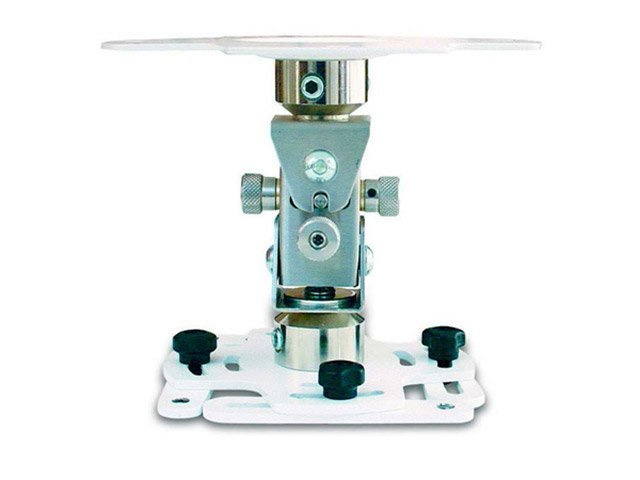

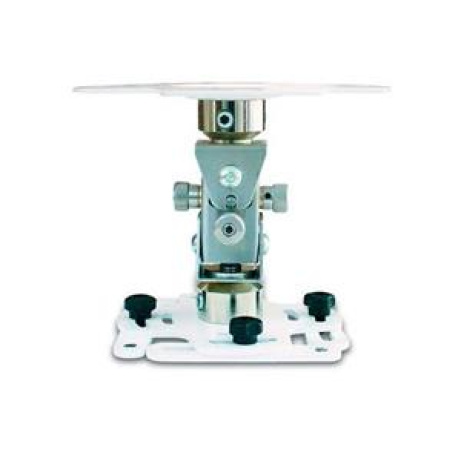

Ceiling Mount PJ01UCM
Universal ceiling mount for dedicated Sharp/NEC projectors.



MOUNT
Mount Type Ceiling Mount
Max. Load Capacity [kg] 20

MECHANICAL
Tilt Function [°] up to 30
Swivel Function [°] 360
Length [mm] 147
Length (with Extension Column) [mm] with extension column CM01EX: 418 to 618; with extension column CM02EX: 685 to 1085

WEIGHT AND DIMENSIONS
Weight [kg] 3.2
Shipping Dimensions (W x H x D) [mm] 250 x 250 x 230

ACCESSORIES
Optional Extension Column CM01EX Order Code 100014001; Shipping Dimensions (W x H x T) 90 x 90 x 470 mm; Weight 1.4 kg
Optional Extension Column CM02EX Order Code 100014002; Shipping Dimensions (W x H x D) 90 x 90 x 750 mm; Weight 2.1 kg

ADDITIONAL FEATURES
Colour Versions White
Warranty 5 years
Shipping Content 1x Calibration Device; 1x Ceiling Plate; 2x 105mm Adjustable Arms; 4x 150mm Adjustable Arms; 5x M4 Screws; Mount
