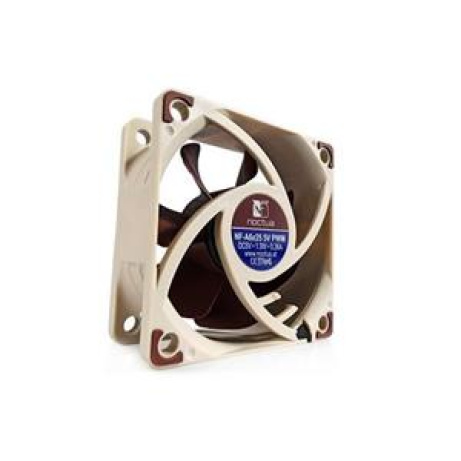

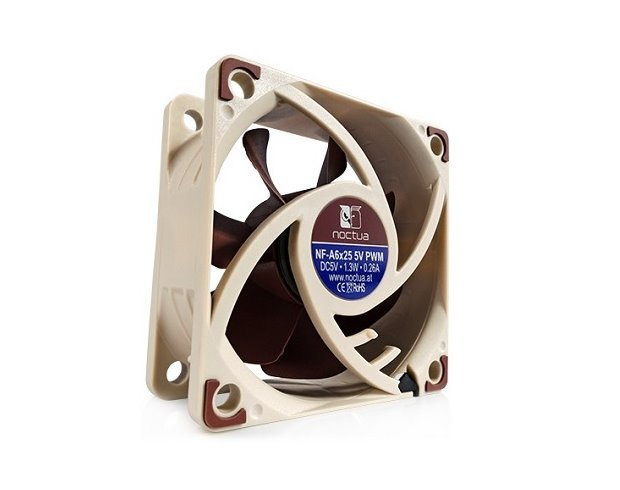

NF-A6x25 PWM 5V je další varianta oblíbeneného ventilátoru NF-A6x25, který disponuje vlastnostmi, jako je: aerodynamický design Flow Acceleration Channels a AAO Noctua rám. Verze PWM podporuje plně automatizované řízení rychlosti NE-FD1 PWM IC a technologii Smooth Commutation Drive a prvotřídní ložiska SSO2. Navíc disponuje modulární kabeláží - OmniJoin Adaptor Set. Ventilátor NF-A6x25 5V 25 PWM je skvělou volbou pro použití na místa, kteřá vyžadují 5V a PWM ovládání.


NF-A6x25 PWM 5V je další varianta oblíbeneného ventilátoru NF-A6x25, který disponuje vlastnostmi, jako je: aerodynamický design Flow Acceleration Channels a AAO Noctua rám. Technologie Smooth Commutation Drive a prvotřídní ložiska SSO2 zajišťují plynulý chod a vynikající stabilitu. Navíc disponuje modulární kabeláží - OmniJoin Adaptor Set. Ventilátor NF-A6x25 5V 25 PWM je skvělou volbou pro použití na místa, kteřá vyžadují 5V napájení.


Flow Acceleration Channels
The NF-A6x25 impeller features suction side Flow Acceleration Channels. By speeding up the airflow at the crucial outer blade regions, this measure reduces suction side flow separation and thus leads to better efficiency and lower vortex noise. button

Reduced Motor Hub Size
Thanks to its streamlined, compact motor design, the NF-A6x25’s motor hub is smaller than with conventional 6cm fans. This allows for more blade surface area and thus contributes to the NF-A6x25’s superior airflow and pressure performance.

AAO Frame
Noctua’s AAO (Advanced Acoustic Optimisation) frames feature integrated anti-vibration pads as well as Noctua’s proprietary Stepped Inlet Design and Inner Surface Microstructures, both of which further refine the fan’s performance/noise efficiency. button

Stepped Inlet Design
Noctua’s Stepped Inlet Design adds turbulence to the influx in order to facilitate the transition from laminar flow to turbulent flow, which reduces tonal intake noise, improves flow attachment and increases suction capacity, especially in space restricted environments. button

Inner Surface Microstructures
With the tips of the fan blades ploughing through the boundary layer created by the Inner Surface Microstructures, flow separation from the suction side of the blades is significantly suppressed, which results in reduced blade passing noise and improved airflow and pressure efficiency. button

Integrated Anti-Vibration Pads
Integrated Anti-Vibration Pads made from extra-soft silicone minimise the transmission of minute vibrations while maintaining full compatibility with all standard mounting systems and fan clips used on heatsinks.

SSO2 Bearing
The NF-A6x25 features the further optimised second generation of Noctua’s renowned, time-tested SSO bearing. With SSO2, the rear magnet is placed closer to the axis to provide even better stabilisation, precision and durability. button

Custom designed PWM IC with SCD
Supporting fully automatic PWM speed control, the NF-A6x25 PWM uses Noctua’s custom designed NE-FD1 PWM IC that integrates Smooth Commutation Drive (SCD) technology. By providing smoother torque impulses, SCD suppresses PWM switching noises and thus makes the fan quieter at low speeds.

Low-Noise Adaptor
The NF-A6x25 PWM is supplied with a Low-Noise Adaptor (L.N.A.) that reduces the maximum fan speed from 3000 to 2300rpm. The L.N.A can be used either to run the fan at a fixed speed of 2300rpm or to cap the maximum speed when using automatic PWM control.

Extensive Cabling Options
The fan’s short 20cm primary cable minimises cable clutter in typical applications while the supplied 30cm extension provides extended reach when necessary. Both cables are fully sleeved and the supplied 3:4 pin adaptor allows to connect the fan directly to the power supply.

5V version
Many devices such as network or storage solutions use 5 volt 60mm fans. With the same operating voltage and the included OmniJoin™ adaptor set that makes it compatible with proprietary fan headers, the NF-A6x25 PWM 5V is ideal for replacing noisy or broken 5V 60mm fans.
