POPIS:

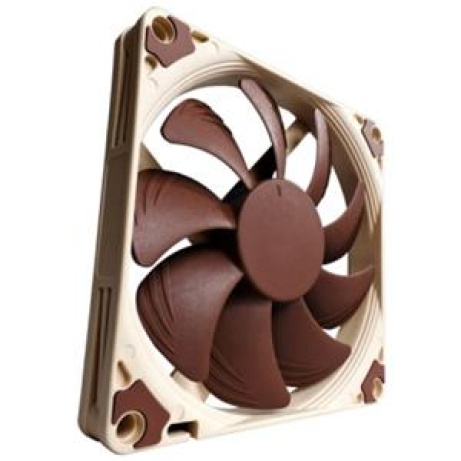

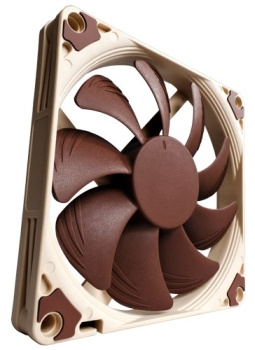

Špičkový ultratichý ventilátor nové generace NF-A9x14 PWM. Je vybaven druhou generací osvědčených SSO ložisek a novou PWM IC technologií Smooth Commutation Drive (SCD) pro plně automatické řízení rychlosti otáček, tichý chod a malou spotřebu.

Psychoakusticky optimovaná geometrie a povrch lopatek (zkosené špičky - bevelled blade tips), innovativní samostabilizující olejové ložisko.

14mm Low Profile Design
Measuring only 14mm in thickness, the NF-A9x14 is much slimmer than standard 92x25mm fans. This makes it ideal for all applications where standard fans would take up too much space, such as low profile CPU coolers in HTPC builds or server environments.

Flow Acceleration Channels
The NF-A9x14 impeller features suction side Flow Acceleration Channels. By speeding up the airflow at the crucial outer blade regions, this measure reduces suction side flow separation and thus leads to better efficiency and lower vortex noise. button

AAO Frame
Noctua’s AAO (Advanced Acoustic Optimisation) frames feature integrated anti-vibration pads as well as Noctua’s proprietary Stepped Inlet Design and Inner Surface Microstructures, both of which further refine the fan’s performance/noise efficiency. button

Stepped Inlet Design
Noctua’s Stepped Inlet Design adds turbulence to the influx in order to facilitate the transition from laminar flow to turbulent flow, which reduces tonal intake noise, improves flow attachment and increases suction capacity, especially in space restricted environments. button

Inner Surface Microstructures
With the tips of the fan blades ploughing through the boundary layer created by the Inner Surface Microstructures, flow separation from the suction side of the blades is significantly suppressed, which results in reduced blade passing noise and improved airflow and pressure efficiency. button

Integrated Anti-Vibration Pads
Integrated Anti-Vibration Pads made from extra-soft silicone minimise the transmission of minute vibrations while maintaining full compatibility with all standard mounting systems and fan clips used on heatsinks.

SSO2 Bearing
The NF-A9x14 features the further optimised second generation of Noctua’s renowned, time-tested SSO bearing. With SSO2, the rear magnet is placed closer to the axis to provide even better stabilisation, precision and durability. button

Custom designed PWM IC with SCD
Supporting fully automatic PWM speed control, the NF-A9x14 uses Noctua’s novel, custom designed NE-FD1 PWM IC that integrates Smooth Commutation Drive (SCD) technology. By providing smoother torque impulses, SCD suppresses PWM switching noises and thus makes the fan quieter at lower speeds. button

Low-Noise Adaptor
The NF-A9x14 is supplied with a Low-Noise Adaptor (L.N.A.) that reduces the maximum fan speed from 2200 to 1700rpm. The L.N.A can be used either to run the fan at a fixed speed of 1200rpm or to cap the maximum speed when using automatic PWM control.

Extensive Cabling Options
The fan’s short 20cm primary cable minimises cable clutter in typical applications while the supplied 30cm extension provides extended reach when necessary. Both cables are fully sleeved and a 4-pin y-cable allows to connect a second NF-A9x14 fan to the same PWM fan header for automatic control.
