Go big
Versatile videowall display.

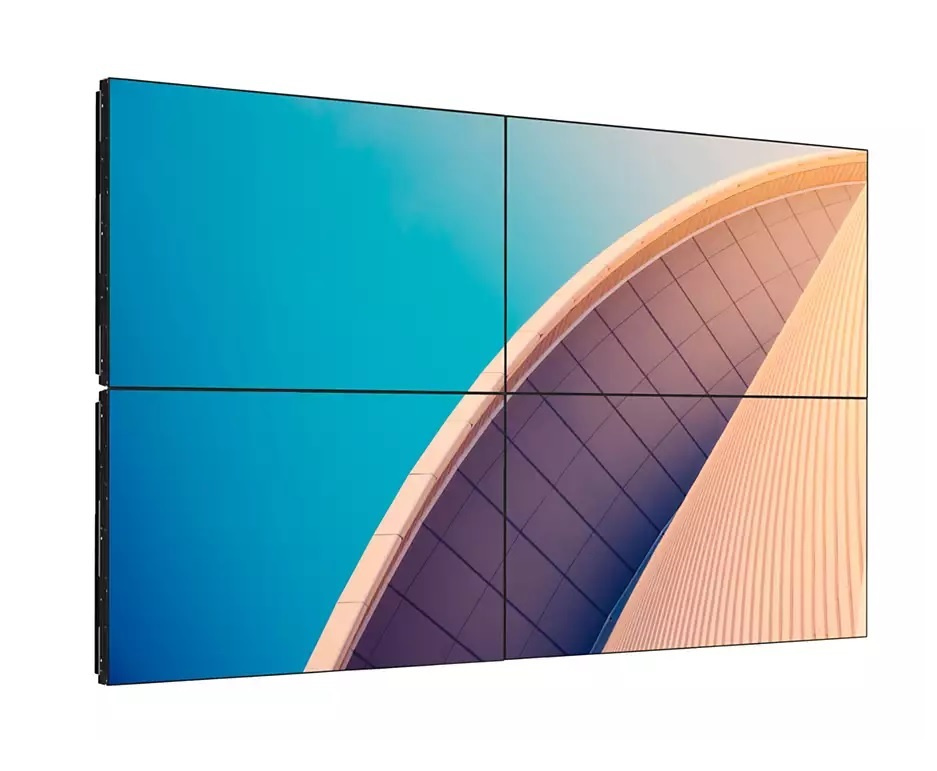

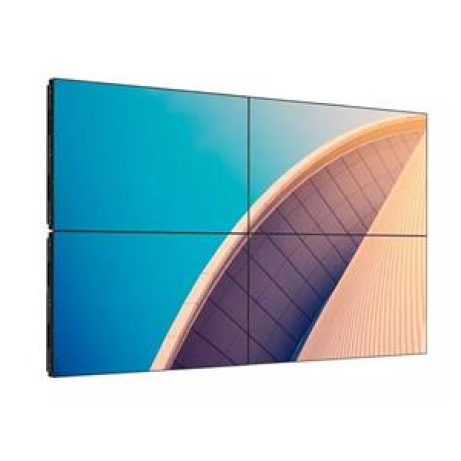

Command attention with a Philips X-Line Professional Videowall Display. Crisp contrast and narrow bezels enable clear, distraction-free imaging. Whether you're running an airport or hosting a conference

Specifications
Picture/Display
• Diagonal screen size: 48.5 inch / 123.2 cm
• Panel resolution: 1920x1080p
• Optimum resolution: 1920 x 1080 @ 60 Hz
• Brightness: 500 cd/m2
• Contrast ratio (typical): 1200 : 1
• Dynamic contrast ratio: 500,000 : 1
• Response time (typical): 8 ms
• Aspect ratio: 16:9
• Viewing angle (H / V): 178 / 178 degree
• Pixel pitch: 0.559 x 0.559 mm
• Display colors: 1.07B
• Picture enhancement: 3/2 - 2/2 motion pull down, Motion compens. deinterlacing, Progressive scan, Dynamic contrast enhancement
• Haze: 3%

Supported Display Resolution
• Computer formats
Resolution Refresh rate
1024 x 768 60, 75Hz
1280 x 1024 60Hz
1280 x 768 60Hz
1280 x 800 60Hz
1280 x 960 60Hz
1360 x 768 60Hz
1366 x 768 60Hz
1600 x 1200 60Hz
1920 x 1080 60Hz
640 x 480 60, 72, 75Hz
720 x 400 70Hz
800 x 600 60, 75Hz
3840 X 2160 30Hz (Tiling)
• Video formats
Resolution Refresh rate
1080i 25, 30Hz
1080p 50, 60Hz
720p 50, 60Hz

Connectivity
• Video input: DVI-D, VGA (Analog D-Sub), Component (BNC x3), Display Port1.2 (x1), HDMI 1.4 (x2), Composite (Share component Y), USB 2.0 ( x1)
• Video output: DisplayPort 1.2 (x1), DVI-I (x1)
• Audio input: 3.5 mm jack, Audio Left/Right (RCA)
• Audio output: 3.5mm jack, External speaker connection
• External control: IR (in/out) 3.5 mm jack, RJ45, RS232C (in/out) 2.5 mm jack
• Other connections: OPS

Convenience
• Signal loop through: RS232, DisplayPort, DVI Loopthrough, IR Loopthrough
• Ease of installation: Carrying Handles, Smart Insert
• Energy saving functions: Smart Power
• Network controllable: RS232, RJ45
• Placement: Portrait, Landscape
• Screen saving functions: Pixel Shift, Low Bright
• Tiled Matrix: Up to 10 x 10
• Control software: SICP / CMND&Contro

Dimensions
• Bezel width: Top/Left: 2.3mm, Bottom/Right: 1.2mm
• Set dimensions (W x H x D): 1077.6 x 607.8 x 93.5 mm mm
• Set dimensions in inch (W x H x D): 42.4 x 23.9 x 3.68 inch
• VESA Mount: 400 x 400 mm, M6
• Product weight: 21.0 kg
• Product weight (lb): 47.30 lb
• Smart Insert mount: 100 x100mm, 6 x M4 L6
• Bezel thickness: 3.5 mm (B-B)

Operating conditions
• Temperature range (operation): 0 ~ 40 °C
• Temperature range (storage): -20 ~ 60 °C
• Altitude: 0 ~ 3000 m
• MTBF: 50,000 hour(s)
• Humidity range (operation)[RH]: 20 ~ 80% RH (No condensation)
• Humidity range (storage) [RH]: 5 ~ 95% RH (No condensation)

Power
• Standby power consumption: <0.5W
• Comsumption (Max): 220 W
• Consumption (Typical): 100 W


Sound
• Built-in speakers: 2 x 10W (RMS)

Accessories
• Included Accessories: IR cable, IR sensor cable (1.8 m) (x1), RS232 daisy chain cable, Kit-1 (x1), Kit-2 (x2), Thumb Screw (x8)
• Included accessories: Remote Control, Batteries for remote control, AC Power Cord, Quick start guide, DVI-D cable, RS232 cable, Edge alignment pins
• Optional accessories: Color calibration kit, CRD41, Edge finishing kit

Miscellaneous
• On-Screen Display Languages: Arabic, Simplified Chinese, Traditional Chinese, English, French, German, Italian, Japanese, Polish, Russian, Spanish, Turkish
• Regulatory approvals: CE, CB, BSMI, CU, ETL, FCC, Class A, PSB, RoHS
• Warranty: 3 year warranty

Multimedia Applications
• USB Playback Audio: AAC, AIF, AIFF, ASF, M3U, M4A, MP3, MP4, PLS, WAV, WMA
• USB Playback Picture: BMP, GIF, JPEG, JPG, PNG
• USB Playback Video: ISM, M4V, MK3D, MKV, MPD, MPEG, MPG, MT2, MTS, TS, VOB, MP4, TTS
