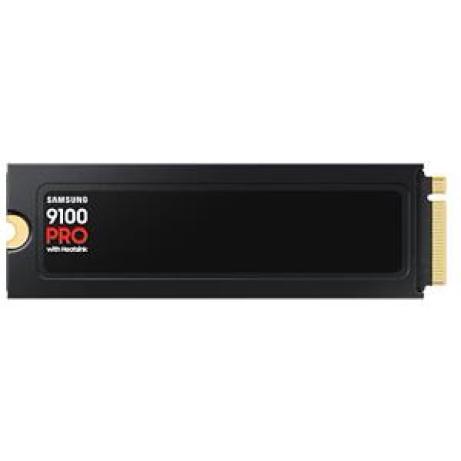

Samsung 9100 PRO with Heatsink 2000GB
Kapacita 2000GB; formát M.2; čtecí rychlost až 14700 MB/sec; zapisovací rychlost až 13400 MB/sec




Application Client PCs, Game Consoles
Capacity 2,000GB (1GB=1 Billion byte by IDEMA) * Actual usable capacity may be less (due to formatting, partitioning, operating system, applications or otherwise)
Form Factor M.2 (2280)
Interface PCIe® 5.0 x4, NVMe™ 2.0
Dimension (WxHxD) Max 80.15 x Max 25 x Max 8.88mm (with Heatsink)
Weight Max 30.0g Weight
Storage Memory Samsung V-NAND TLC
Controller Samsung in-house Controller
Cache Memory Samsung 2GB Low Power DDR4X SDRAM
TRIM Support Supported
S.M.A.R.T Support Supported
GC (Garbage Collection) Auto Garbage Collection Algorithm
Encryption Support AES 256-bit Encryption (Class 0)TCG/Opal IEEE1667 (Encrypted drive)
WWN Support Not supported
Device Sleep Mode Support Yes
Sequential Read Up to 14,700 MB/s * Performance may vary based on system hardware & configuration
Sequential Write Up to 13,400 MB/s * Performance may vary based on system hardware & configuration
Random Read Up to 1,850,000 IOPS * Performance may vary based on system hardware & configuration
Random Write Up to 2,600,000 IOPS * Performance may vary based on system hardware & configuration
Average Power Consumption (System Level) Average: Read 8.1 W / Write 7.9 W* Actual power consumption may vary depending on system hardware & configuration
Power Consumption (Idle) Typical 4.8 mW * Actual power consumption may vary depending on system hardware & configuration
Power Consumption (Device Sleep) Typical 4 mW * Actual power consumption may vary depending on system hardware & configuration
Allowable Voltage 3.3 V ± 5 % Allowable voltage
Reliability (MTBF) 1.5 Million Hours Reliability (MTBF)
Operating Temperature 0 - 70 ? Operating Temperature
Shock 1,500 G & 0.5 ms (Half sine)
